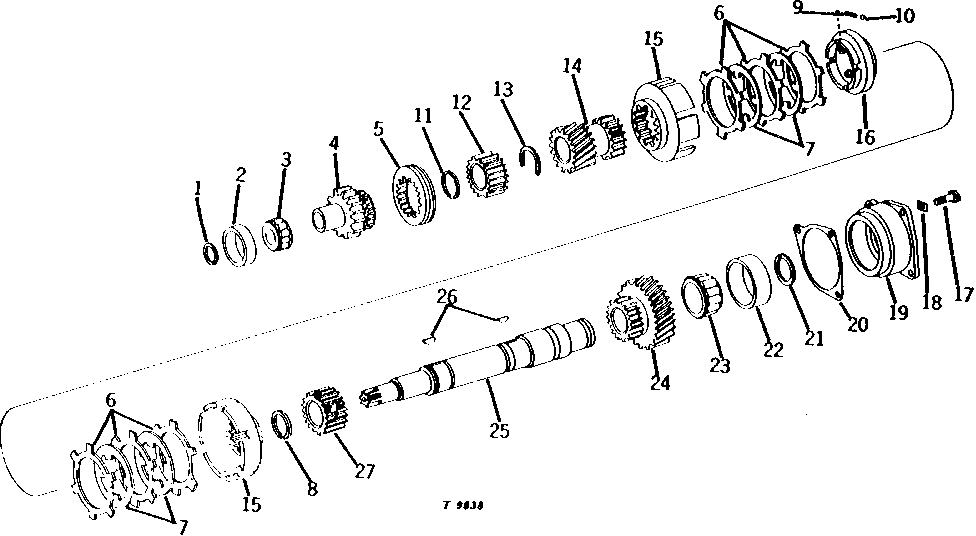

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [02C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26221	1	SNAP RING	(.079" THICK)
1	R26220	1	SNAP RING	(.076" THICK)
1	R26223	1	SNAP RING	(.085" THICK)
1	R26222	1	SNAP RING	(.082" THICK)
2	JD7449	1	Bearing Cup	-
3	JD8190	1	Bearing Cone	-
4	T47352	1	GEAR	REVERSE DRIVE, (SUB FOR T22017) (18 TEETH)
5	T69589	1	SHIFT COLLAR	REVERSE RANGE, SHIFTER, (SUB FOR T22016)
6	RE37119	1	DISK	DISK WITH FACINGS, (SUB FOR AT25029, AR44997 AND AR69154) (SET OF 3)
7	-	1	Part 10	(SUB RE37119)
8	R26218	1	Snap Ring	-
9	T26314	4	SPRING	-
10	A4742R	4	Ball	-
11	R33475	1	SNAP RING	-
12	T22015	1	STEERING GEAR	(24 TEETH) REVERSE RANGE SYNCHRONIZER DRIVE
13	R33476	1	SNAP RING	-
14	R59536	1	PINION	LOW RANGE, (SUB FOR R44640 AND R50367) (13 TEETH)
15	R31026	2	DRUM	(SUB FOR T17071) LOW AND HIGH RANGE
16	R31028	1	SYNCHRONIZER	LOW AND HIGH RANGE SYNCHRONIZER
17	19H2676	3	Cap Screw	3/8" X 1"
18	H246R	3	STRAP	-
19	R33514	1	HOUSING	FRONT BEARING
20	-	1	Part 23	(A) .15 MM (.006") ( R33467 NOT AVAILABLE)
20	-	1	Part 24	(A) .25 MM (.010") ( R33468 NOT AVAILABLE)
20	-	1	Part 25	(A) .46 MM (.018") ( R33469 NOT AVAILABLE)
21	R33471	1	SNAP RING	(.079" THICK)
21	R33473	1	SNAP RING	(.085" THICK)
21	R33472	1	SNAP RING	(.082" THICK)
21	R33470	1	SNAP RING	(.076" THICK)
22	JD7421	1	Bearing Cup	-
23	JD8910	1	BEARING CONE	-
24	R44639	1	PINION	HIGH-RANGE (21 TEETH)
25	T24159	1	SHAFT	TRANSMISSION DRIVE
26	26H77	2	Shaft Key	3/16" X 3/4"
27	R33383	1	SHIFT COLLAR	(SUB FOR R62806, THIS APPLICATION) (24 TEETH) LOW AND HIGH RANGE SYNCHRONIZER DRIVE

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [02C19]
