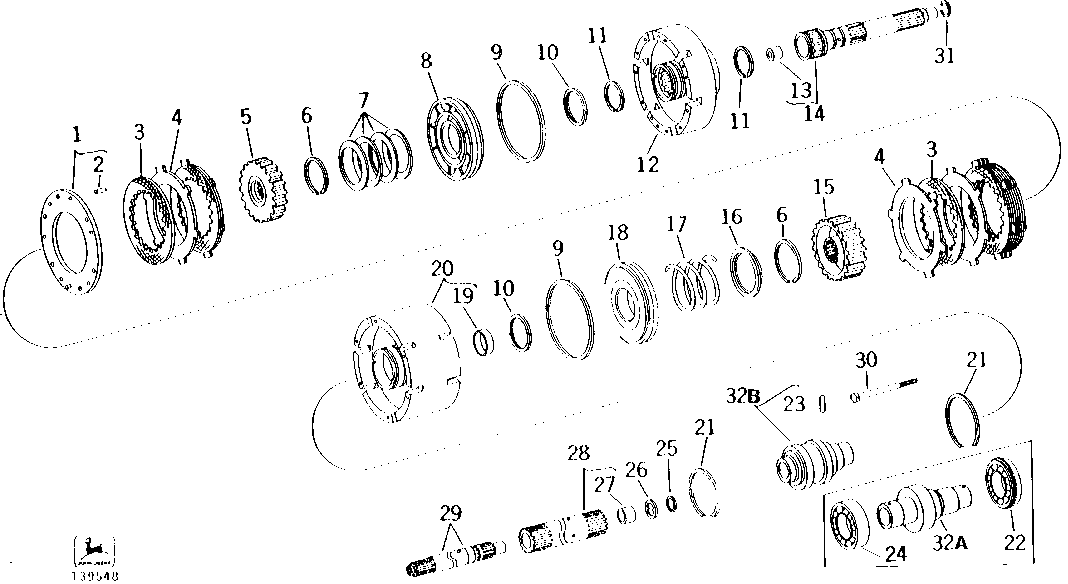

TRANSMISSION CLUTCH PACK (POWER-SHIFT TRANSMISSION) [02B20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR46233	1	PLATE	(B) CLUTCH SEPARATOR WITH PINS
2	R30587	2	Dowel Pin	(B)
3	AR69619	8	DISK	(B) CLUTCH DRIVE, WITH FACING, (SUB FOR R31404, THIS APPLICATION)
4	R80813	8	Clutch Plate	(B) (SUB FOR R33873)
5	AR103337	1	HUB	(B) LOW RANGE CLUTCH, (SUB FOR R44813 AND AR71824)
6	R33247	2	Snap Ring	(B)
7	R67840	4	Disk Spring	(B) (SUB FOR R33518) CLUTCH PINION RETURN
8	R42850	1	PISTON	(B) LOW RANGE CLUTCH
9	R41166	2	SEAL	(B)
10	R33246	2	Seal	(B)
11	R33169	2	Snap Ring	(B)
12	-	1	Part 12	WELLAND SERIAL NO. ( - 21152) CLUTCH FRONT ( AR46370, NO LONGER AVAILABLE) (SUB R59494, (4) R76514 AND R45621, THIS APPLICATION ONLY) (MARKED R44915)
12	R59494	1	DRUM	(B) WELLAND SERIAL NO. ( 21153- ) CLUTCH FRONT, (SUB FOR AR47629 AND R45623)
13	R33168	1	BUSHING	(B)
14	AR46369	1	SHAFT	(B) CLUTCH DRIVE, WITH BUSHING
15	AR103336	1	HUB	(B) HIGH RANGE CLUTCH, (SUB FOR R33184 AND AR71823)
16	R33114	1	ROUND RETAINER	(B) PISTON RETURN SPRING
17	R31359	1	SPRING	(B)
18	R41039	1	PISTON	(B) HIGH RANGE CLUTCH
19	R33073	1	BUSHING	(B)
20	AR71822	1	DRUM	(B) CLUTCH REAR, WITH BUSHING, (MARKED R59495) (SUB FOR AR46371 AND R44916)
21	F1373R	2	Snap Ring	-
22	JD8644	1	Ball Bearing	WELLAND SERIAL NO. ( -XXXXXX) (SUB FOR JD9265)
23	34H311	1	Spring Pin	WELLAND SERIAL NO. (XXXXXX- ) 1/4" X 7/8"
24	JD9390	1	BALL BEARING	(SUB FOR JD9279) WELLAND SERIAL NO. ( -XXXXXX)
25	R26643	1	Snap Ring	-
26	R33118	1	THRUST WASHER	-
27	R33109	1	BUSHING	-
28	AR46412	1	SHAFT	HIGH RANGE DRIVE, WITH BUSHING
29	R44814	1	SHAFT	LOW RANGE DRIVE
30	19H2704	6	Cap Screw	(B) 5/16" X 5-1/4"
31	T14648	1	SNAP RING	-
..	AR92572	1	CLUTCH	(SUB FOR AR52702)
32A	T29500	1	SHAFT	WELLAND SERIAL NO. ( -XXXXXX)
32B	AT43951	1	HOUSING	WELLAND SERIAL NO. (XXXXXX- ) WITH PINS (NO LONGER AVAILABLE, ORDER T45120 AND 34H311) (MARKED T45120)
