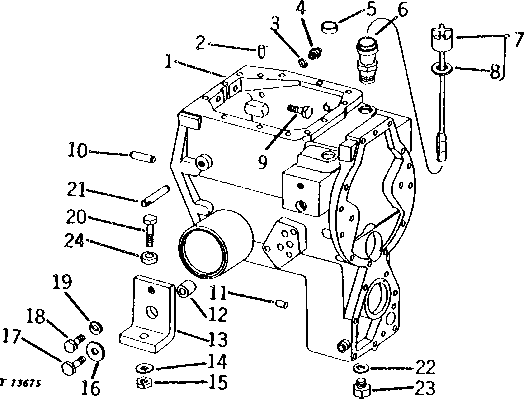

TRANSMISSION CASE (SYNCRO-RANGE TRANSMISSION) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT25583	1	TRANSMISSION CASE	(SUB FOR AT21763, AT25583, T24712 AND T27501) WELLAND SERIAL NO. ( 15149- 20221) (SUB AT25621 TRANSMISSION CASE, IF AVAILABLE, AND AT49097 TRANSMISSION OIL PUMP DISCHARGE TUBE)
1	-	1	Part 3	WELLAND SERIAL NO. ( 20222- ) WITH DOWEL, CLUTCH, PIVOT SHAFT AND RING, (MARKED T27541) ( AT25621 USE IF AVAILABLE)
1	AT21179	1	TRANSMISSION CASE	WELLAND SERIAL NO. ( 15148- ) (SUB AT25621 TRANSMISSION CASE, IF AVAILABLE, AT49097 TRANSMISSION OIL PUMP DISCHARGE TUBE AND AT21762 OUTPUT IDLER GEAR SHAFT AND OIL PUMP SCREEN SERVICE KIT)
2	R26650	2	Dowel Pin	-
3	R26287	1	O-Ring	-
4	R27527	1	ADAPTER FITTING	-
5	R35286	1	PLUG	-
6	R41883	1	TUBE	(SUB FOR R35152 AND R40603)
7	AT35202	1	ROD	OIL LEVEL, (SUB FOR AT18253)
8	R39520	1	WASHER	-
9	19H1356	2	CAP SCREW	5/8" X 1-3/4"
10	A776R	2	Pin	-
11	R28671	2	Dowel Pin	-
12	T20431	2	BUSHING	HOLLOW DOWEL
13	T20536	2	BRACKET	TRANSMISSION MOUNTING
14	T17776	2	Washer	(SUB FOR B3310R)
15	14H794	2	Nut	3/4"
16	R20135	2	Washer	-
17	19H2599	2	Cap Screw	5/8" X 2-1/2"
18	19H1734	2	Cap Screw	5/8" X 2"
19	R1836R	2	Washer	-
20	19H2431	2	CAP SCREW	(SUB FOR 19H1782) WELLAND SERIAL NO. ( - 18453) 3/4" X 2-1/2"
20	19H2411	2	Cap Screw	WELLAND SERIAL NO. ( 18454- ) 3/4" X 2-1/2"
21	T20430	1	PIN FASTENER	-
22	A4827R	1	Washer	(A) WELLAND SERIAL NO. ( 15149- )
23	R26727	1	DRAIN PLUG	(A) WELLAND SERIAL NO. ( 15149- ) (SUB FOR T25831)
24	T17776	2	Washer	WELLAND SERIAL NO. ( 18454- ) (SUB FOR B3310R)
..	AT21762	1	SHAFT	TRANSMISSION OUTPUT IDLER GEAR AND OIL PUMP

TRANSMISSION CASE (SYNCRO-RANGE TRANSMISSION) [02B07]
