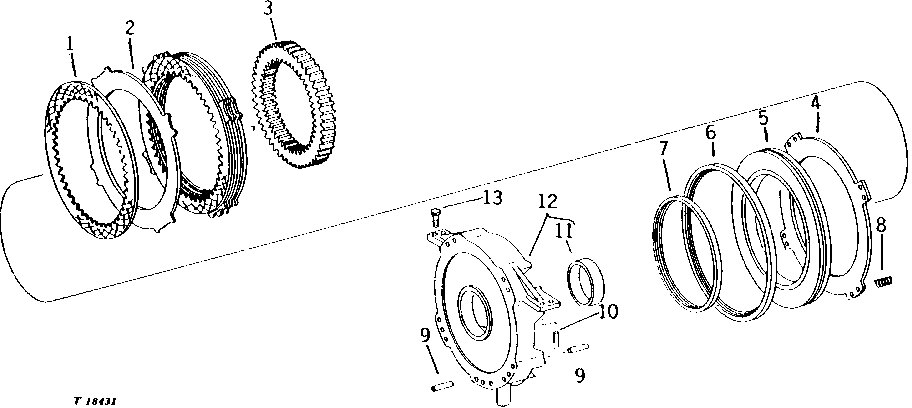

THIRD PLANETARY BRAKE AND CLUTCH PACK (POWER-SHIFT TRANSMISSION) [02B25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R227405	4	BRAKE DISK	(A) (C) (SUB FOR R33053) WITH FACING
2	R48236	3	Plate	(A) (C) SEPARATOR, (SUB FOR R33872)
3	R33052	1	GEAR	(A) THIRD RING PLANET, (95 TEETH)
3	R49261	1	GEAR	(C) THIRD RING PLANET (95 TEETH) (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
4	R48235	1	PLATE	(A) (C) BRAKE PISTON RETURN, (SUB FOR R33871)
5	R41378	1	PISTON	(A) (C)
6	R65480	1	PACKING	(A) (C) BRAKE PISTON, OUTER, (SUB FOR R44817)
7	R65478	1	PACKING	(A) (C) BRAKE PISTON, INNER, (SUB FOR R44815)
8	H343R	8	SPRING	(A) (C)
9	R36666	4	DOWEL PIN	(A) (C)
10	R33703	2	DOWEL PIN	(A) (C)
11	R33045	1	BUSHING	(A) (C)
12	AR40986	1	HOUSING	(A) (C) BRAKE PISTON, WITH BUSHINGS AND PINS THIRD PLANET, (MARKED R41377)
13	19H3205	2	Cap Screw	7/16" X 1-1/2"
..	AR53386	1	TRANSMISSION	(SUB AR83522)
..	AR83522	1	TRANSMISSION	(SUB AR52637)

THIRD PLANETARY BRAKE AND CLUTCH PACK (POWER-SHIFT TRANSMISSION) [02B25]

Нет текстового описания
