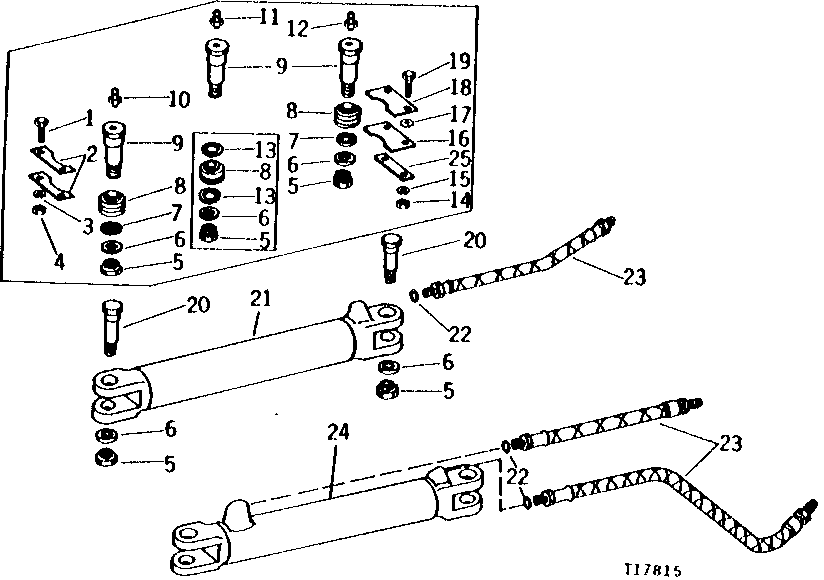

STEERING CYLINDERS (SYNCRO-RANGE TRANSMISSION) [02F23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3130	4	Cap Screw	WELLAND SERIAL NO. ( 18048- 19999) 5/16" X 1-3/4"
2	T24883	4	RETAINER	WELLAND SERIAL NO. ( 18048- 19999) BACKING REAR
3	12H303	4	Lock Washer	WELLAND SERIAL NO. ( 180480- 19999) 5/16"
4	14H785	4	Nut	WELLAND SERIAL NO. ( 18048- 19999) 5/16"
5	R45620	4	LOCK NUT	(SUB FOR F2439R AND R41198)
6	T19572	4	Washer	-
7	T24882	4	WASHER	WELLAND SERIAL NO. ( 18049- 19999)
8	AT40976	4	Bushing	WELLAND SERIAL NO. ( - 19999) SELF-ALIGNING, (SUB FOR T20514 AND T24759)
9	T22223	4	BOLT	WELLAND SERIAL NO. ( - 19999)
10	JD7759	2	Lubrication Fitting	WELLAND SERIAL NO. ( - 19999)
11	JD7781	1	Lubrication Fitting	WELLAND SERIAL NO. ( - 19999) 90°, 1/8" R.H.
12	JD7763	1	Lubrication Fitting	WELLAND SERIAL NO. ( - 19999) 45°, 1/8" L.H.
13	T17775	8	Washer	WELLAND SERIAL NO. ( - 18047)
14	14H812	4	NUT	WELLAND SERIAL NO. ( 18048- 19999) 3/8"
15	12H304	4	Lock Washer	WELLAND SERIAL NO. ( 18048- 19999) 3/8"
16	T24884	4	RETAINER	WELLAND SERIAL NO. ( 18048- 19999) FRONT
17	28H856	4	Washer	WELLAND SERIAL NO. ( 18048- 19999) 0.423" X 0.675" X 3/16", (SUB FOR P47289)
18	T24884	4	RETAINER	WELLAND SERIAL NO. ( 18048- 19999) FRONT
19	19H3065	4	Cap Screw	WELLAND SERIAL NO. ( 18048- 19999) 3/8" X 2"
20	T26027	4	PIN FASTENER	WELLAND SERIAL NO. ( 20000- )
21	-	1	Part 21	( AT20103 NO LONGER AVAILABLE)
22	R26375	3	O-Ring	-
23	T22012	3	HYDRAULIC HOSE - FABRICATE	436 MM (3/4" X 17-1/4")
24	-	1	Part 24	( AT20102 NO LONGER AVAILABLE, SUB COMPONENTS)
25	-	2	Part 25	WELLAND SERIAL NO. ( 18048- 19999) ( J18755 NO LONGER AVAILABLE)
