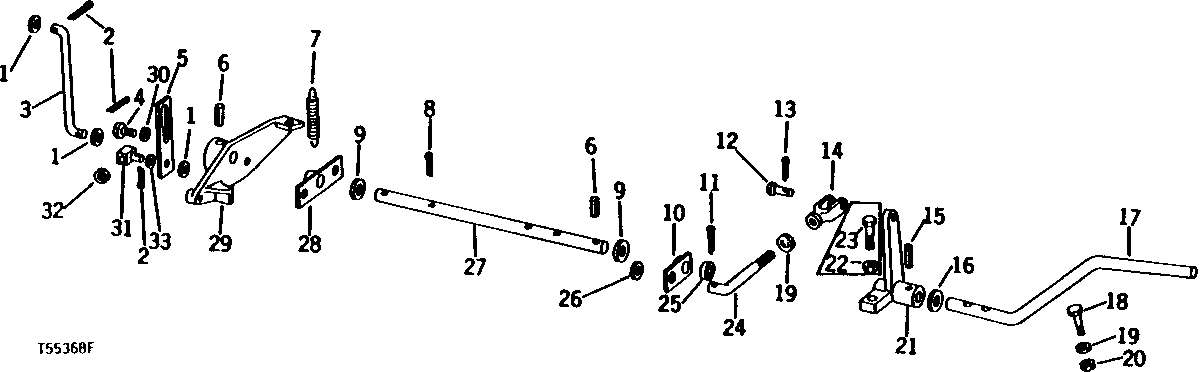

SPEED CONTROL SHAFT AND LINKAGE (SYNCRO-RANGE TRANSMISSION) [01D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1286	2	Washer	9/32" X 1/2" X 1/16"
2	11M7081	3	Cotter Pin	2.500 X 20 MM
3	R37453	1	ROD	-
4	19H2664	1	Cap Screw	5/16" X 3/4"
5	R37452	1	ARM	( R37452 NO LONGER AVAILABLE)
6	34H312	2	Spring Pin	1/4" X 1"
7	R1696R	1	SPRING	(SUB FOR R31877, THIS APPLICATION)
8	11M7021	3	Cotter Pin	4 X 25 MM
9	D2491R	2	SHIM	-
10	AR37032	1	ARM	-
11	11M7015	2	Cotter Pin	3.200 X 25 MM
12	C1067R	1	PIN FASTENER	(USE IF AVAILABLE)
12	R65563	1	Pin Fastener	(SUB FOR C1067R)
13	11M7082	1	Cotter Pin	2.500 X 25 MM
14	C284R	1	Yoke	-
15	34H313	1	Spring Pin	1/4" X 1-1/8"
16	24H1338	1	Washer	WELLAND SERIAL NO. ( 18386- ) 33/64" X 7/8" X 0.48"
16	24H1227	1	Washer	WELLAND SERIAL NO. ( - 18385) 17/32" X 13/16" X 0.060"
17	T30108	1	ROD	(SUB FOR T22185)
18	19H3239	1	Cap Screw	3/8" X 1-1/4"
19	14H732	2	Nut	3/8"
20	14H812	1	NUT	3/8"
21	T22186	1	ARM	-
22	14H611	1	Nut	WELLAND SERIAL NO. ( - 20546) 5/16"
23	19H2849	1	Cap Screw	WELLAND SERIAL NO. ( - 20546) 5/16" X 1-3/4", (SUB FOR F2271R)
24	T22184	1	BOLT	-
25	R34811	2	GROMMET	-
26	24H1302	1	Washer	13/32" X 11/16" X 0.035"
27	R37457	1	SHAFT	-
28	AR37031	1	ARM	-
29	R37458	1	ARM	-
30	12H303	1	Lock Washer	5/16"
31	T48835	1	SWIVEL	(SUB FOR T22242) (ALSO ORDER 24H1287 WASHER)
32	14H850	2	NUT	1/4"
33	24H1287	1	Washer	9/32" X 5/8" X 0.065", (USE WITH T48835)
