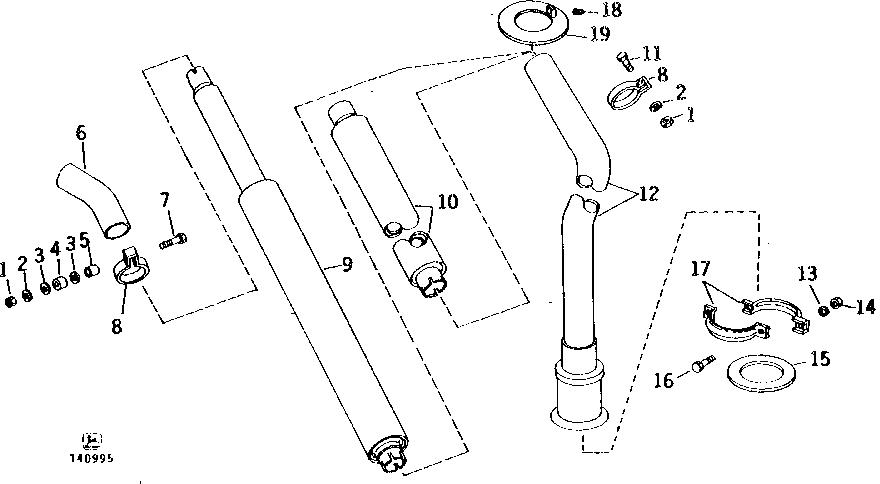

SHIELDED EXHAUST AND SPARK ARRESTING MUFFLER ASSEMBLY [01D09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	2	Nut	-
2	12H303	2	Lock Washer	5/16"
3	24M7207	2	Washer	8.400 X 24 X 2 MM
4	28H86	1	Washer	0.364" X 0.540" X 5/16"
5	-	1	Part 5	( 28H1918 NO LONGER AVAILABLE)
6	T22723	1	DEFLECTOR	WELLAND SERIAL NO. ( -XXXXXX)
6	T25025	1	EXHAUST PIPE	WELLAND SERIAL NO. (XXXXXX- 21299) (WITHOUT TURBOCHARGER)
6	T25025	1	EXHAUST PIPE	(WITH TURBOCHARGER)
6	T34849	1	EXHAUST PIPE	(WITHOUT TURBOCHARGER)
7	19H3636	1	Cap Screw	WELLAND SERIAL NO. ( - 21299) 5/16" X 2-1/2"
7	19H1907	1	Cap Screw	WELLAND SERIAL NO. (-21300- ) 5/16" X 2-3/4"
8	T14978	2	CLAMP	-
9	AT24370	1	MUFFLER	WELLAND SERIAL NO. ( -XXXXXX) (SUB AT33686 MUFFLER, AT22882 SHIELD AND T34849 DEFLECTOR THIS APPLICATION ONLY)
9	AT24370	1	MUFFLER	WELLAND SERIAL NO. (XXXXXX- 21299) (SUB AT33686 MUFFLER AND T34849 DEFLECTOR THIS APPLICATION ONLY)
9	AT33686	1	SPARK ARRESTING MUFFLER	-
10	T30218	1	EXHAUST PIPE	(WITH TURBOCHARGER)
10	-	1	Part 17	WELLAND SERIAL NO. (XXXXXX- 21299) (SUB FOR T21492) (SUB AT33689 MUFFLER AND T34849 DEFLECTOR THIS APPLICATION ONLY) (WITHOUT TURBOCHARGER)
10	AT33689	1	MUFFLER	WELLAND SERIAL NO. ( 21300- ) (WITHOUT TURBOCHARGER)
10	-	1	Part 16	WELLAND SERIAL NO. ( -XXXXXX) (SUB FOR T21492) (SUB AT33689 MUFFLER, AT22882 SHIELD AND T34849 DEFLECTOR THIS APPLICATION ONLY) (WITHOUT TURBOCHARGER)
11	19H1849	1	Cap Screw	5/16" X 1-1/4"
12	AT20117	1	EXHAUST PIPE	WELLAND SERIAL NO. ( - 21299) (WITHOUT TURBOCHARGER) (SUB AT33936)
12	AT33936	1	EXHAUST PIPE	(WITHOUT TURBOCHARGER)
12	AT28930	1	EXHAUST PIPE	(WITH TURBOCHARGER)
13	12H304	2	Lock Washer	WELLAND SERIAL NO. ( - 18360) 3/8"
13	12H303	2	Lock Washer	WELLAND SERIAL NO. ( 18361- ) 5/16"
14	14H785	2	Nut	WELLAND SERIAL NO. ( 18361- ) 5/16" (USE WITH T19978)
15	R98844	1	GASKET	(SUB FOR T20141)
16	19H3239	2	Cap Screw	WELLAND SERIAL NO. ( - 18360) 3/8" X 1-1/4"
16	19H3552	2	Cap Screw	WELLAND SERIAL NO. ( 18361- ) 5/16" X 1-1/2"
17	AT63813	2	HALF CLAMP	(SUB FOR T19978)
18	T35724	1	SCREW	-
19	AT42825	1	COVER	(WITH TURBOCHARGER)
19	AT41551	1	COVER	(WITHOUT TURBOCHARGER)
