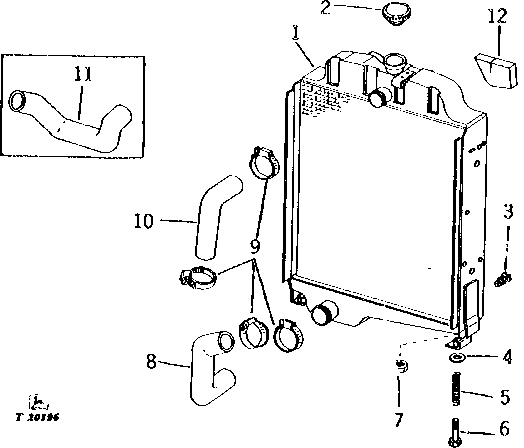

RADIATOR ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [01D20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT24876	1	RADIATOR	WELLAND SERIAL NO. ( 20000- 21299) (SUCTION FAN) (SUB AT33845 RADIATOR, T34724 ROD, T34723 ROD, 19H1944 CAP SCREW, (8) 24H1307 WASHERS, (2) 24H1309 WASHERS, 14H812 NUT, (2) 19H1741 CAP SCREWS, 14H732 NUT, (8) 24H1341 WASHERS AND (2) 12H301 LOCK WASHERS)
1	AT33845	1	RADIATOR	WELLAND SERIAL NO. ( -169404) (SUCTION FAN) (SUB AT39071)
1	AT39071	1	RADIATOR	(SUCTION FAN)
1	AT25281	1	RADIATOR	WELLAND SERIAL NO. ( 20917- 21299) (BLOWER FAN) (SUB AT33847 RADIATOR, T34724 ROD, 19H1944 CAP SCREW, (8) T34723 ROD, 24H1307 WASHERS, (2) 24H1309 WASHERS, 14H812 NUT (2) 19H1741 CAP SCREWS, 14H732 NUT, (8) 24H1341 WASHERS AND (2) 12H301 LOCK WASHERS)
1	AT33847	1	RADIATOR	WELLAND SERIAL NO. ( -169404) (BLOWER FAN) (SUB AT39071)
1	AT39071	1	RADIATOR	(BLOWER FAN)
1	AT20730	1	RADIATOR	WELLAND SERIAL NO. ( - 19999) (SUB AT33847 RADIATOR, (2) T26852 GRILLE HOUSING PLATES, (4) 19H2735 CAP SCREWS, T34724 ROD, T34723 ROD, 19H2732 CAP SCREWS, (8) 24H1307 WASHERS, (2) 24H1309 WASHERS, 14H812 NUT, (2) 19H1741 CAP SCREWS, 14H732 NUT, (8) 24H1341 WASHERS, AND (2) 12H301 LOCK WASHERS)
2	AT165587	1	FILLER CAP	(SUB FOR AR27868)
3	AT13740	1	Drain Valve	-
4	T22381	2	Washer	-
5	R62372	1	Spring	WELLAND SERIAL NO. ( - 20971) (SUB FOR R34352) (SUB (2) U10520 AND (2) 19H3445, THIS APPLICATION)
5	U10520	2	COMPRESSION SPRING	(SUB FOR T19525)
5	T13948	2	SPRING	WELLAND SERIAL NO. ( 20972- )
6	19H1912	2	Cap Screw	WELLAND SERIAL NO. ( - 20971) 3/8" X 3-1/2"
6	19H2458	2	Cap Screw	WELLAND SERIAL NO. ( 20972- ) 3/8" X 3"
6	19H3445	2	Cap Screw	3/8" X 3-3/4"
7	14H732	2	Nut	3/8"
8	T22500	1	HOSE	LOWER (DIESEL)
8	T22497	1	HOSE	WELLAND SERIAL NO. ( - 19999 LOWER (GASOLINE)
9	AR21840	4	Hose Clamp	-
10	T21124	1	HOSE	WELLAND SERIAL NO. ( 20000- ) UPPER (DIESEL)
11	T23533	1	HOSE	WELLAND SERIAL NO. ( - 19999) UPPER (DIESEL)
11	T22496	1	HOSE	WELLAND SERIAL NO. ( - 19999) UPPER (GASOLINE)
12	-	1	Part 24	-
..	T11847	1	SEALANT	SUMMER, 1191 GM (42 OZ.) (NO LONGER AVAILABLE)
..	T19566	1	COOLANT	-

RADIATOR ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [01D20]

Нет текстового описания
