Открытый узел

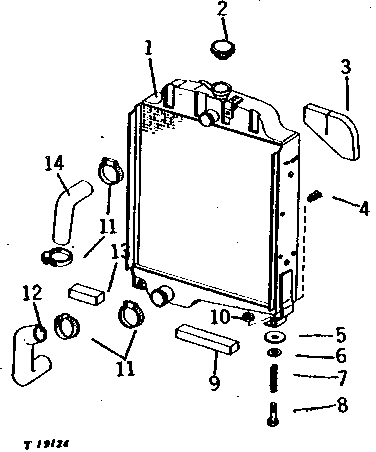

RADIATOR ASSEMBLY (POWERSHIFT TRANSMISSION) [01D19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT33841	1	RADIATOR	WELLAND SERIAL NO. ( 21300-169404) (SUCTION FAN) (SUB AT39067)
1	AT39067	1	RADIATOR	WELLAND SERIAL NO. (169405- )
1	AT30680	1	RADIATOR	WELLAND SERIAL NO. ( - 21299) (BLOWER FAN) (SUB AT42555 RADIATOR, T34723 ROD, T34724 ROD, 19H1944 CAP SCREW, (8) 24H1307 WASHERS, (2) 24H1309 WASHERS, 14H812 NUT, (2) 19H1741 CAP SCREWS, 14H732 NUT, (8) 24H1341 WASHERS AND (2) 12H301 LOCK WASHERS)
1	AT42555	1	RADIATOR	WELLAND SERIAL NO. ( 21300- ) (BLOWER FAN) (SUB FOR AT33843)
1	AT27270	1	RADIATOR	WELLAND SERIAL NO. ( - 21299) (SUCTION FAN) (SUB AT33841 RADIATOR, T34723 ROD, T34724 ROD, 19H2732 CAP SCREW, (8) 24H1307 WASHERS, (2) 24H1309 WASHERS, 14H812 NUT, (2) 19H1741 CAP SCREWS, 14H732 NUT, (8) 24H1341 WASHERS, AND (2) 12H301 LOCK WASHERS)
2	AT165587	1	FILLER CAP	(SUB FOR AR27868)
3	T31623	1	STRIP	(BLOWER FAN)
4	AT13740	1	Drain Valve	-
5	T22381	2	Washer	-
6	24M7101	2	Washer	11 X 34 X 3 MM
7	T13948	2	SPRING	WELLAND SERIAL NO. ( 20972- )
7	U10520	2	COMPRESSION SPRING	(SUB FOR T19525)
7	R62372	1	Spring	WELLAND SERIAL NO. ( - 20971) (SUB FOR R34352) (SUB (2) U10520 AND (2) 19H3445, THIS APPLICATION)
8	19H1912	2	Cap Screw	3/8" X 3-1/2", WELLAND SERIAL NO. ( - 20971)
8	19H3445	2	Cap Screw	3/8" X 3-3/4"
8	19H2458	2	Cap Screw	3/8" X 3", WELLAND SERIAL NO. ( 20972- )
9	T33271	1	ISOLATOR	WELLAND SERIAL NO. ( 21195- )
10	14H732	2	Nut	3/8"
11	AR21840	4	Hose Clamp	-
12	T29416	1	Hose	LOWER
13	T33270	1	ISOLATOR	WELLAND SERIAL NO. ( 21195- )
14	T29415	1	Radiator Hose	UPPER
..	T11847	1	SEALANT	(NO LONGER AVAILABLE)
..	T19566	1	COOLANT	SUMMER, 1 191 GM (42 OZ.)

RADIATOR ASSEMBLY (POWERSHIFT TRANSMISSION) [01D19]

Нет текстового описания
