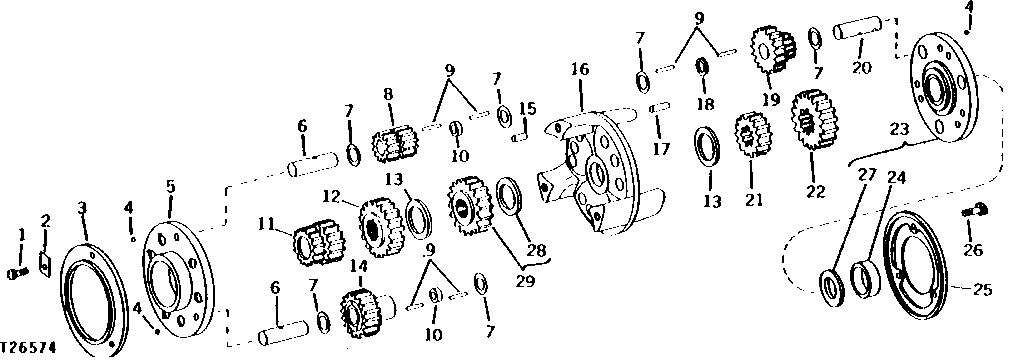

PLANETARY ASSEMBLY (POWER-SHIFT TRANSMISSION) [02B22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34583	3	CAP SCREW	(A) (C)
2	R1888R	3	STRAP	(A) (C)
3	R33082	1	RETAINER	(A) (C) PLANET PINION SHAFT, REAR
4	H871R	9	Ball	(A) (C)
5	R33011	1	COVER	(A) (C) PINION CARRIER, REAR
6	R33093	6	SHAFT	(A) (C)
7	R66197	18	Thrust Washer	(A) (C) (SUB FOR R33087 AND R43216)
8	R33085	3	PINION	(A) THIRD PLANET
8	R49259	3	PINION	(C) THIRD PLANET (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
9	R33058	558	NEEDLE ROLLER	(A) (C)
10	R33094	6	WASHER	(A) (C)
11	R33112	1	PINION	(A) FOURTH PLANET SUN
11	R49258	1	PINION	(C) FOURTH PLANET SUN (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
12	R48109	1	PLANET PINION	(A) (C) THIRD PLANET (USED WHEN AR83522 HAS NOT BEEN INSTALLED) (SUB FOR R33092)
13	R33083	2	Washer	(A) (C)
14	R33086	3	PINION	(A) FOURTH PLANET
14	R49260	1	PINION	(C) FOURTH PLANET (USE WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
15	R33089	3	BUSHING	(A) (C)
16	R49263	1	PLANET PINION CARRIER	(C) (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
16	R33009	1	PLANET PINION CARRIER	(A) (SUB FOR AR34043) (ALSO ORDER (3) R26650 AND (3) R33089) (PLANET PINION, WITH DOWELS AND PINS)
17	R26650	3	Dowel Pin	(A) (C)
18	R33088	3	Washer	(A) (C)
19	AR49532	1	PINION	(A) FIRST AND SECOND PLANET (SET OF (3) R47045) (SUB FOR AR40518) (SUB AR55423)
19	AR55423	1	PINION	(C) FIRST AND SECOND PLANET (SET OF (3) R51303) (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
20	R38193	3	SHAFT	(A) (C)
21	R33091	1	PLANET PINION	(A) (C) SECOND PLANET SUN
22	R33588	1	PLANET PINION	(A) (C) FIRST PLANET SUN
23	AR40985	1	COVER	WELLAND SERIAL NO. ( - 21347) FRONT WITH BUSHINGS, (MARKED R41373) (SUB AR52929)
23	AR52929	1	COVER	(A) (C) FRONT WITH BUSHINGS, (MARKED R49371)
24	R33008	1	BUSHING	WELLAND SERIAL NO. ( - 21347) (SUB R49372)
24	R49372	1	Bushing	(A) (C)
25	R51718	1	RETAINER	(A) (C) PLANET PINION SHAFT, FRONT, (SUB FOR R33081)
26	R46567	3	Screw	(A) (C) (SUB FOR R63300, THIS APPLICATION)
27	R49370	1	WASHER	(A) (C) WELLAND SERIAL NO. ( 21348- )
28	-	1	Part 35	(SUB AR52728)
29	AR52728	1	PINION	(C) THIRD SUN WITH THRUST WASHER (USED WHEN AR83522 HAS BEEN INSTALLED AS A REPLACEMENT PART)
..	AR53038	1	GEAR	(SUB AR83522, THIS APPLICATION)
..	AR53386	1	TRANSMISSION	(SUB AR83522) SUB.
..	AR83522	1	TRANSMISSION	(SUB AR52637)

PLANETARY ASSEMBLY (POWER-SHIFT TRANSMISSION) [02B22]
