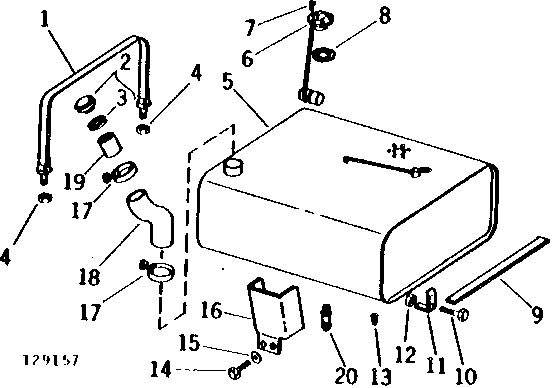

FUEL TANK (SYNCRO-RANGE TRANSMISSION) [01E11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT20097	2	STRAP	-
2	AT20911	1	FILLER CAP	(SUB FOR AR39595)
3	R39615	1	WASHER	-
4	14H812	2	NUT	3/8"
5	AT24759	1	FUEL TANK	WELLAND SERIAL NO. ( - 21411) (SUB AT34682 AND AT29888) (SUB FOR T22246 AND AT21874)
5	AT34682	1	FUEL TANK	WELLAND SERIAL NO. ( 21412- )
6	AB5139R	1	SENDER	WELLAND SERIAL NO. ( - 21383) (SUB AT36102)
6	AT36102	1	SENDER	-
7	37H47	5	SCREW	NO. 8 X 1/2", (SUB FOR T12253)
8	R27181	1	GASKET	-
9	T28855	2	ISOLATOR	-
10	19H2732	2	Cap Screw	3/8" X 2-3/4"
11	T22251	2	RETAINER	WELLAND SERIAL NO. ( - 19999)
11	T26028	2	RETAINER	WELLAND SERIAL NO. ( 20000- ) ( T26028 NO LONGER AVAILABLE)
12	T11234	2	Lock Nut	-
13	15H583	1	PIPE PLUG	WELLAND SERIAL NO. ( -XXXXXX) 3/8"
14	19H2898	2	Cap Screw	1/2" X 1-1/4", (WITH WINCH)
15	12H301	2	Lock Washer	1/2", (WITH WINCH)
16	AT20096	1	SHIELD	(WITH WINCH)
17	AR21999	2	Hose Clamp	-
18	T22247	1	HOSE	(WITH WINCH)
18	R26531	1	HOSE	(WITHOUT WINCH)
19	R39895	1	FILLER NECK	-
20	AT13740	1	Drain Valve	WELLAND SERIAL NO. ( 21412- ) (ALSO ORDER 15H642 BUSHING) (SUB FOR AT29888)

FUEL TANK (SYNCRO-RANGE TRANSMISSION) [01E11]
