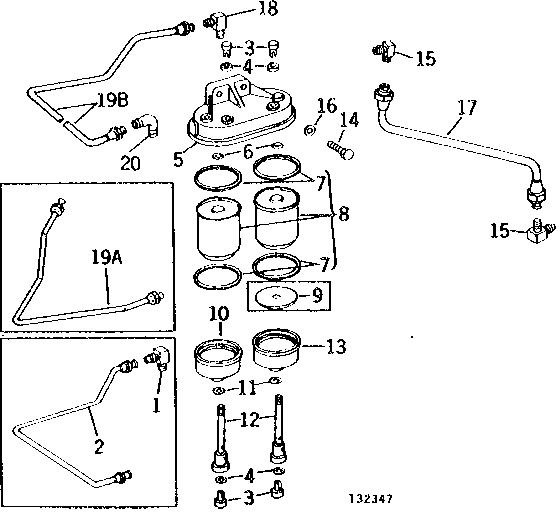

FUEL FILTER ASSEMBLY (DIESEL) (SERIAL NO. -192321) [01F01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30738	1	ELBOW FITTING	WELLAND SERIAL NO. ( - 18413) (SUB FOR AR26674, THIS APPLICATION)
2	AT18145	1	FUEL LINE	WELLAND SERIAL NO. ( - 18413)
3	R34446	4	DRAIN PLUG	-
4	R26287	4	O-Ring	-
5	-	1	Part 5	( AT17389 NO LONGER AVAILABLE)
6	T19118	2	O-RING	-
7	T19114	4	GASKET	(SUB R64374 FOR UPPER LOCATION AND R64373 FOR LOWER LOCATION)
7	R64374	2	WASHER	UPPER LOCATION
7	R64374	2	WASHER	LOWER LOCATION, (SUB FOR R64373)
8	AT17387	2	FILTER ELEMENT	-
9	T19120	1	SCREEN	WELLAND SERIAL NO. ( - 21194) (NO LONGER AVAILABLE)
10	T19121	1	CONTAINER	(SUB T19119)
11	T19117	2	WASHER	-
12	T32365	2	SCREW	(SUB FOR AT17388)
13	T19119	1	SEDIMENT BOWL	-
14	19H3239	2	Cap Screw	3/8" X 1-1/4"
15	T30738	2	ELBOW FITTING	(SUB FOR AR26674, THIS APPLICATION) 90°
16	24M7096	2	Washer	0.413" X 0.709" X 0.063"
17	AT18167	1	FUEL LINE	-
18	AR26674	1	ELBOW FITTING	WELLAND SERIAL NO. ( - 18413) (SUB T30738, THIS APPLICATION)
18	T13201	1	ELBOW FITTING	WELLAND SERIAL NO. ( 18414- 21299)
18	T30738	1	ELBOW FITTING	WELLAND SERIAL NO. ( 18414- 21299) (USE WHEN AR69819, AR69823, OR AR69824 REPLACEMENT PUMP HAS BEEN INSTALLED)
18	T30738	1	ELBOW FITTING	WELLAND SERIAL NO. ( 21300- ) (SUB FOR AR26674, THIS APPLICATION)
20	R48008	1	ELBOW FITTING	WELLAND SERIAL NO. ( 18414- 21299) (USE WHEN AR69819, AR69823, OR AR69824 REPLACEMENT PUMP HAS BEEN INSTALLED)
20	R48008	1	ELBOW FITTING	WELLAND SERIAL NO. ( 21300- )
19A	AT21844	1	LINE	WELLAND SERIAL NO. ( 18414- 21299)
19A	AR50896	1	FUEL LINE	WELLAND SERIAL NO. ( 18414- 21299) (USE WHEN AR69819, AR69823, OR AR69824 REPLACEMENT PUMP HAS BEEN INSTALLED)
19B	AR50896	1	FUEL LINE	WELLAND SERIAL NO. ( 21300- )
