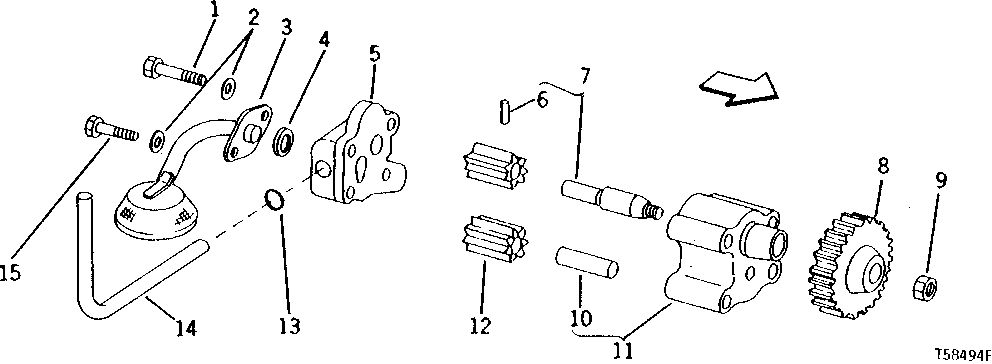

ENGINE OIL PUMP (SERIAL NO. 163825- ) [01C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R57059	2	CAP SCREW	(C)
2	12H304	4	Lock Washer	(C) 3/8"
3	RE36425	1	Oil Pump Intake	(A) (C) (SUB FOR AR60701)
4	A4730R	1	O-Ring	(A) (C)
5	R53382	1	COVER	(A) (C)
6	34H280	1	Spring Pin	(SUB FOR M3853T, THIS APPLICATION) 3/16" X 7/8"
7	AT18126	1	DRIVE SHAFT	WELLAND SERIAL NO. ( -169404)
7	AR62978	1	PINION	WELLAND SERIAL NO. (169405- )
8	T20298	1	Gear	(33 TEETH)
9	14H826	1	Nut	1/2"
10	T20091	1	DOWEL PIN	-
11	AT32606	1	HOUSING	WELLAND SERIAL NO. ( - 16904) WITH IDLER SHAFT. (MARKED T20078) (SUB RE55343 AND R113752) (FOR UNITS BELOW WITH ENGINE SERIAL NO. 215238, ALSO ORDER R83169 RELIEF VALVE, T27658 SPRING AND T27657 PLUG)
11	AR62979	1	HOUSING	(C) WELLAND SERIAL NO. (169405- ) (MARKED R54615) (SUB RE35685 AND R113752)
12	T20097	1	GEAR	WELLAND SERIAL NO. ( -169404) (7 TEETH)
12	R54614	1	GEAR	WELLAND SERIAL NO. (169405- ) (7 TEETH)
13	R27166	1	O-Ring	(A) (C)
14	T20050	1	OIL TUBE	-
15	R59409	2	Screw	(A) (C) (SUB FOR 19H3404, THIS APPLICATION)
..	AR67670	1	KIT	(SUB RE55345 AND R113752) OIL PUMP PICKUP
..	AR67074	1	OIL PUMP	(SUB RE55343 AND R113752)
