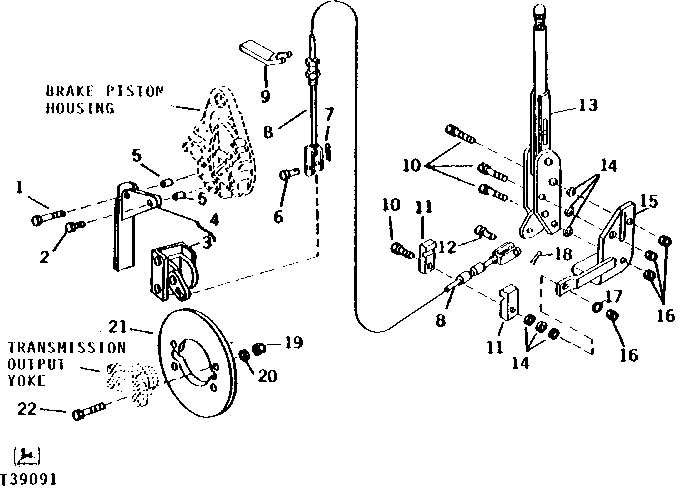

EMERGENCY BRAKE (SYNCRO-RANGE TRANSMISSION) [02J14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3550	1	Cap Screw	1/2" X 4"
2	19H3483	1	Cap Screw	3/8" X 1-1/8"
3	-	1	Part 3	( AT44457 NO LONGER AVAILABLE)
4	AT44456	1	BRACKET	-
5	T45683	2	BUSHING	(HAYES-DANA)
6	R662R	1	PIN FASTENER	-
7	11M7082	1	Cotter Pin	2.500 X 25 MM
8	AT44458	1	CABLE	-
9	T45688	1	SUPPORT	-
10	19H1726	4	Cap Screw	3/8" X 2-1/4"
11	T33483	2	CLAMP	-
12	A345R	1	PIN FASTENER	-
13	AT65326	1	HANDBRAKE LEVER	(SUB FOR AT43876)
14	24H1219	6	Washer	7/16" X 1" X 0.083"
15	-	1	Part 15	( AT44459 NO LONGER AVAILABLE)
16	14H812	4	NUT	3/8"
17	12H304	1	Lock Washer	3/8"
18	11M7081	1	Cotter Pin	2.500 X 20 MM
19	T45684	4	NUT	(HAYES-DANA)
19	14H934	4	Nut	7/16", (ROCKWELL-STANDARD)
20	T497T	4	WASHER	(HAYES-DANA)
20	T19561	4	Washer	(ROCKWELL-STANDARD)
21	T45682	1	DISK	-
22	T66731	4	SCREW	(SUB FOR T45169)
..	AT44455	1	BRAKE	(INCLUDES T23735 OIL PUMP COVER GASKET FOR UNITS WITH SERIAL NO. ( -15148) AND T27044 OIL PUMP COVER GASKET FOR UNITS WITH SERIAL NO. (15149- )

EMERGENCY BRAKE (SYNCRO-RANGE TRANSMISSION) [02J14]
