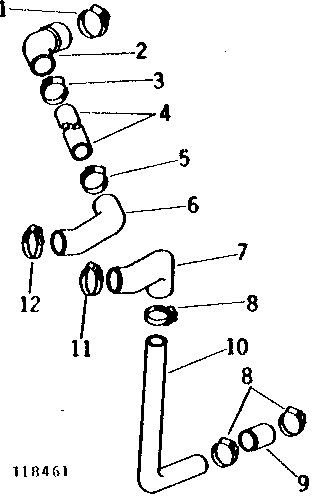

DRY TYPE AIR CLEANER HOSES AND PIPES (SYNCRO-RANGE TRANSMISSION) [01D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21999	1	Hose Clamp	REAR (DIESEL) (WITHOUT TURBOCHARGER)
2	T21699	1	HOSE	WELLAND SERIAL NO. ( - 19999) REAR (DIESEL)
2	T26338	1	HOSE	WELLAND SERIAL NO. ( 20000- ) REAR (DIESEL) (WITHOUT TURBOCHARGER)
3	AR21999	1	Hose Clamp	(DIESEL)
4	T21726	1	TUBE	WELLAND SERIAL NO. ( - 19999) (DIESEL)
4	T26339	1	TUBE	WELLAND SERIAL NO. ( 20000- ) (DIESEL) (WITHOUT TURBOCHARGER)
5	AR21999	1	Hose Clamp	(DIESEL) (WITHOUT TURBOCHARGER)
6	T25036	1	HOSE	WELLAND SERIAL NO. ( - 19999) FRONT (DIESEL)
6	T26340	1	HOSE	WELLAND SERIAL NO. ( 20000- ) FRONT (DIESEL) (WITHOUT TURBOCHARGER)
7	T25033	1	HOSE	WELLAND SERIAL NO. ( - 19999) FRONT (GASOLINE)
8	AR21840	3	Hose Clamp	WELLAND SERIAL NO. ( - 19999) (GASOLINE)
9	R56551	1	Hose	WELLAND SERIAL NO. ( - 19999) REAR (GASOLINE) (SUB FOR T21703)
10	T21701	1	PIPE	WELLAND SERIAL NO. ( - 19999) (GASOLINE)
11	AR21999	1	Hose Clamp	WELLAND SERIAL NO. ( - 19999) (GASOLINE)
12	AR21999	1	Hose Clamp	(DIESEL)

DRY TYPE AIR CLEANER HOSES AND PIPES (SYNCRO-RANGE TRANSMISSION) [01D03]
