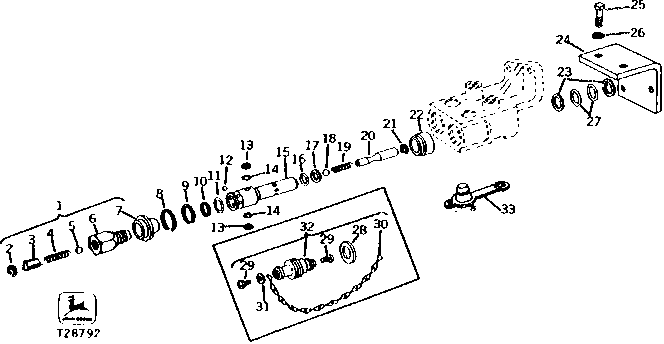

BREAKAWAY COUPLER PLUG AND SUPPORT (SYNCRO-RANGE TRANSMISSION) [02J02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR93819	2	HYDR.QUICK COUPLER PLUG	(SUB FOR AR30210, THIS APPLICATION)
2	R59633	1	WEAR RING	(SUB FOR R28204) (SUB AR93819, THIS APPLICATION)
3	R28085	1	GUIDE	(SUB AR93819, THIS APPLICATION)
4	R28084	2	SPRING	(SUB AR93819, THIS APPLICATION)
5	D2361R	2	Ball	1/2", (SUB AR93819, THIS APPLICATION)
6	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819, THIS APPLICATION)
7	R28006	2	CAP	(NOT INCLUDED IN AR93819)
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	R26485	2	BACK-UP RING	-
11	R495R	2	O-Ring	-
12	400R	12	Ball	1/4"
13	R26484	4	Back-Up Ring	-
14	A3917R	4	O-Ring	-
15	R34397	2	SOCKET OUTLET	-
16	R375R	2	O-Ring	-
17	R26482	2	Ring	-
18	D2361R	2	Ball	1/2"
19	R28084	2	SPRING	-
20	R34400	2	PLUG	-
21	R26483	2	SNAP RING	-
22	R34398	2	SLEEVE	-
23	R26480	4	BACK-UP RING	-
24	T25377	1	SUPPORT	(SUB FOR T22274)
25	19H2898	2	Cap Screw	1/2" X 1-1/4"
26	12H301	2	Lock Washer	1/2"
27	A4730R	4	O-Ring	-
28	R34589	2	WASHER	(USE WITH AR52623)
29	37H92	4	SCREW	NO. 12 X 1/2", (SUB FOR A4322R) (USE WITH AR52623)
30	R49193	2	Link Chain	(SUB FOR A3184R) (USE WITH AR52623)
31	24H1286	1	Washer	9/32" X 1/2" X 1/16", (USE WITH AR52623)
32	AR52623	2	PLUG	(SUB FOR AR34059) (SUB R32419, THIS APPLICATION)
33	R32419	2	COVER	-

BREAKAWAY COUPLER PLUG AND SUPPORT (SYNCRO-RANGE TRANSMISSION) [02J02]
