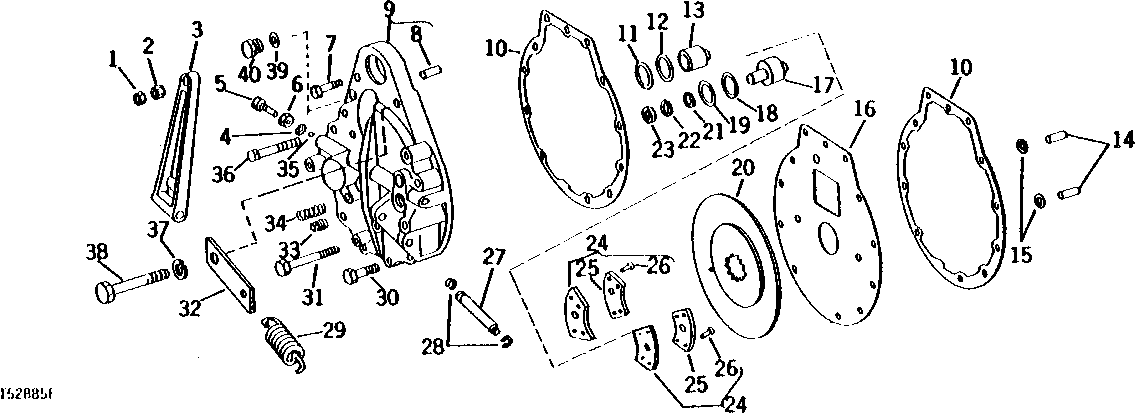

BRAKE HOUSING ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [02J12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H971	1	NUT	1/2"
2	T22514	1	NUT	-
3	T22488	1	ARM	-
4	R26286	2	O-Ring	-
5	R27906	1	FITTING PLUG	-
6	R27296	1	Nut	-
7	19H2735	1	Cap Screw	1/2" X 2"
8	R48685	1	Dowel Pin	(SUB FOR A120R)
9	AT20707	1	HOUSING	WELLAND SERIAL NO. ( -XXXXXX) (MARKED T21525) (SUB AT47583, R39112 AND R26375)
9	-	1	Part 10	WELLAND SERIAL NO. (XXXXXX- ) ( AT47583, MARKED T48996, NO LONGER AVAILABLE)
10	T20421	2	GASKET	-
11	A4540R	1	O-Ring	-
12	R38022	1	WASHER	-
13	R38021	1	PISTON	LEFT
14	T20370	2	PIN	-
15	T12592	2	SHIM	-
16	T23751	1	PLATE	-
17	T22486	1	ABRACADEIRA	WELLAND SERIAL NO. ( - 17122) RIGHT PARKING BRAKE
17	T24831	1	PISTON	WELLAND SERIAL NO. ( 17123- ) RIGHT PARKING BRAKE
18	T22487	1	BACK-UP RING	-
19	R31378	1	O-Ring	-
20	T20599	1	BRAKE DISK	-
21	R495R	1	O-Ring	-
22	R26485	1	BACK-UP RING	-
23	AT12888	1	SEAL	-
24	RE36657	4	PLATE	(SUB FOR AR38778 AND AR38213)
25	R90090	4	BRAKE SHOE	(SUB FOR AR38048 AND R38024) (4 RIVET HOLES)
26	D1761R	16	RIVET	-
27	T22489	1	PIN FASTENER	-
28	R33527	2	SNAP RING	-
29	T24739	1	SPRING	WELLAND SERIAL NO. ( 17123- )
30	19H3057	7	Cap Screw	1/2" X 2-3/4"
31	19H2224	1	CAP SCREW	1/2" X 4-3/4"
32	T24740	1	STRAP	WELLAND SERIAL NO. ( 17123- )
33	15H623	1	Pipe Plug	3/8"
34	K2172R	1	Compression Spring	WELLAND SERIAL NO. ( - 17122)
34	L4593T	1	SPRING	WELLAND SERIAL NO. ( 17123- )
35	R42849	1	Ball	-
36	19H1974	2	Cap Screw	WELLAND SERIAL NO. ( - 20800) 1/2" X 2-3/4"
36	19H1868	2	CAP SCREW	WELLAND SERIAL NO. ( 20801- ) 1/2" X 3-3/4"
37	12H301	1	Lock Washer	WELLAND SERIAL NO. ( 17123- ) 1/2"
38	19H2735	1	Cap Screw	WELLAND SERIAL NO. ( - 17122) 1/2" X 2"
38	19H1805	1	CAP SCREW	WELLAND SERIAL NO. ( 17123- ) 1/2" X 2-1/4"
39	R26375	1	O-Ring	WELLAND SERIAL NO. ( -XXXXXX) (USED WHEN AT47583 HAS BEEN INSTALLED AS A REPLACEMENT PART)
40	R39112	1	Fitting	WELLAND SERIAL NO. ( -XXXXXX) (USED WHEN AT47583 HAS BEEN INSTALLED AS A REPLACEMENT PART)

BRAKE HOUSING ASSEMBLY (SYNCRO-RANGE TRANSMISSION) [02J12]
