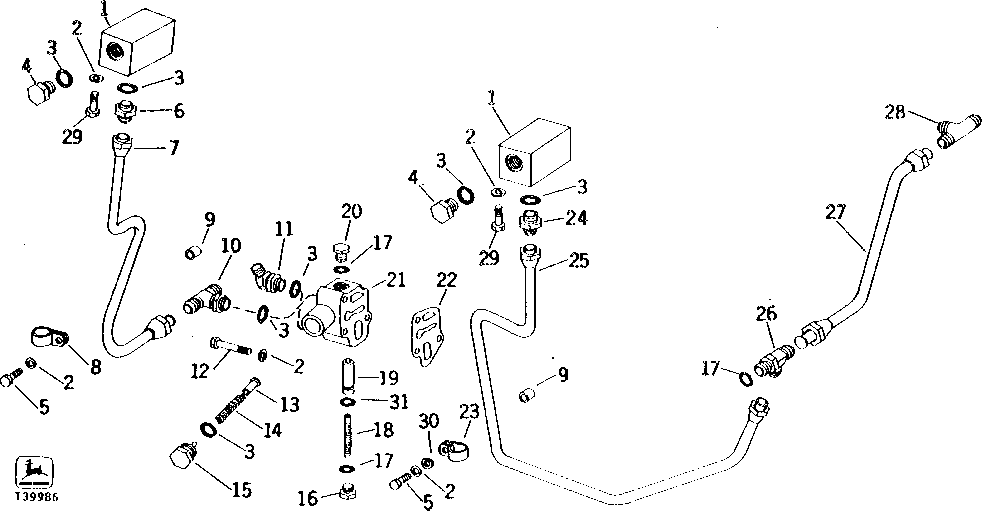

AUXILIARY HYDRAULIC OUTLETS (SYNCRO-RANGE TRANSMISSION) [02J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22166	2	VENT	(A)
2	12H304	9	Lock Washer	(A) 3/8"
3	U12547	7	O-Ring	(A) (SUB FOR (7) F3171R)
4	R27175	2	Drain Plug	(A)
5	19H3239	2	Cap Screw	WELLAND SERIAL NO. ( - 18047) 3/8" X 1-1/4"
5	19H2284	2	Cap Screw	(A) WELLAND SERIAL NO. ( - 18048) 3/8" X 7/8"
6	R27267	1	Fitting	(A)
7	AT20048	1	OIL LINE	(A) WELLAND SERIAL NO. ( - 20800)
7	AT28957	1	OIL LINE	WELLAND SERIAL NO. ( 20801- )
8	T24959	1	Clamp	(A) (ALSO ORDER 12H304 AND 19H2284)
9	28H1519	2	Washer	3/8" X 3/8"
10	T22167	1	Fitting	(A)
11	AT48506	1	Elbow Fitting	(A) 45° ADJUSTABLE, (SUB FOR AR28251, THIS APPLICATION)
12	19H3031	3	Cap Screw	(A) 3/8" X 2-1/2"
13	R40976	1	VALVE	(A) (SUB FOR R27247)
14	R30776	1	SPRING	(A)
15	AR40697	1	PLUG	(A) (SUB FOR AR28654)
16	R33138	1	Fitting	(A)
17	R26375	3	O-Ring	(A)
18	R26686	1	SPRING	(A)
19	R33162	1	VALVE	(A) WELLAND SERIAL NO. ( -XXXXXX) (SUB R57559 AND R33259)
19	R57559	1	VALVE	WELLAND SERIAL NO. (XXXXXX- )
20	R39112	1	Fitting	(A)
21	R34301	1	HOUSING	(A)
22	R34302	1	GASKET	(A)
23	R73384	1	Clamp	(A) (ALSO ORDER A4624R, 12H304 AND 19H2284) (SUB FOR T24494)
24	R36075	1	Fitting	(A)
25	AT20046	1	OIL LINE	(A)
26	-	1	Part 29	(A) ( AR37083 NO LONGER AVAILABLE)
27	AT20047	1	LINE	WELLAND SERIAL NO. ( - 19999)
27	-	1	Part 31	(A) WELLAND SERIAL NO. ( 20000- ) ( AT24236 USE IF AVAILABLE)
28	H60885	1	Tee Fitting	(A) (SUB FOR T22168)
29	19H1732	4	Cap Screw	(A) 3/8" X 1-1/4"
30	A4624R	1	Washer	(A) WELLAND SERIAL NO. ( 18048- )
31	R33259	1	O-Ring	WELLAND SERIAL NO. (XXXXXX- )
..	-	1	Part 36	( AT25978 NO LONGER AVAILABLE)

AUXILIARY HYDRAULIC OUTLETS (SYNCRO-RANGE TRANSMISSION) [02J01]
