№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA32686	1	Mower Deck	-
1	SA36250	1	Mower Deck	-
2	SA36388	1	Clamp	(SUB FOR SA15174)
3	SA29854	1	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) M5X12
4	SAA30451	1	Pulley	ASSY
5	SA36101	1	V-Belt	-
6	SA15202	1	Washer	6,4
7	SA19260	1	Screw	M6X60
8	SA15776	1	Set Screw	M6X16
9	SA35332	1	Pulley	(ORD SA36977)
10	SA34937	1	Ring	-
11	SA15967	2	Shaft Key	4X6,5
12	SA36281	1	Filter Element	-
13	SA36125	1	Gasoline Engine	HONDA, GCV 135, Model A1E
14	SA32641	1	Spark Plug	-
15	SA34279	1	Guide	-
16	SA34286	1	Transmission	(ORDER DRIVE UNIT AS UNIT ONLY, PARTS NO LONGER SUPPLIED SEPARATELY)
17	SA31264	1	Bolt	M5X16
18	SA15412	2	Nut	M6
19	SA15232	4	Lock Washer	A6
20	SA35432	1	Retainer	LOW
21	SA15364	2	Cap Screw	M6X12
22	SA36571	1	Isolator	(SUB FOR SA35433)
23	SA35435	1	Retainer	UP
23	SA36257	1	Retainer	UP
24	SA34452	6	Screw	CM 6,0X14, DUO TAPTITE
25	SA15578	3	Screw	M10X35
25	SAA10164	1	Fan	NLA; ORDER SAA35172
25	SAA35172	1	Fan	-
26	SA36688	1	Shroud	(SUB FOR SA36108)
28	SA15739	1	Snap Ring	31X1,5
29	SA11896	2	Washer	-
30	SA15179	2	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
31	SA15180	1	Fan	-
32	SAU10933	1	Flange	(SUB FOR SA35171)
33	SA34368	2	Disk	-
34	SAA34454	1	Knife	-
35	SA35170	1	Disk	-
36	SA34499	1	Disk	-
37	SA11866	1	Bolt	NF 3/8X44,4
38	SA15573	3	Screw	M8X50
39	SA35517	3	Disk	-
40	14M7327	3	Lock Nut	M8, (SUB FOR SA11998)
41	LG690798	1	Clamp	(SUB FOR SA26799)
42	SA26798	1	Bolt	-
..	SA519	1	Grass Mulching Attachment	-

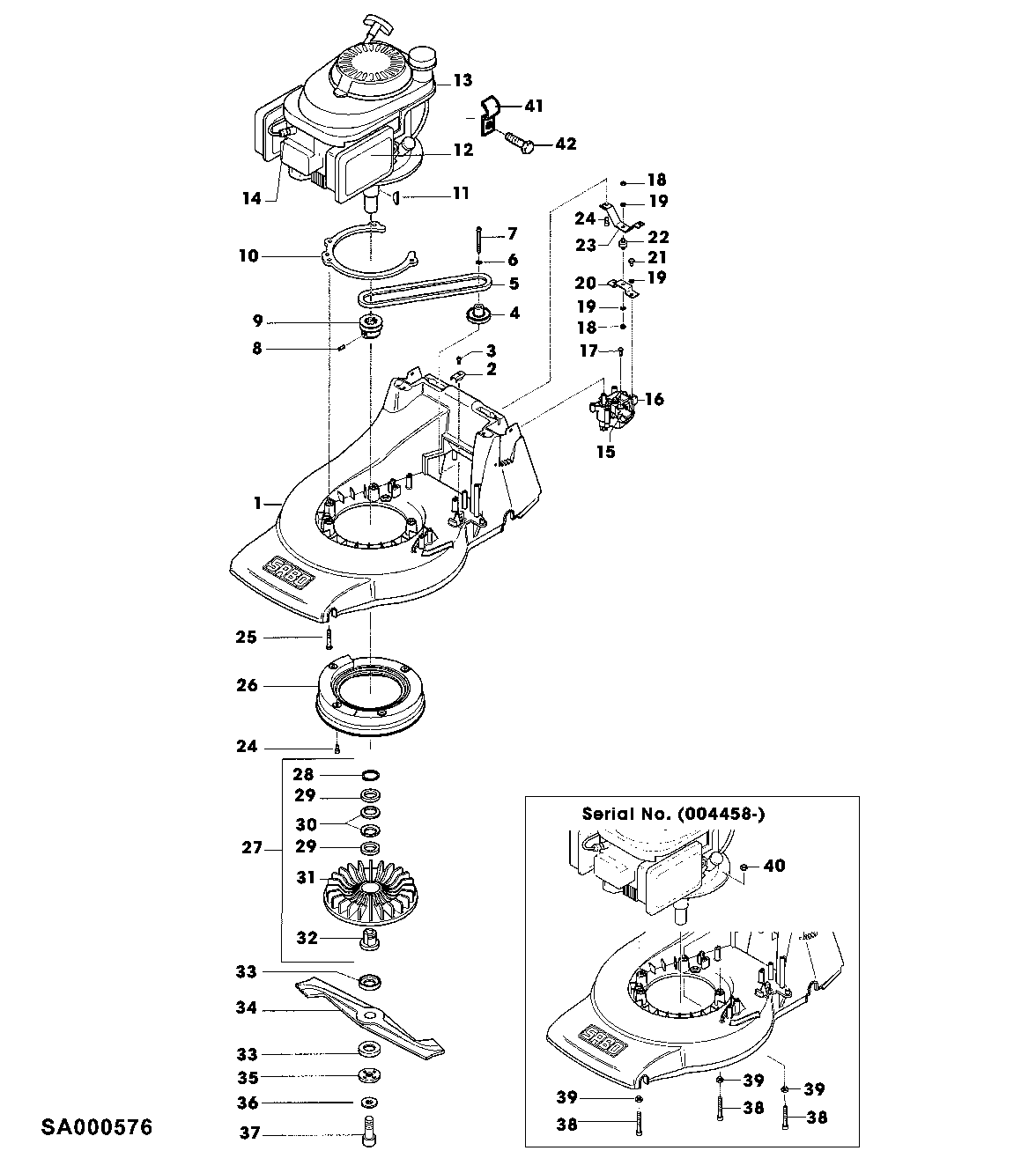

Housing, Engine, Fan, Mower Deck, Drive
