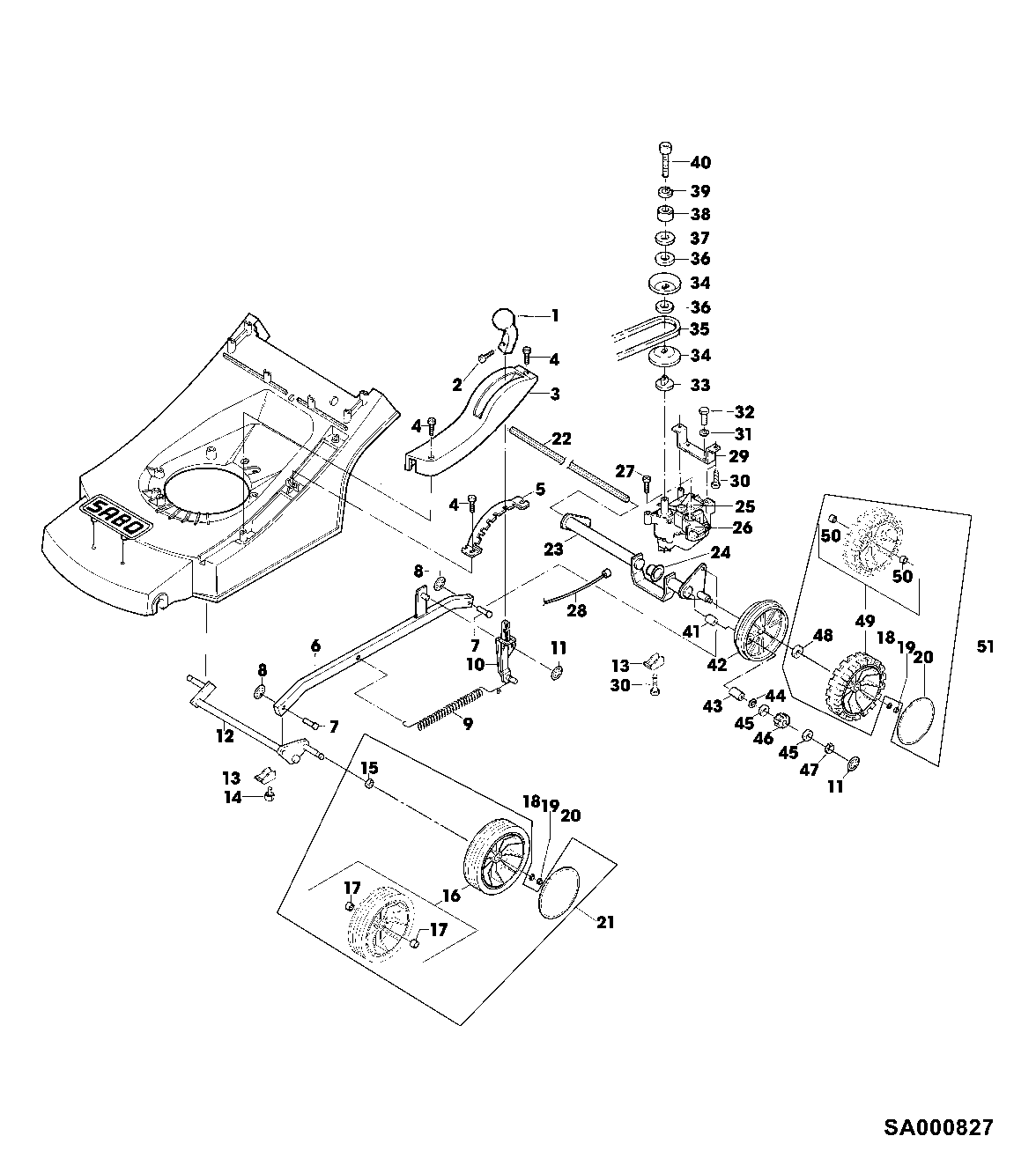

TRANSMISSION, DRIVE, FRONT AND REAR AXLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA35086	1	Handle	-
2	SA35023	1	Screw	30X8, EJOT
3	SA34438	1	Shield	-
4	SA34452	3	Screw	6, 0X14, DUO TAPTITE CM
5	SA34449	1	Sector	-
6	SA34476	1	Tie Bar	-
7	SA17006	2	Pin Fastener	6 H11X 13, 5
8	SA12973	2	Push Nut	(ONLY AVAILABLE AS PACKAGED SETS) D6
9	SA34477	1	Spring	-
10	SA34592	1	Lever	-
11	SA34282	3	Push Nut	8
12	SAU11287	1	Axle	FRONT (SUB FOR SA34451)
13	SA36261	4	Clamp	(SUB FOR SA34649)
14	SA34450	2	Screw	6, 0X10, DUO TAPTITE CM
15	SA35229	2	Washer	-
16	SA34392	2	Tire And Wheel Assembly	180MM, (ORD SA35403) FRONT
17	SA33229	4	Ball Bearing	-
18	SA15213	4	Washer	(ONLY AVAILABLE AS PACKAGED SETS) A8, 4
19	14M7327	4	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
20	SA36555	4	Cover	(SUB FOR SA33231)
21	SA35403	2	Wheel	ASSY, FRONT
22	SA34474	1	Shaft	-
23	SA34472	1	Axle	REAR
24	SA34285	1	Bearing	-
25	SA34286	1	Transmission	-
26	SA34279	1	Guide	-
27	SA31264	1	Bolt	M5X16
28	SA34464	1	Push Pull Cable	-
29	SA34473	1	Retainer	-
30	SA34487	2	Bolt	K60X14
31	SA15232	2	Lock Washer	A6
32	SA15364	2	Cap Screw	M6X12
33	SA30436	1	Flange	-
34	SA17730	2	Half Sheave	-
35	SA17379	1	V-Belt	-
36	SA17732	3	Disk	-
37	SA17733	1	Disk	-
38	SA17731	1	Disk	-
39	SA15232	1	Lock Washer	A6
40	SA15324	1	Cap Screw	M6X25
41	SA31201	2	Bushing	-
42	SA35182	2	Shield	-
43	SA34284	2	Driver	-
44	SA13911	2	Spring Washer	(ONLY AVAILABLE AS PACKAGED SETS)
45	SA13912	4	Disk	(ONLY AVAILABLE AS PACKAGED SETS)
46	SA34503	1	Pinion	RH
46	SA34504	1	Pinion	LH
47	SA15864	2	Snap Ring	14X1
48	SA35424	2	Disk	-
49	SA35181	2	Wheel	180MM, (ORD SA35405) REAR
50	SA12316	4	Needle Bearing	HK 1212
51	SA35405	2	Wheel	ASSY, REAR

TRANSMISSION, DRIVE, FRONT AND REAR AXLE
