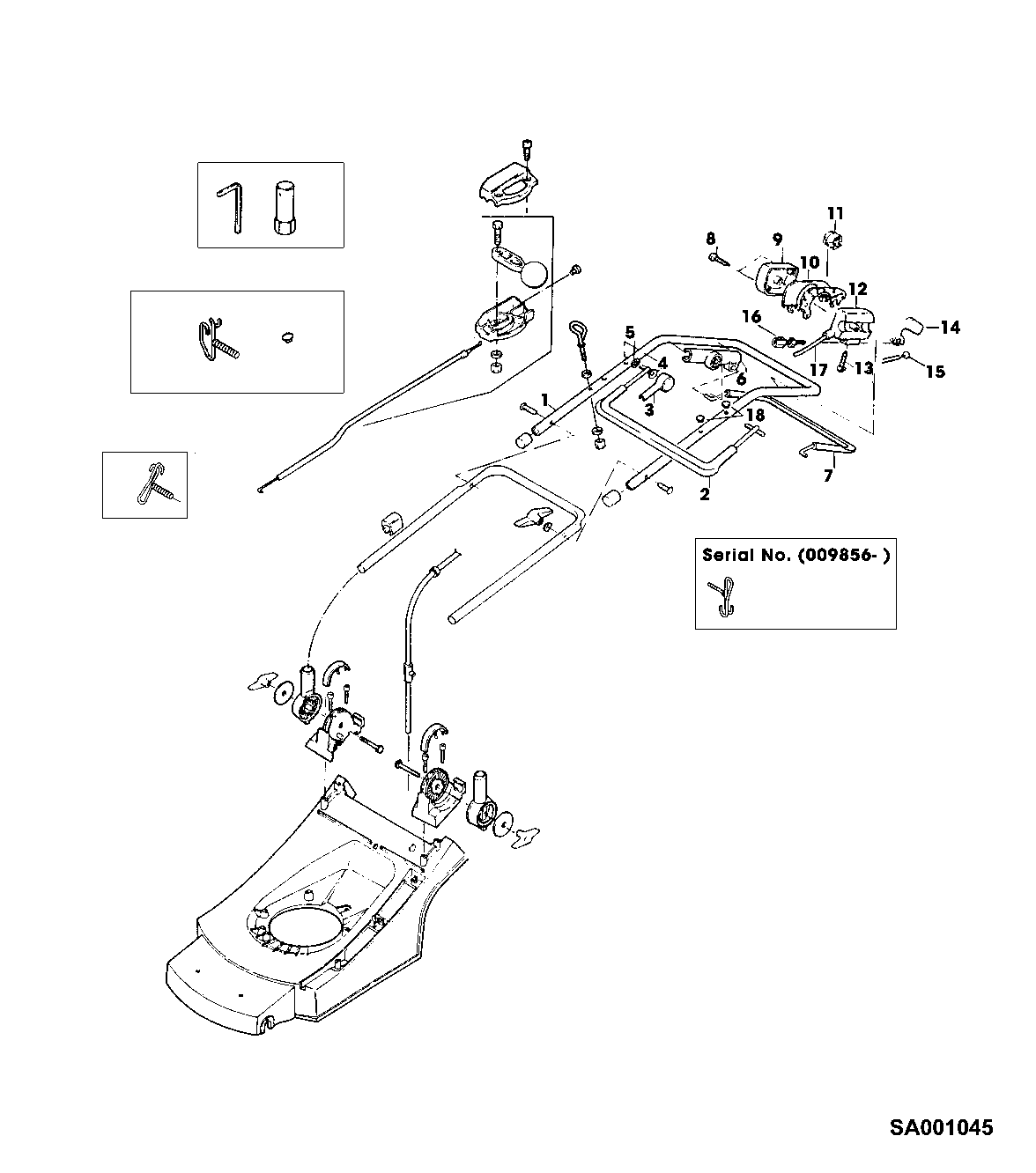

HANDLE (UPPER PART), STARTER CONTROL, SHIFT LINKAGE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA34663	1	Handlebar	UP
1	SA34460	1	Handlebar	UP
1	SA34663	1	Handlebar	UP
1	SA34460	1	Handlebar	UP
1	SA34663	1	Handlebar	UP
1	SA34460	1	Handlebar	UP
2	SA33944	1	Bail	(FOR ENGINE BRAKE)
2	SA34660	1	Bail	(FOR ENGINE BRAKE)
2	SA33944	1	Bail	(FOR ENGINE BRAKE)
2	SA34660	1	Bail	(FOR ENGINE BRAKE)
2	SA33944	1	Bail	(FOR ENGINE BRAKE)
2	SA34660	1	Bail	(FOR ENGINE BRAKE)
3	SA33951	1	Cover	RH
4	SA34089	1	Washer	-
5	SA34247	1	Ring	-
6	SA33946	1	Bearing	RH
6	SA34662	1	Bearing	RH
6	SA33946	1	Bearing	RH
6	SA34662	1	Bearing	RH
6	SA33946	1	Bearing	RH
6	SA34662	1	Bearing	RH
7	SA34668	1	Bail	(FOR GROUND SPEED DRIVE)
7	SA33947	1	Bail	(FOR GROUND SPEED DRIVE)
7	SA34668	1	Bail	(FOR GROUND SPEED DRIVE)
7	SA34668	1	Bail	(FOR GROUND SPEED DRIVE)
7	SA33947	1	Bail	(FOR GROUND SPEED DRIVE)
7	SA33947	1	Bail	(FOR GROUND SPEED DRIVE)
8	SA31423	2	Bolt	KB 35X20
9	SA33952	1	Housing	-
10	SA34921	1	Insert	NSEP (SUB FOR SA33959) (ORD SA33945)
11	SA33955	1	Roller	-
12	SA34661	1	Control	-
12	SA34661	1	Control	-
12	SA33945	1	Housing	-
12	SA34661	1	Control	-
12	SA33945	1	Housing	-
12	SA33945	1	Housing	-
13	SA33975	2	Screw	KB 40X35
14	SA33958	1	Loom	-
14	SA34787	1	Loom	-
14	SA33958	1	Loom	-
14	SA34787	1	Loom	-
14	SA33958	1	Loom	-
14	SA34787	1	Loom	-
15	SA34464	1	Push Pull Cable	(FOR GROUND SPEED DRIVE)
16	SA34098	1	Set Screw	-
17	SA34505	1	Push Pull Cable	(FOR ENGINE BRAKE)
17	SA34740	1	Push Pull Cable	(FOR ENGINE BRAKE)
17	SA34505	1	Push Pull Cable	(FOR ENGINE BRAKE)
17	SA34740	1	Push Pull Cable	(FOR ENGINE BRAKE)
17	SA34505	1	Push Pull Cable	(FOR ENGINE BRAKE)
17	SA34740	1	Push Pull Cable	(FOR ENGINE BRAKE)
18	SA34099	2	Plug	-

HANDLE (UPPER PART), STARTER CONTROL, SHIFT LINKAGE
