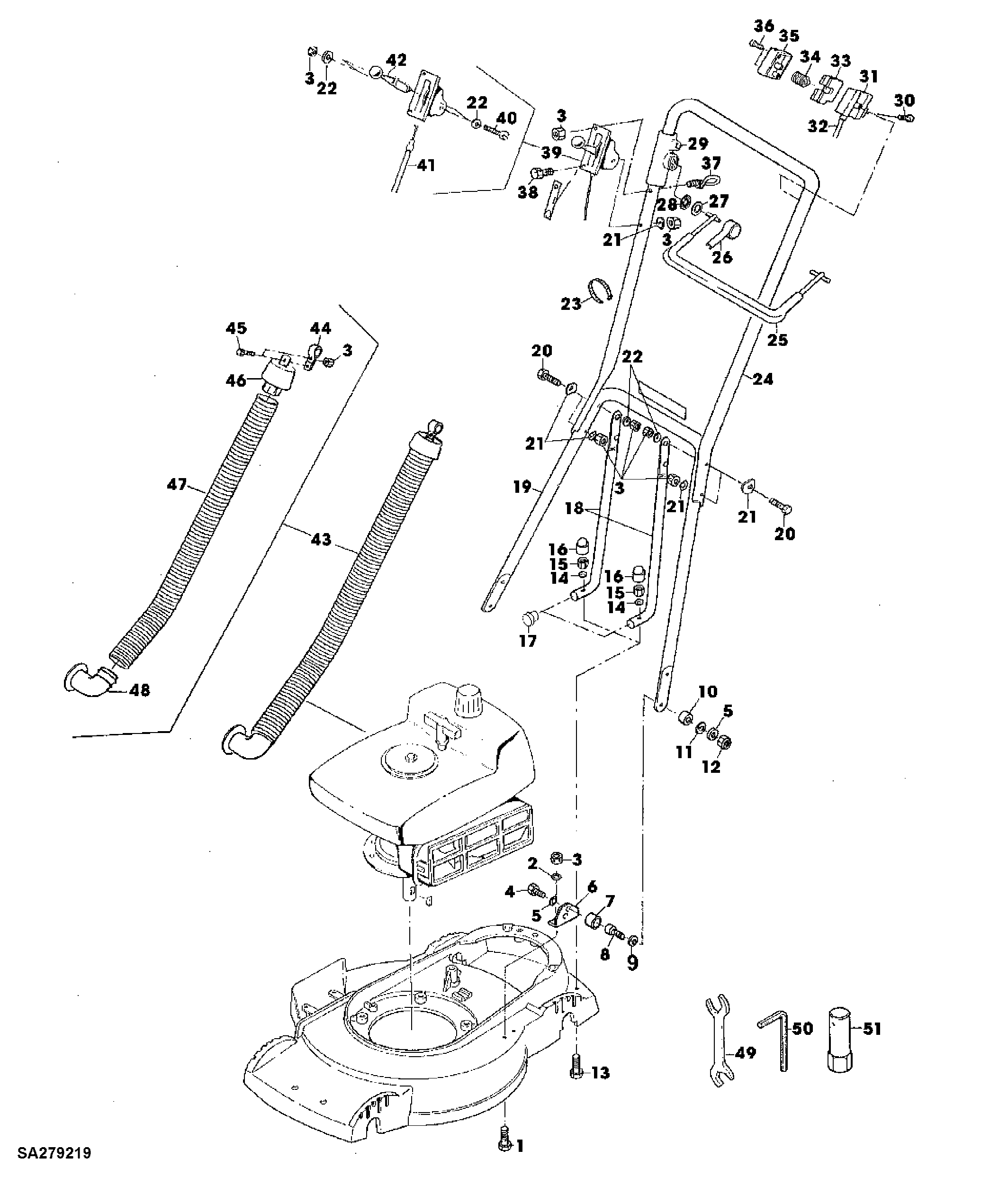

Открытый узел

HANDLE, STARTER, SHIFT LINKAGE, INTAKE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA15630	4	Bolt	M6X16
2	SA15202	4	Washer	6, 4
3	SA11244	12	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
4	SA15360	2	Cap Screw	M8X12
5	SA15233	4	Lock Washer	A8
6	SA35235	2	Retainer	-
7	SA34922	2	Cap	-
8	SA34923	2	Isolator	-
9	SA12939	2	Washer	-
10	SA12532	2	Sleeve	-
11	SA15203	2	Washer	(ONLY AVAILABLE AS PACKAGED SETS) A8
12	SA15413	2	Nut	M8
13	SA30443	2	Bolt	M8X40, (SUB FOR SA34595)
14	SA30444	2	Disk	-
15	14M7327	4	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
16	SA34424	2	Cap	M8
17	SA34255	2	Plug	(ONLY AVAILABLE AS PACKAGED SETS)
18	SA35236	2	Outrigger	-
19	SAA12259	1	Guide	LOW
20	SA15302	4	Cap Screw	M6X40
21	SA11243	7	Washer	-
22	SA15212	4	Washer	(ONLY AVAILABLE AS PACKAGED SETS) A6, 4
23	RA1000652	3	Tie Band	(SUB FOR SA34258, SA12505)
24	SAA35482	1	Outrigger	UP (SUB FOR SA35234)
25	SA34013	1	Bail	(FOR ENGINE BRAKE)
26	SA33951	1	Cover	RH
27	SA34089	1	Washer	-
28	SA34247	1	Ring	-
29	SA34662	1	Bearing	RH
30	SA31423	2	Bolt	KB 35X20
31	SA33952	1	Housing	-
32	SA34024	1	Push Pull Cable	(FOR ENGINE BRAKE)
32	SA35389	1	Push Pull Cable	(FOR ENGINE BRAKE)
33	SA34921	1	Insert	NSEP (ORD SA34832)
34	SA33955	1	Roller	-
35	SA34832	1	Housing	-
36	SA33975	2	Screw	KB 40X35
37	SA34459	1	Handle	-
38	SA15326	1	Cap Screw	M6X35
39	SA34814	1	Control	-
40	SA15551	1	Screw	M6X25
41	SA34813	1	Push Pull Cable	NSEP (ORD SA34814)
42	SAU14024	1	Lever	SUB FOR SA12768
43	SAA34016	1	Air Intake Stack	-
44	SA16655	1	Hose Clamp	-
45	19M7077	2	Cap Screw	M6 X 20, (SUB FOR SA15323)
46	SA34017	1	Cover	-
47	SA33275	1	Hose	-
48	SA34028	1	Exhaust Manifold	-
49	SA18311	1	Wrench	SW 10/13
50	SA34732	1	Hex Wrench Set	SW 7
51	SA35231	1	Key	SUB FOR SA11864

HANDLE, STARTER, SHIFT LINKAGE, INTAKE
