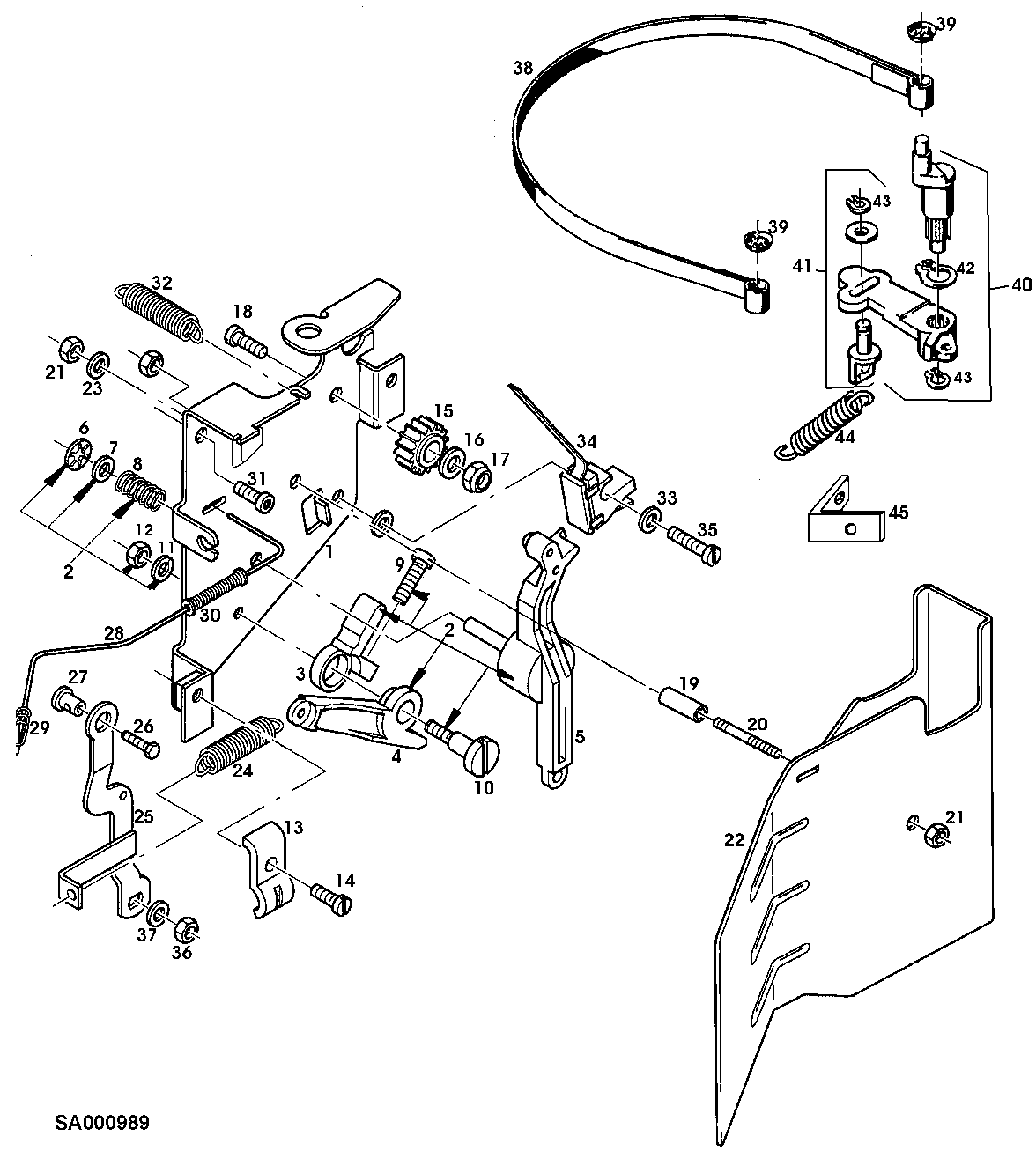

ENGINE BRAKE, CONSOLE - 2ND VERSION, SIDE DISCHARGE (MOTOCO SB152)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NSEP (ORD SA20825)
2	SA20858	1	Arm Kit	ASSY, INCL KEYS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
3	-	1	Part 3	-
4	-	1	Part 4	-
5	-	1	Part 5	-
6	SA20501	1	Lock Washer	-
7	SA21116	1	Disk	5, 3X10X1, 0
8	-	1	Part 8	-
9	SA16232	1	Screw	M4X20
10	-	1	Part 10	-
11	SA34550	1	Lock Washer	B4
12	SA15410	1	Nut	M4
13	SA20819	1	Strap	-
14	SA15660	1	Screw	M5X12
15	-	1	Part 15	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
16	SA20201	1	Disk	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
17	SA15412	1	Nut	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6
18	-	1	Part 18	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6X18
19	SA20293	1	Sleeve	-
20	-	1	Part 20	M5X28
21	SA15411	3	Nut	M5
22	SA20848	1	Sheet	-
23	SA21116	1	Disk	5, 3X10X1, 0
24	SA20646	1	Spring	-
25	SAA20647	1	Lever	SUB FOR SA20647; ASSY, INCL KEYS 26, 27
26	21M7268	1	Screw	M3 X 6, (SUB FOR SA21398)
27	SA20289	1	Pin Fastener	-
28	SA20395	1	Linkage	ASSY, INCL KEYS 29, 30
29	SA20399	1	Bail	-
30	-	1	Part 30	-
31	SA20517	1	Bolt	M5X12
32	SA20396	1	Extension Spring	-
33	SA21116	2	Disk	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) 5, 3X10X1, 0
34	SA20487	1	Elec. Connector Terminal	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
35	SA20779	1	Bolt	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M5X18
36	SA15411	1	Nut	M5
37	SA15231	1	Lock Washer	A5
38	SA20431	1	Brake Band	-
39	SA20501	2	Lock Washer	-
40	SA20793	1	Engine Overhaul Kit	ASSY, INCL KEYS 41, 42, 43
41	SA20643	1	Handbrake Lever	ASSY, NSEP (ORD SA20793)
42	SA20540	1	Ring	-
43	SA20539	1	Ring	-
44	SA20791	1	Extension Spring	-
45	SA20790	1	Angle	-
..	SA20825	1	Engine Overhaul Kit	ASSY, INCL KEYS 1, 2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31

ENGINE BRAKE, CONSOLE - 2ND VERSION, SIDE DISCHARGE (MOTOCO SB152)

Нет текстового описания
