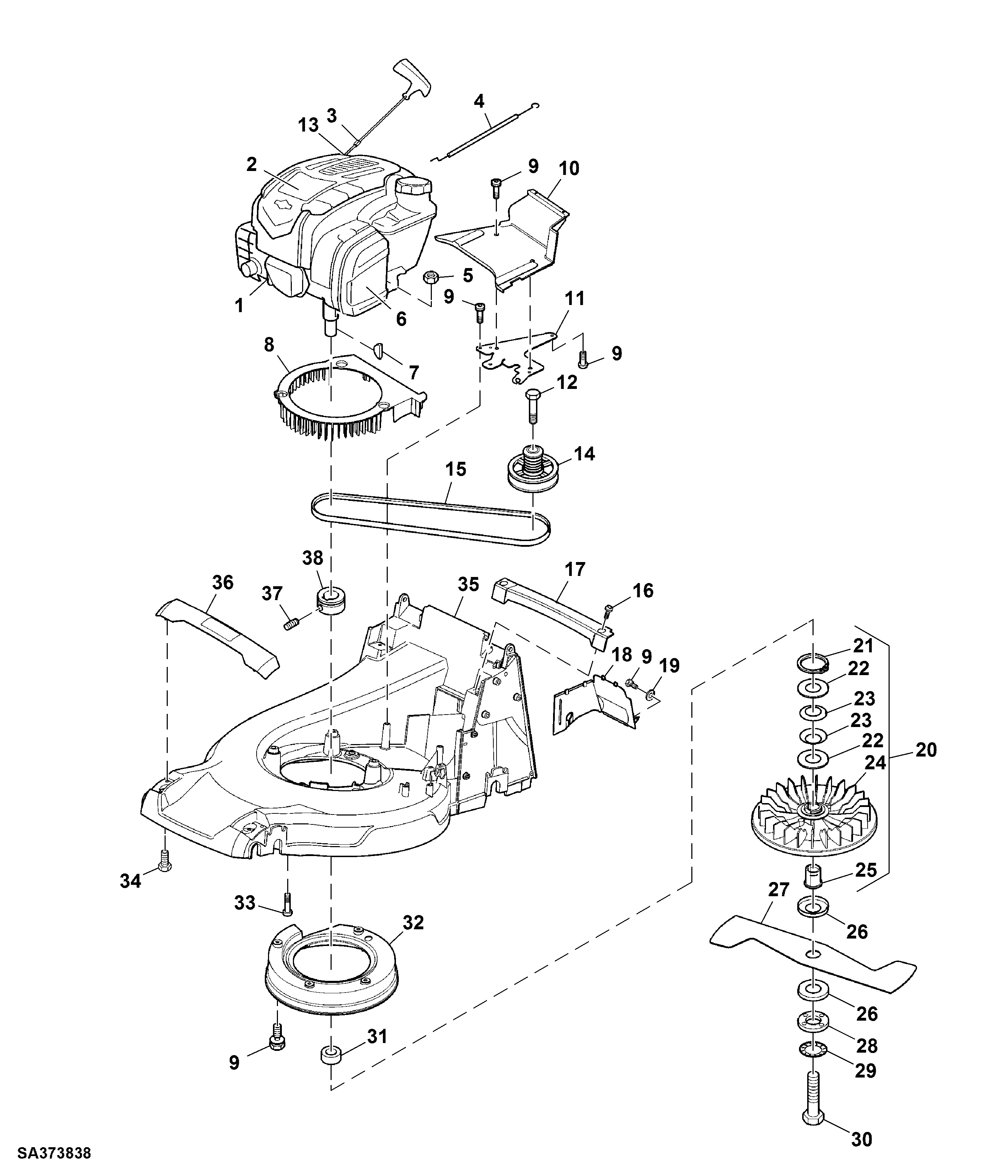

Gasoline Engine / Mower Deck

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M78543	1	Spark Plug	Only Available as Packaged Sets
2	SAA16152	1	Gasoline Engine	Model 104M02, Type 0228H5
3	SAU14027	1	Clamp	-
4	SAU15772	1	Push Pull Cable	-
5	14M7327	3	Lock Nut	M8, Only Available as Packaged Sets SUB FOR SA11998
6	-	1	Part 6	by Briggs and Stratton ORDER 593260
7	26M4224	2	Shaft Key	4 X 16 mm, SUB FOR SA15967
8	SAU16125	1	Guard	-
9	SA34452	10	Screw	M6 X 14, Only Available as Packaged Sets
10	SAU11947	1	Orifice	-
11	SAU16187	1	Guard	-
12	SAU15658	1	Screw	M6 X 60
13	SAU14260	1	Clamp	-
14	SAA11850	1	Pulley	INCLUDES SAU15658
15	SAU12081	1	V-Belt	663 X 10.200 mm (26.102" X 0.402")
16	SA36124	2	Screw	M6 X 30, Only Available as Packaged Sets
17	SAU13695	1	Grip	SUB FOR SAU11940
18	SAU13368	1	Shield	SUB FOR SAU11909
19	SA35803	1	Spacer	Only Available as Packaged Sets
20	SAA35172	1	Fan	INCLUDES SA15739, (2) SA11896, (2) SA15179, SA15180 AND SAU10933
21	SA15739	1	Snap Ring	Only Available as Packaged Sets
22	SA11896	2	Washer	32 X 45 X 2 mm (1.260" X 1.772" X 0.079"), Only Available as Packaged Sets
23	SA37507	2	Disk Spring	33 X 60 X 1.300 mm (1.299" X 2.362" X 0.051")
24	SA15180	1	Fan	-
25	SAU10933	1	Flange	-
26	SA34368	2	Disk	Only Available as Packaged Sets
27	SAA10566	1	Knife	-
28	SA35170	1	Disk	-
29	SA34499	1	Disk	Only Available as Packaged Sets
30	SA15593	1	Bolt	9.525 X 57.150 mm (3/8" X 2-1/4")
31	SA12788	1	Spacer	12 X 22 X 11 mm (0.472" X 0.866" X 0.433")
32	SAA16353	1	Shroud	-
33	19M8335	3	Screw	M8 X 55, SUB FOR SA27518
34	SA37452	2	Screw	K 6 X 20 mm, Only Available as Packaged Sets
35	-	1	Part 35	-
36	SAA12488	1	Grip	-
37	SA15776	1	Set Screw	M6 X 16, Only Available as Packaged Sets
38	SAU11977	1	Pulley	-
39	BSA632	1	Grass Mulching Attachment	Not Illustrated
