Открытый узел

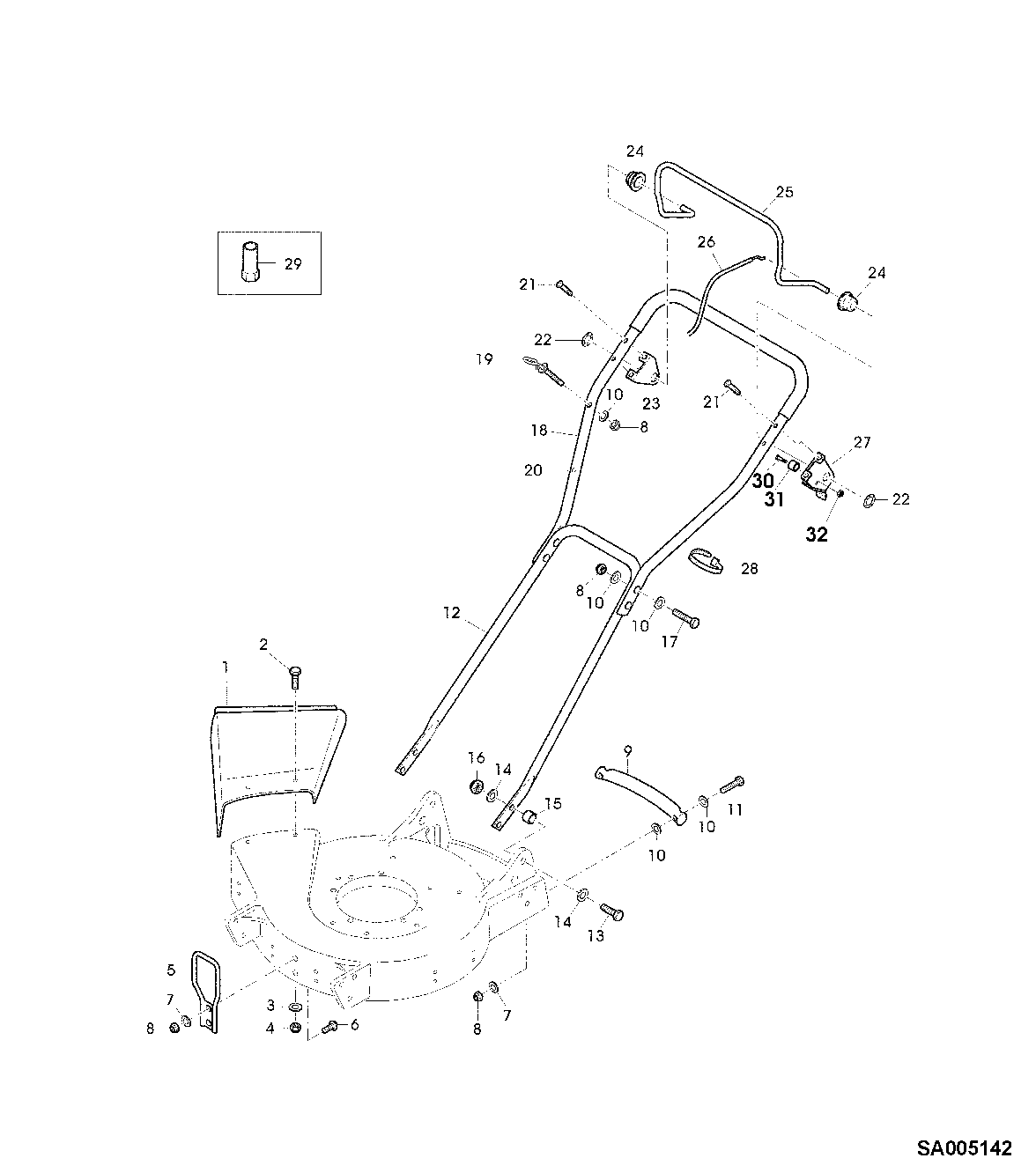

HANDLE, STARTER, SHIFT LINKAGE, BAFFLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA12066	1	Sheet	-
2	SA15322	2	Cap Screw	M6X16
3	SA15232	2	Lock Washer	A6
4	SA15412	2	Nut	M6
5	SAA37267	1	Bail	-
6	SA15631	2	Bolt	M6X20
7	SA15202	4	Washer	6, 4
8	SA11244	9	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
9	SAA36444	1	Handle	(SUB FOR SA36191)
10	SA11243	13	Washer	-
11	SA15302	2	Cap Screw	M6X40
12	SAA626	1	PART MISSING IN WISE	SUB FOR SA12626 ; Low
13	SA15332	4	Cap Screw	M8X25
13	SA15334	4	Cap Screw	M8X30
14	SA15213	8	Washer	(ONLY AVAILABLE AS PACKAGED SETS) A8, 4
15	SA12170	4	Spacer	-
16	14M7327	4	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
17	SA15327	4	Cap Screw	M6X40
18	SAA36180	1	Handle	UP
19	SA34459	1	Handle	-
20	SA34099	1	Plug	-
21	SA15535	4	Screw	M6X30
22	SA36975	2	Push Nut	D16
23	SA36736	1	Holder	RH
24	SA36974	2	Bushing	10.8X16X10
25	SA37486	1	Bail	(FOR ENGINE BRAKE) (SUB FOR SA37134)
26	SA36007	1	Push Pull Cable	(FOR ENGINE BRAKE)
26	SAU11041	1	Push Pull Cable	(FOR ENGINE BRAKE)
27	SA37488	1	Holder	LH (SUB FOR SA36742)
28	SA12505	3	Tie Band	115MM
29	SA36090	1	Key	SW16
30	SA15569	1	Screw	M8X25
31	SA35927	1	Spacer	8.5X16X11
32	SA11998	1	Lock Nut	M8

HANDLE, STARTER, SHIFT LINKAGE, BAFFLE
