Открытый узел

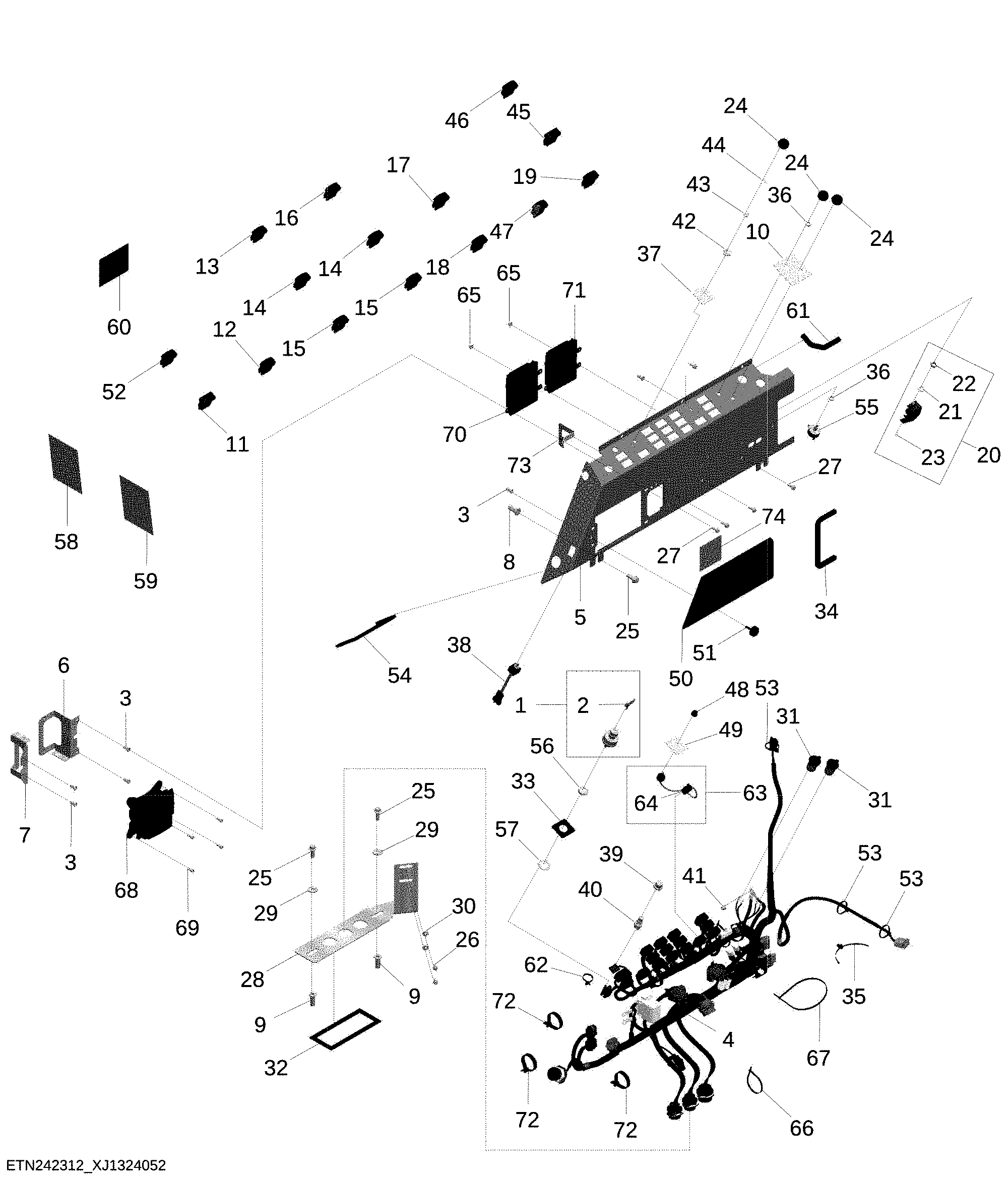

Console Controls Circle Saw With Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195301	1	Switch	-
2	AT195302	1	Key	-
3	T196077	8	Nut	-
4	AT515380	1	Cab Wiring Harness	Wiring Harness, Component on Separate Page
5	AT535309	1	Control Console	Side Console
6	AT535307	1	Bracket	-
7	AT535308	1	Bracket	-
8	T148409	2	Nut	-
9	T148411	2	Nut	-
10	T233661	1	Label	To Control Console
11	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch
12	AT467543	1	Toggle/Rocker Switch	Throttle Hold Mode
13	AT467551	1	Toggle/Rocker Switch	All Stabilizer Control
14	AT467548	2	Toggle/Rocker Switch	Stabilizer, RH
15	AT467549	2	Toggle/Rocker Switch	Stabilizer, LH
16	AT467544	1	Toggle/Rocker Switch	Work Light
17	AT467547	1	Toggle/Rocker Switch	Washer Fluid
18	AT467546	1	Toggle/Rocker Switch	Wiper On/Off
19	AT467545	1	Toggle/Rocker Switch	Air Conditioning
20	RE46742	1	Control	Temperature
21	12H325	1	Lock Washer	7/16"
22	14H934	1	Nut	7/16"
23	M87056	1	Nut	-
24	AL76568	3	Knob	-
25	19M7786	4	Screw	M10 X 30
26	19M7775	5	Screw	M6 X 16
27	19M7862	14	Screw	M6 X 20
28	T233671	1	Bulkhead Wiring Harness	Bulkhead, Electrical
29	24M7296	2	Washer	10.500 X 30 X 2.500 mm
30	24M7139	2	Washer	6.400 X 18 X 1.600 mm
31	GY20126	2	Socket Outlet	-
32	T435095	1	Seal	-
33	T157172	1	Label	Key Start
34	T435096	1	Isolator	-
35	T209627	1	Clamp	-
36	R44165	2	Lock Nut	-
37	T218622	1	Label	Throttle Control
38	AT312606	1	Sensor	-
38	AT340550	1	Potentiometer	Engine Speed Gold, INCLUDES AT312606
39	T55501	1	Cap	-
40	R39554	1	Switch	-
41	14M7397	1	Lock Nut	M6
42	T226430	1	Tube	-
43	T226427	1	Washer	-
44	R78035	1	Push Nut	-
45	AT467550	1	Toggle/Rocker Switch	-
46	AT467552	1	Toggle/Rocker Switch	-
47	AT467553	1	Toggle/Rocker Switch	-
48	F121878	1	Grip	-
49	T332840	1	Label	-
50	T355668	1	Panel	Service Fuse
51	AT325667	1	Knob	-
52	AT467554	1	Toggle/Rocker Switch	-
53	R44302	4	Tie Band	-
54	T459154	1	Isolator	-
55	AT471493	1	Switch	-
56	R44342	1	Nut	-
57	24H1441	1	Washer	1-1/64" X 1-1/2" X 0.048"
58	T459056X000	1	Label	Joystick, RH
59	T459064X000	1	Label	Joystick, LH
60	T428608X00	1	Label	Joystick, RH
61	T471627	1	Isolator	-
62	R44302	1	Tie Band	-
63	AT427650	1	Rheostat	-
64	57M8018	1	Electrical Connector Assy	-
65	14M7744	8	Flange Nut	M6
66	H77698	3	Tie Band	-
67	H77698	1	Tie Band	-
68	AT515476	1	Fuse Box	-
69	19M8553	4	Screw	M6 X 16
70	AT472332	1	Vehicle Controller	-
70	AT525720	1	Software	Order Through JD™ Point
71	AT472332	1	Vehicle Controller	-
71	AT526091	1	Software	Order Through JD™ Point
72	H224073	7	Tie Band	-
73	AT526107	1	Bracket	-
74	T459195X019	1	Label	Label Fuse Holder English

Console Controls Circle Saw With Mobile Hydraulics

Нет текстового описания
