Открытый узел

Stabilizer Plumbing, Expanded Rotary Manifold, Upper Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT368587	1	Solenoid Hydraulic Valve	Hydraulic Valve Stabilizer Components on Separate Page
2	19M7810	2	Screw	M10 X 80
3	38H3163	2	Adapter Fitting	-
4	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
5	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	38H1623	2	Adapter Fitting	-
7	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
9	38H3005	2	Adapter Fitting	-
10	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
11	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
12	AT449115	1	Hydraulic Hose	Fabricate Main Control Valve to Rotary Manifold
13	AT119290	1	Hose Clamp	-
14	14M7296	1	Flange Nut	M10
15	AT449562	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
16	T354824	2	Hose Clamp	-
17	T355852	1	Strap	-
18	19M7742	2	Cap Screw	M10 X 65
19	T392052	2	Nut	SUB FOR F120999
20	AT413510	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve Stabilizer
21	AT413507	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve Stabilizer
22	AT413507	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve Stabilizer
23	AT375149	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve Stabilizer
24	38H3161	3	Adapter Fitting	-
25	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
26	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
27	38H3213	1	Adapter Fitting	-
28	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")

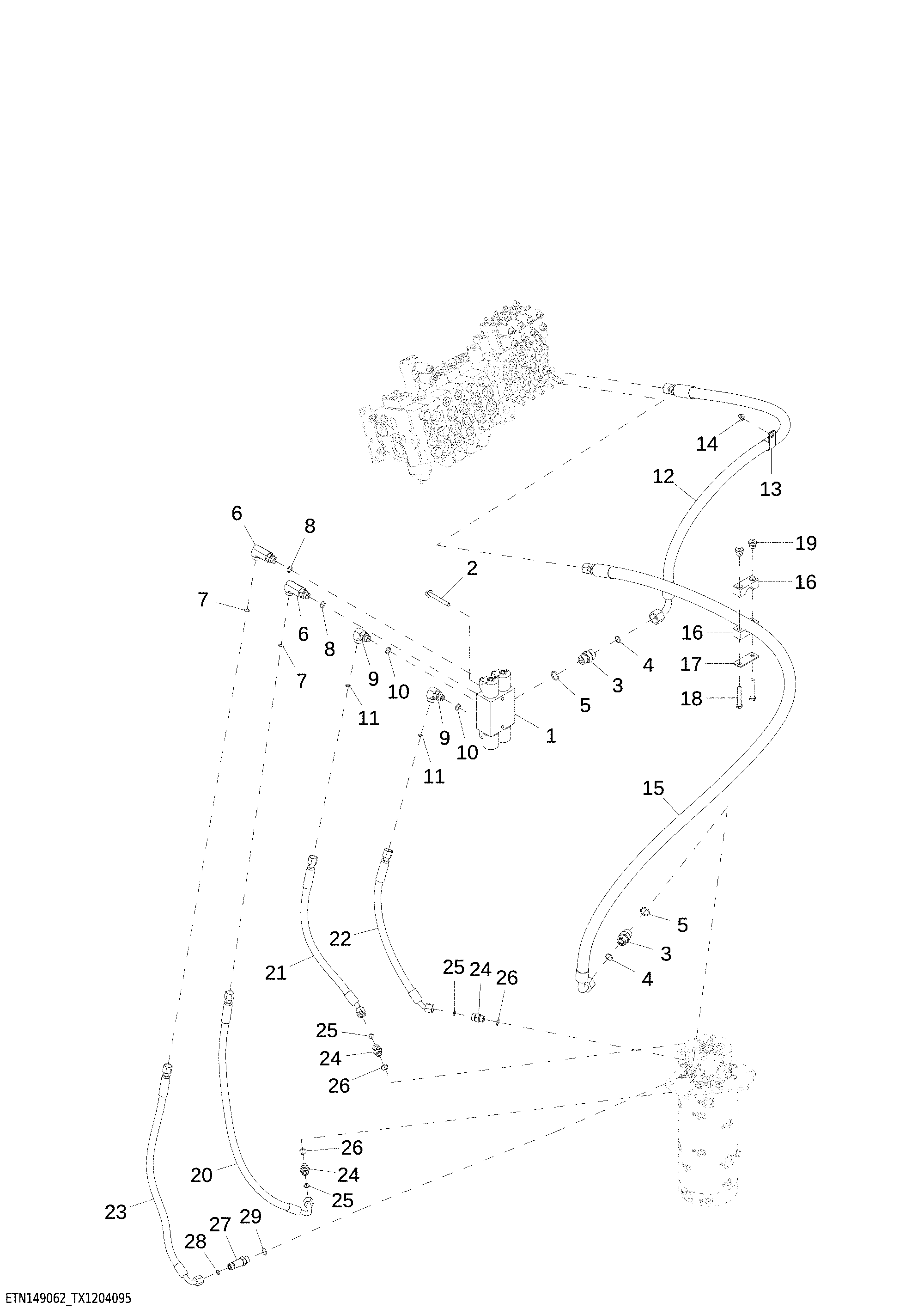

Stabilizer Plumbing, Expanded Rotary Manifold, Upper Frame
