Открытый узел

Return Pluming, Circle Saw with Mobile Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1172	1	Adapter Fitting	-
2	T77613	1	O-Ring	-
3	R26906	1	O-Ring	-
4	38H3023	1	Tee Fitting	-
5	R26448	1	O-Ring	-
6	T77613	2	O-Ring	-
7	38H1027	2	Tee Fitting	-
8	R29936	2	O-Ring	-
9	T76938	4	O-Ring	-
10	38H3007	2	Adapter Fitting	-
11	U12547	2	O-Ring	-
12	T77858	2	O-Ring	-
13	38H5122	1	Tee Fitting	-
14	T77858	2	O-Ring	-
15	38H3492	1	Elbow Fitting	-
16	T77858	1	O-Ring	-
17	U12547	1	O-Ring	-
18	AT473256	1	Hydraulic Hose	Fabricate, SUB FOR AT443970
19	AT252685	1	Hose Guard	-
20	H77698	3	Tie Band	-
21	AT443966	1	Hydraulic Hose	-
22	AT443967	1	Hydraulic Hose	Fabricate
23	AT443968	1	Hydraulic Hose	Fabricate
24	38H5412	1	Adapter Fitting	-
25	T78612	1	O-Ring	-
26	38H3160	2	Adapter Fitting	-
27	T77613	2	O-Ring	-
28	R26448	2	O-Ring	-
29	T346793	1	Orifice	-
30	T77613	1	O-Ring	-
31	AT443969	1	Hydraulic Hose	Fabricate
32	38H5374	1	Adapter Fitting	-
33	T76938	1	O-Ring	-
34	AT463710	1	Check Valve	7 PSI
35	38H1581	1	Adapter Fitting	-
36	T76938	1	O-Ring	-
37	R26773	1	O-Ring	-
38	AT465388	1	Fitting	-
39	AT440841	1	Hydraulic Hose	ORDER AT523869
39	AT523869	1	Hydraulic Hose	-
40	AT435684	1	Hydraulic Hose	Fabricate
41	AT446415	1	Hydraulic Hose	Fabricate From Hydraulic Tank
42	T360580	1	Fitting	-
43	51M7048	1	O-Ring	29.600 X 2.900 mm
44	T76938	1	O-Ring	-
45	N198631	1	Clamp	-
46	AT449202	1	Hydraulic Hose	Fabricate
47	38H3007	1	Adapter Fitting	-
48	U12547	1	O-Ring	-
49	T77858	1	O-Ring	-
50	38H3164	1	Adapter Fitting	-
51	T76938	1	O-Ring	-
52	R29936	1	O-Ring	-
53	38H5207	1	Elbow Fitting	-
54	T76938	1	O-Ring	-
55	38H5408	1	Adapter Fitting	-
56	T76938	2	O-Ring	-

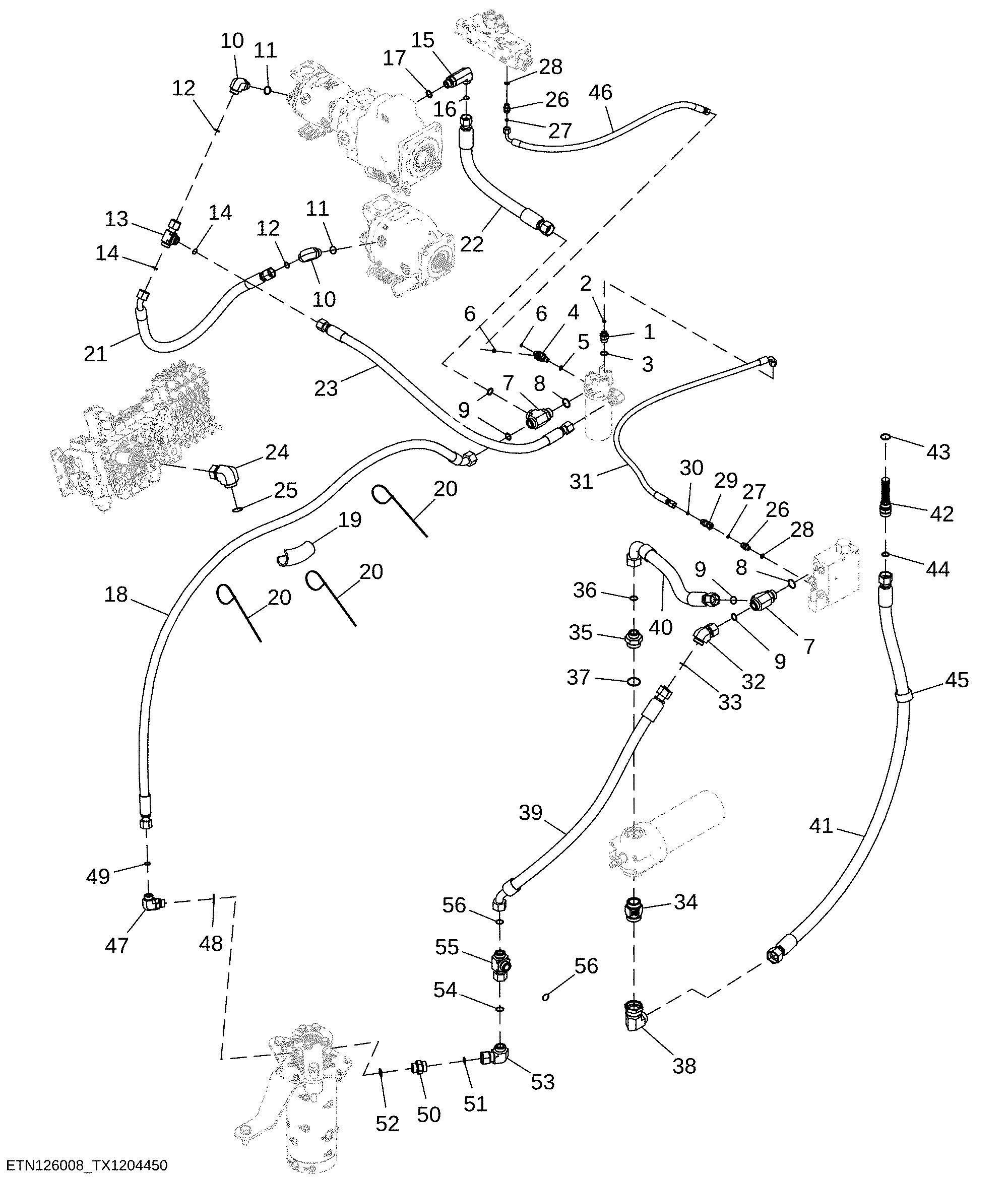

Return Pluming, Circle Saw with Mobile Hydraulics

Нет текстового описания
