Return Plumbing, Mobile Hydraulics, Upper Frame ( - 394055)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	64H1006	1	Drain Plug	-
2	R26906	1	O-Ring	-
3	38H1410	1	Tee Fitting	-
4	T76938	1	O-Ring	-
5	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
6	R29936	1	O-Ring	-
7	38H1023	1	Tee Fitting	-
8	R26448	1	O-Ring	-
9	T77613	2	O-Ring	-
10	38H1492	1	Elbow Fitting	-
11	38H1007	2	Elbow Fitting	-
12	U12547	2	O-Ring	-
13	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	U12547	1	O-Ring	-
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
16	AT450099	1	Hydraulic Hose	Fabricate
17	AT252685	1	Hose Guard	-
18	H77698	3	Tie Band	-
19	AT450097	1	Hydraulic Hose	Fabricate
20	AT443971	1	Hydraulic Hose	Fabricate
21	AT443972	1	Hydraulic Hose	Fabricate
22	AT449202	1	Hydraulic Hose	Fabricate
23	38H1034	1	Tee Fitting	-
24	T78612	2	O-Ring	-
25	AT450096	1	Oil Tube	-
26	T78612	1	O-Ring	-
27	T354824	2	Hose Clamp	-
28	38H1160	1	Adapter Fitting	-
29	T77613	1	O-Ring	-
30	R26448	1	O-Ring	-
31	T355852	1	Strap	-
32	AT119290	1	Hose Clamp	-
33	19M7742	2	Cap Screw	M10 X 65
34	T392052	2	Nut	SUB FOR F120999
35	64H1004	1	Drain Plug	-
36	R26448	1	O-Ring	-
37	38H3164	1	Adapter Fitting	SUB FOR 38H1164
38	T76938	1	O-Ring	-
39	R29936	1	O-Ring	-
40	38H5207	1	Elbow Fitting	SUB FOR 38H1098
41	T76938	1	O-Ring	-
42	38H5408	1	Adapter Fitting	SUB FOR 38H1002
43	T76938	2	O-Ring	-
44	38H1622	1	Adapter Fitting	-
45	T76938	1	O-Ring	-
46	38H3007	1	Adapter Fitting	-
47	U12547	1	O-Ring	-
48	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")

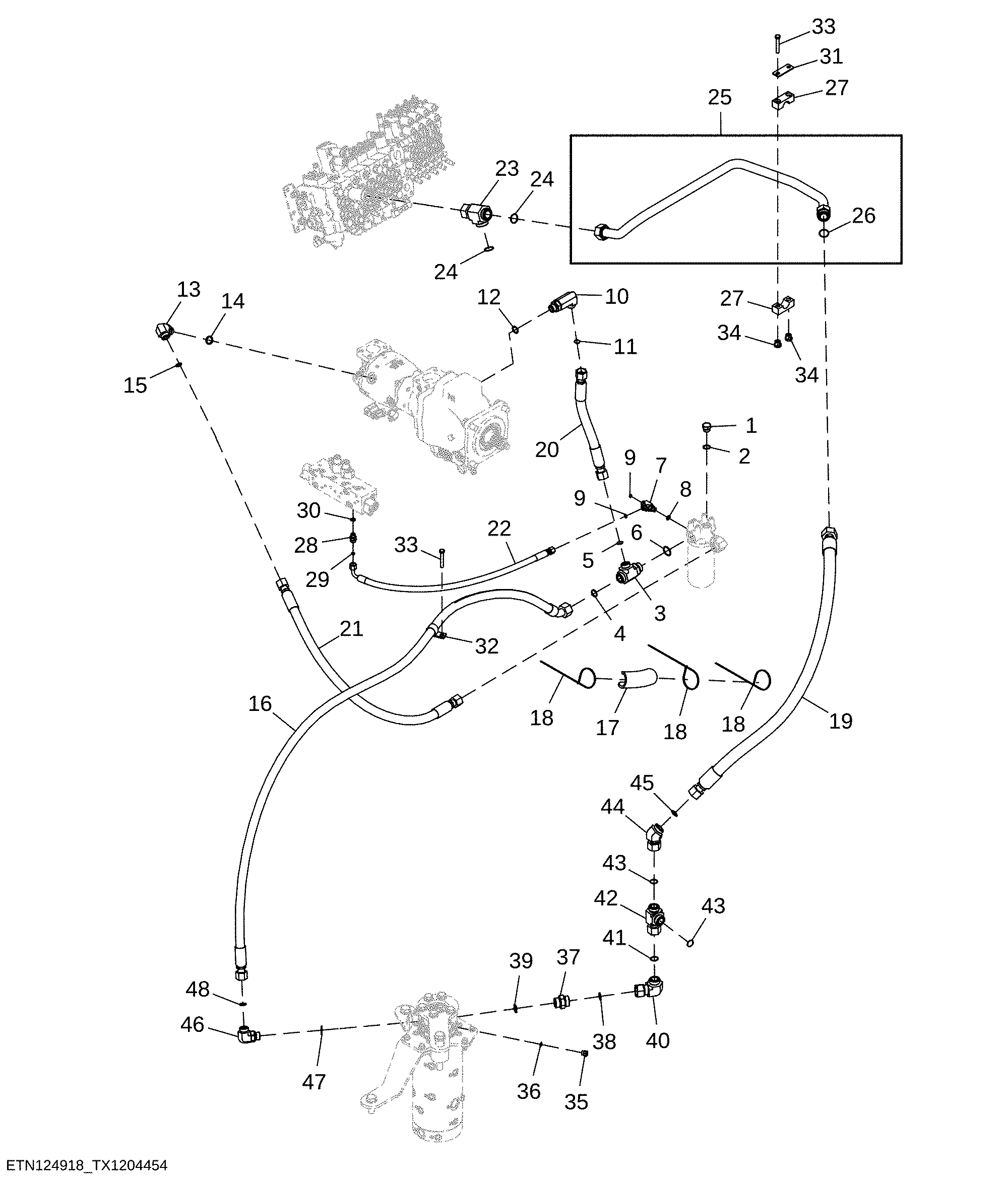

Return Plumbing, Mobile Hydraulics, Upper Frame ( - 394055)

Нет текстового описания
