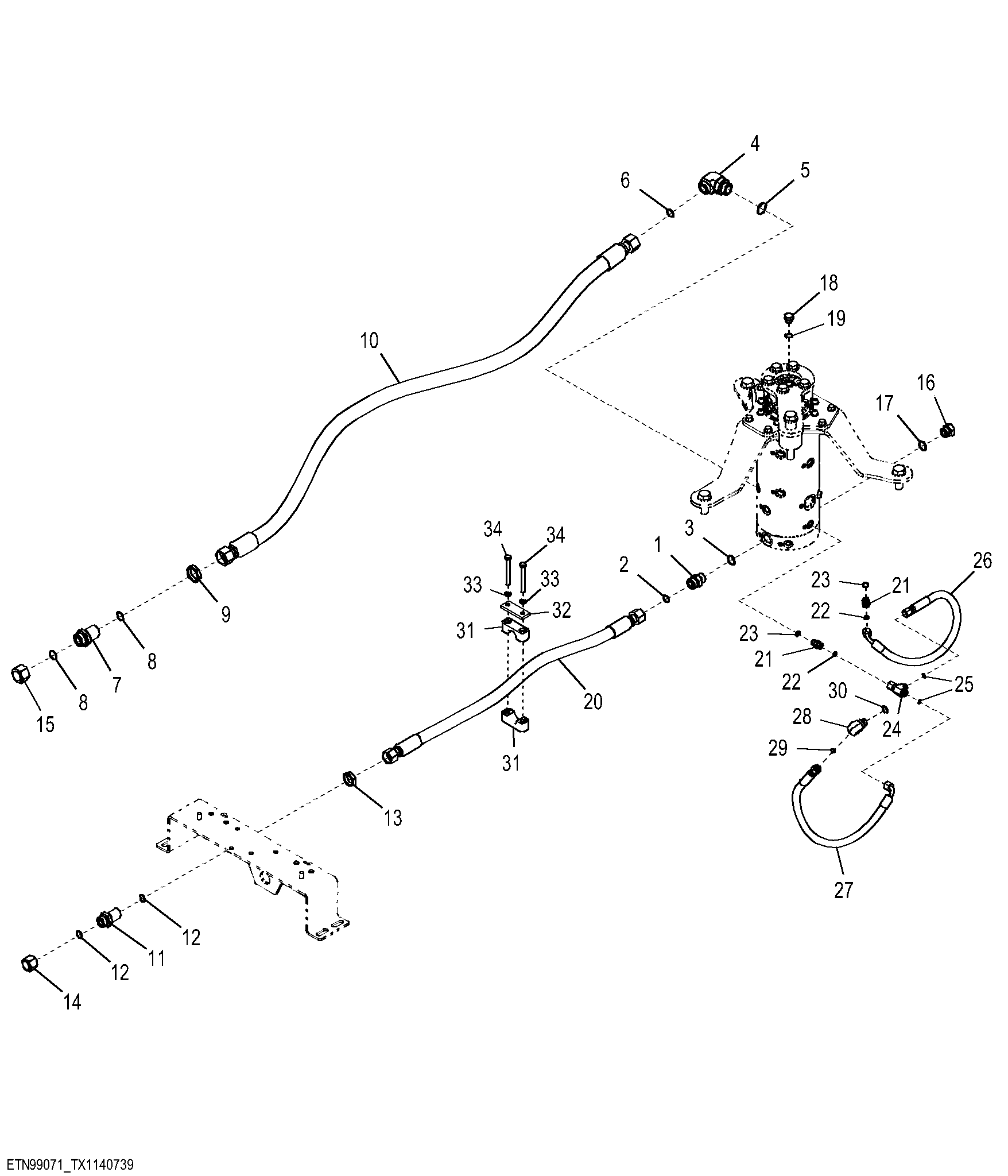

Return Plumbing, Mobile Hydraulics, Lower Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1163	1	Adapter Fitting	-
2	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
3	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
4	38H1037	1	Elbow Fitting	-
5	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
6	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
7	38H1287	1	Adapter Fitting	-
8	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
9	T78715	1	Nut	-
10	AT413551	1	Hydraulic Hose	To Rotary Manifold
11	38H1276	1	Adapter Fitting	-
12	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	T78707	1	Nut	-
14	38H1418	1	Fitting	-
15	38H1419	1	Fitting	-
16	64H1007	1	Drain Plug	-
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	64H1005	1	Drain Plug	-
19	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
20	AT413478	1	Hydraulic Hose	To Rotary Manifold
21	38H1160	2	Adapter Fitting	-
22	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	38H5105	1	Tee Fitting	-
25	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	AT413552	1	Hydraulic Hose	To Pass Rotary Manifold
27	AT413552	1	Hydraulic Hose	To Pass Rotary Manifold
28	38H1010	1	Elbow Fitting	-
29	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
31	T200233	2	Hose Clamp	-
32	T200237	1	Plate	SUB FOR 811989400
33	24M7106	2	Washer	10 X 18 X 2.500 mm
34	19M8183	2	Cap Screw	M10 X 90

Return Plumbing, Mobile Hydraulics, Lower Frame
