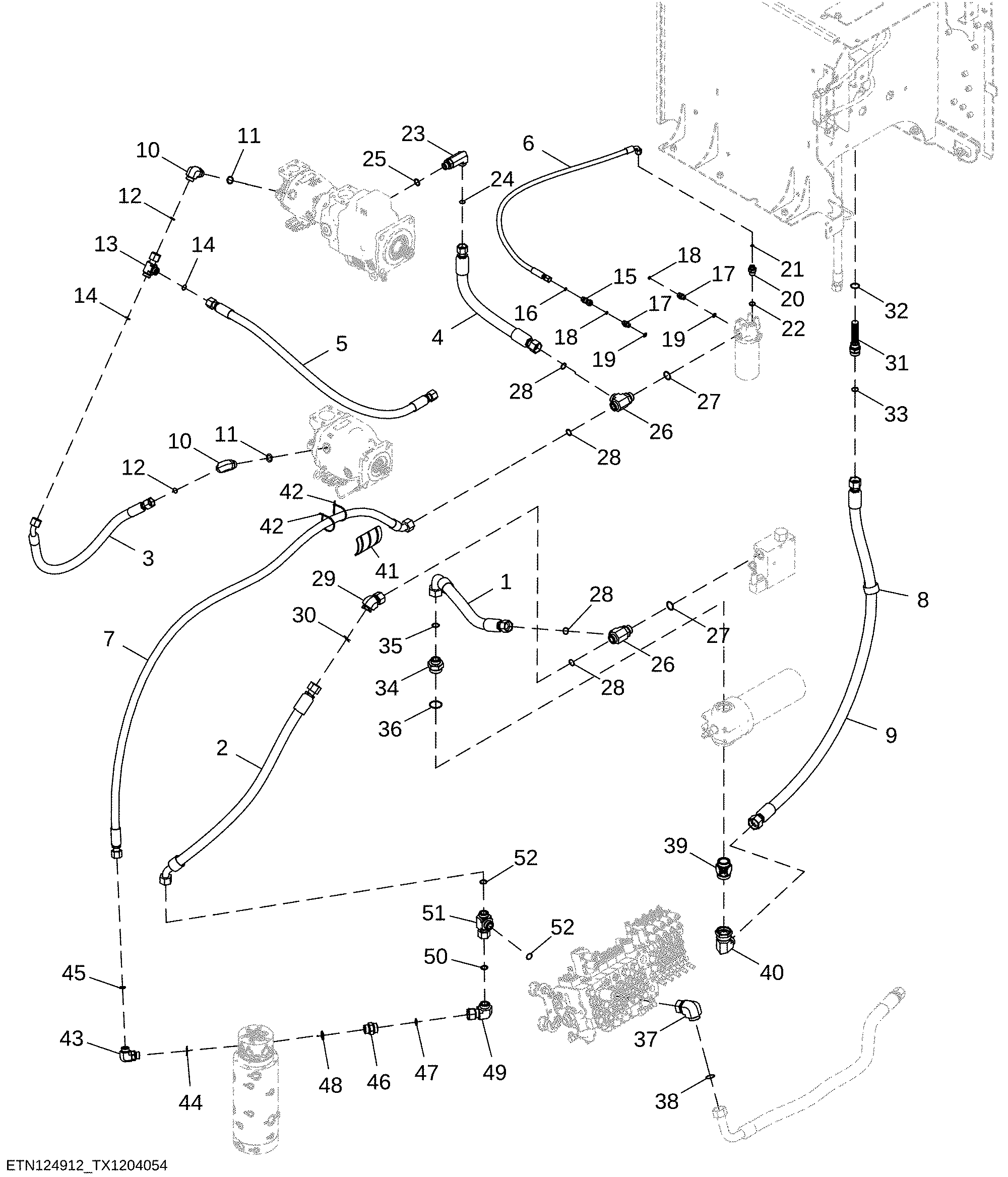

Return Plumbing, Circle Saw, Upper Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT435684	1	Hydraulic Hose	Fabricate
2	AT440841	1	Hydraulic Hose	ORDER AT523869
2	AT523869	1	Hydraulic Hose	-
3	AT443966	1	Hydraulic Hose	-
4	AT443967	1	Hydraulic Hose	Fabricate
5	AT443968	1	Hydraulic Hose	Fabricate Case Drain Filter
6	AT443969	1	Hydraulic Hose	Fabricate
7	AT443970	1	Hydraulic Hose	Fabricate, ORDER AT473256
7	AT473256	1	Hydraulic Hose	Fabricate
8	N198631	1	Clamp	-
9	AT446415	1	Hydraulic Hose	Fabricate
10	38H3007	2	Adapter Fitting	-
11	U12547	2	O-Ring	-
12	T77858	2	O-Ring	-
13	38H5122	1	Tee Fitting	-
14	T77858	2	O-Ring	-
15	T346793	1	Orifice	-
16	T77613	1	O-Ring	-
17	38H3160	2	Adapter Fitting	-
18	T77613	2	O-Ring	-
19	R26448	2	O-Ring	-
20	38H1172	1	Adapter Fitting	-
21	T77613	1	O-Ring	-
22	R26906	1	O-Ring	-
23	38H3492	1	Elbow Fitting	-
24	T77858	1	O-Ring	-
25	U12547	1	O-Ring	-
26	38H1027	2	Tee Fitting	-
27	R29936	2	O-Ring	-
28	T76938	4	O-Ring	-
29	38H5374	1	Adapter Fitting	-
30	T76938	1	O-Ring	-
31	T360580	1	Fitting	-
32	51M7048	1	O-Ring	-
33	T76938	1	O-Ring	-
34	38H1581	1	Adapter Fitting	-
35	T76938	1	O-Ring	-
36	R26773	1	O-Ring	-
37	38H5412	1	Adapter Fitting	-
38	T78612	1	O-Ring	-
39	AT463710	1	Check Valve	7 PSI
40	AT465388	1	Fitting	-
41	AT252685	1	Hose Guard	-
42	H77698	3	Tie Band	-
43	38H3007	1	Adapter Fitting	-
44	U12547	1	O-Ring	-
45	51M7128	1	O-Ring	-
46	38H3164	1	Adapter Fitting	-
47	51M7130	1	O-Ring	-
48	R29936	1	O-Ring	-
49	38H5207	1	Elbow Fitting	-
50	51M7130	1	O-Ring	-
51	38H5408	1	Adapter Fitting	-
52	51M7130	2	O-Ring	-

Return Plumbing, Circle Saw, Upper Frame
