Plumbing, Mobile Hydraulics, Upper Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

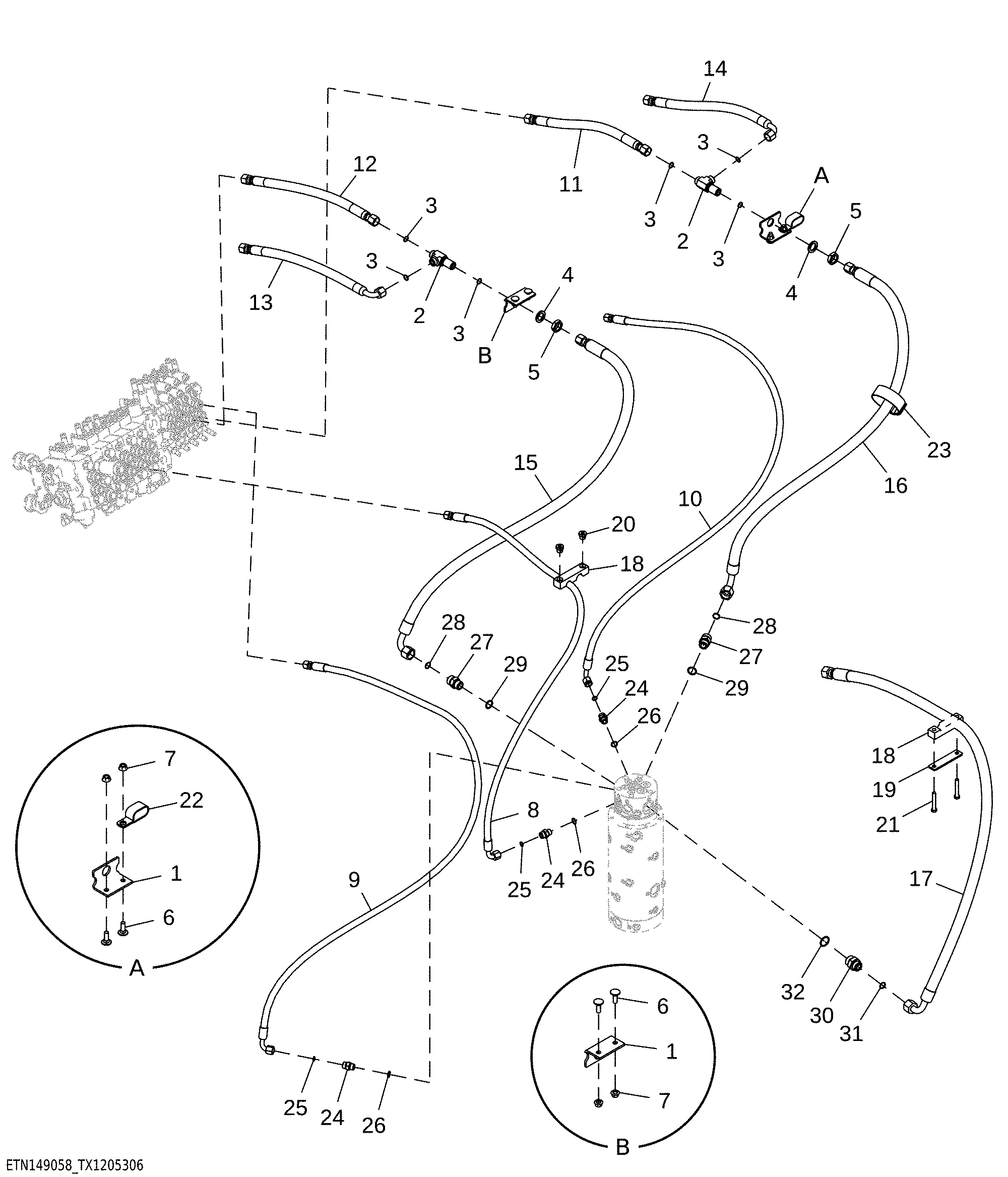

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T378471	2	Bracket	-
2	38H1599	2	Tee Fitting	-
3	T77932	6	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
4	24M7294	2	Washer	26 X 39 X 4 mm
5	38H5093	2	Nut	1"
6	03M7085	4	Bolt	M10 X 30
7	14M7296	4	Flange Nut	M10
8	AT449117	1	Hydraulic Hose	Fabricate Main Control Valve to Rotary Manifold
9	AT449995	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
10	AT449995	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
11	AT449996	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
12	AT449996	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
13	AT449997	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
14	AT449997	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
15	AT449998	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
16	AT449998	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
17	AT450000	1	Hydraulic Hose	Main Control Valve to Rotary Manifold
18	T358208	2	Hose Clamp	-
19	T327830	1	Plate	-
20	T392052	2	Nut	SUB FOR F120999
21	19M7742	2	Cap Screw	M10 X 65
22	T126299	1	Clamp	-
23	T238029	1	Adjusting Strap	-
24	38H3161	3	Adapter Fitting	-
25	T77857	3	O-Ring	-
26	R26375	3	O-Ring	-
27	38H3163	2	Adapter Fitting	-
28	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
29	U12547	2	O-Ring	-
30	38H1194	1	Adapter Fitting	-
31	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
32	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")

Plumbing, Mobile Hydraulics, Upper Frame
