Plumbing, Circle Saw with Mobile Hydraulics, Upper Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T378471	2	Bracket	-
2	03M7085	4	Bolt	M10 X 30
3	14M7296	3	Flange Nut	M10
4	38H1599	2	Tee Fitting	-
5	T77932	6	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
6	24M7294	2	Washer	26 X 39 X 4 mm
7	38H5093	2	Nut	1"
8	AT473241	1	Hydraulic Hose	Fabricate From Main Control Valve, SUB FOR AT449997
9	AT473240	1	Hydraulic Hose	Fabricate From Main Control Valve, SUB FOR AT449996
10	T126299	1	Clamp	-
11	AT449997	1	Hydraulic Hose	Fabricate
12	AT449996	1	Hydraulic Hose	Fabricate
13	AT449110	1	Hydraulic Hose	Fabricate From Main Control Valve
14	AT449110	1	Hydraulic Hose	Fabricate From Main Control Valve
15	T353406	2	Hose Clamp	-
16	T327830	1	Plate	-
17	19M7742	2	Cap Screw	M10 X 65
18	T392052	2	Nut	SUB FOR F120999
19	AT449107	1	Hydraulic Hose	Fabricate
20	AT449107	1	Hydraulic Hose	Fabricate
21	AT449108	1	Hydraulic Hose	Fabricate
22	AT449109	1	Hydraulic Hose	Fabricate From Main Control Valve
23	T238029	1	Adjusting Strap	-
24	38H1037	1	Elbow Fitting	-
25	R29936	1	O-Ring	-
26	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
27	AT440842	1	Hydraulic Hose	-
28	38H3160	1	Adapter Fitting	-
29	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	R26448	1	O-Ring	-
31	38H3161	3	Adapter Fitting	-
32	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
33	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
34	38H3163	2	Adapter Fitting	-
35	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
37	38H3164	1	Adapter Fitting	-
38	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
39	R29936	1	O-Ring	-
40	38H5207	1	Elbow Fitting	-
41	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")

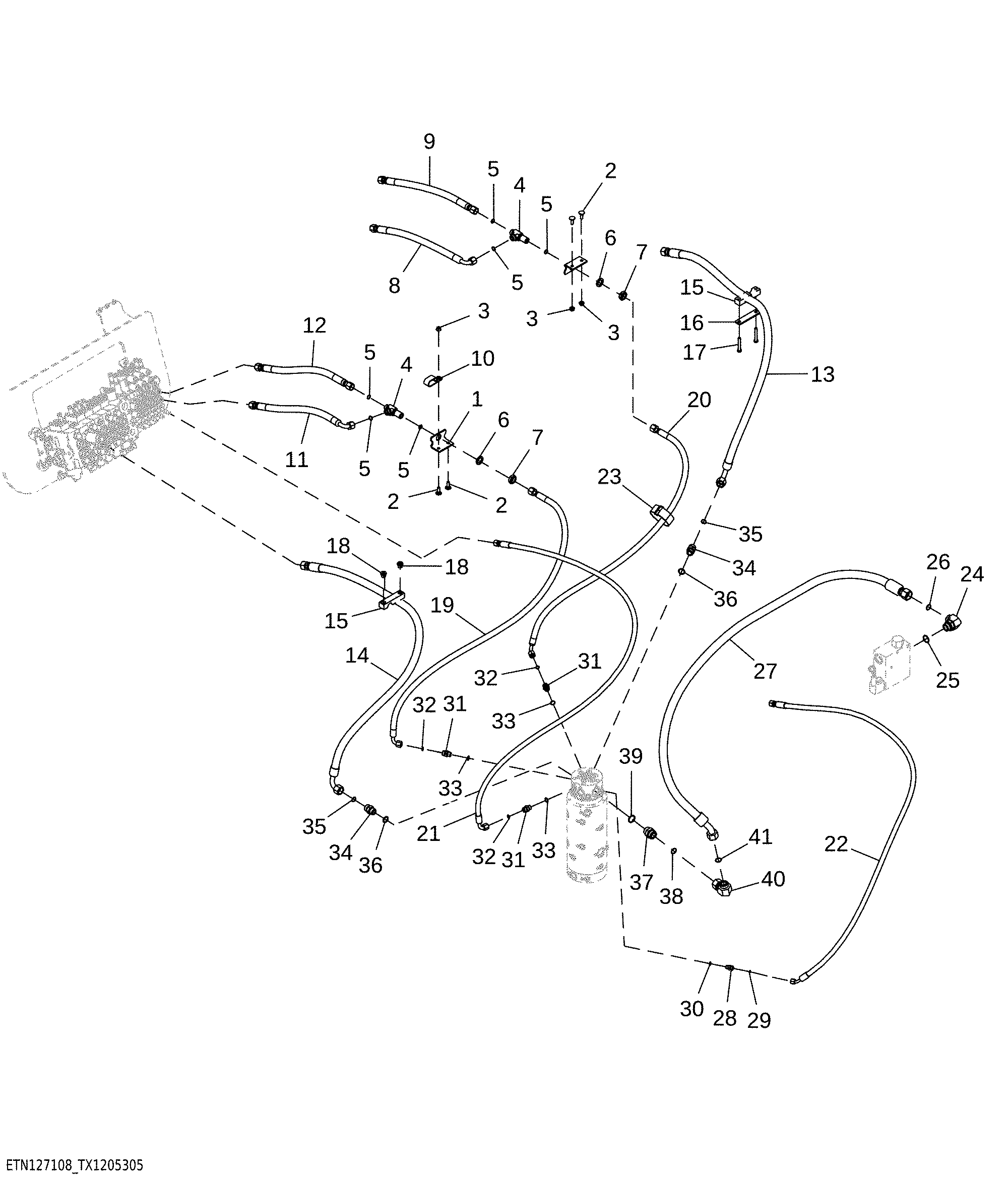

Plumbing, Circle Saw with Mobile Hydraulics, Upper Frame
