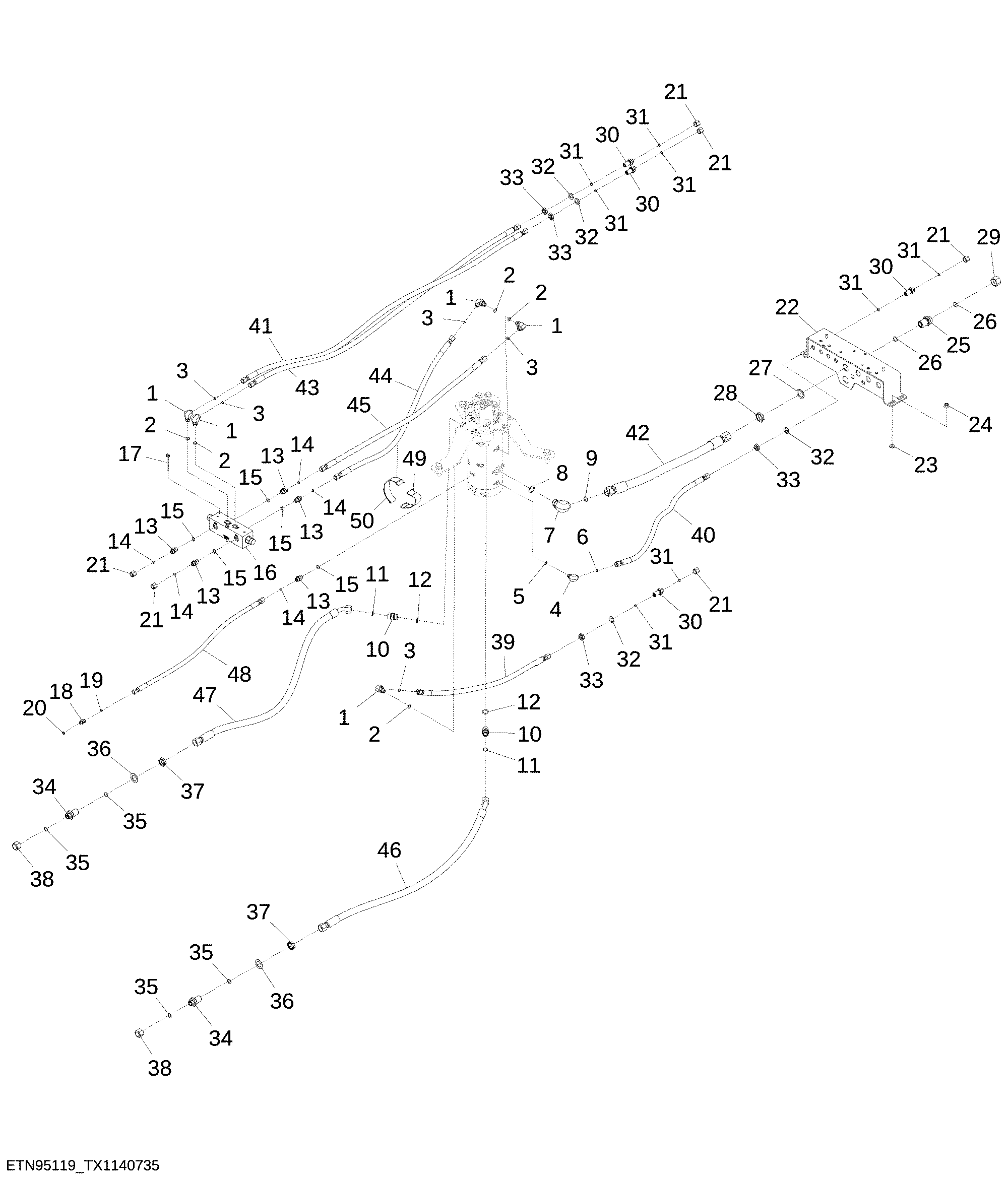

Plumbing, Circle Saw with Mobile Hydraulics, Lower Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H3005	5	Adapter Fitting	-
2	R26375	5	O-Ring	-
3	T77857	5	O-Ring	-
4	38H3314	1	Elbow Fitting	-
5	R26448	1	O-Ring	-
6	T77857	1	O-Ring	-
7	38H3037	1	Elbow Fitting	-
8	R29936	1	O-Ring	-
9	T76938	1	O-Ring	-
10	38H3163	2	Adapter Fitting	-
11	T77858	2	O-Ring	-
12	U12547	2	O-Ring	-
13	38H3161	6	Adapter Fitting	-
14	T77857	6	O-Ring	-
15	R26375	6	O-Ring	-
16	AT411383	1	Hydraulic Pressure Valve	BB Steer Selector Manifold, INCLUDES (2) AT427438 AND (2) AT427442
16	AT427438	2	Hydr./Pilot Control Valve	Pilot Valve
16	AT427442	2	Seal Kit	-
17	19M7913	2	Screw	M8 X 90
18	38H3160	1	Adapter Fitting	-
19	T77613	1	O-Ring	-
20	R26448	1	O-Ring	-
21	38H5120	6	Fitting	-
22	AT457937	1	Bracket	Valve
23	24M7240	4	Washer	13 X 25 X 3 mm
24	H137329	4	Lock Nut	-
25	38H5220	1	Adapter Fitting	-
26	T76938	2	O-Ring	-
27	24H1520	1	Washer	1-15/32" X 2" X 0.105"
28	38H5095	1	Nut	1-7/16"
29	38H1419	1	Fitting	-
30	38H5073	4	Adapter Fitting	-
31	T77857	8	O-Ring	-
32	24M7396	4	Washer	21 X 34 X 3 mm
33	38H5092	4	Nut	13/16"
34	38H5219	2	Union Fitting	-
35	T77858	4	O-Ring	-
36	24H1263	2	Washer	1-1/4" X 2" X 0.060"
37	38H5094	2	Nut	1-3/16"
38	38H1418	2	Fitting	-
39	AT473238	1	Hydraulic Hose	To Topping Saw Up, SUB FOR AT413481
40	AT413482	1	Hydraulic Hose	To Circle Saw Advance
41	AT413484	1	Hydraulic Hose	To Buck Board Down
42	AT413480	1	Hydraulic Hose	To Circle Saw Supply
43	AT413484	1	Hydraulic Hose	To Buck Board Up
44	AT413474	1	Hydraulic Hose	To Rotary Manifold
45	AT413474	1	Hydraulic Hose	To Rotary Manifold
46	AT413475	1	Hydraulic Hose	To Rotary Manifold
47	AT413475	1	Hydraulic Hose	To Rotary Manifold
48	AT413511	1	Hydraulic Hose	To Rotary Manifold
49	T256668	1	Adjusting Strap	-
50	T238029	1	Adjusting Strap	-

Plumbing, Circle Saw with Mobile Hydraulics, Lower Frame
