Открытый узел

Pilot Plumbing, Mobile Hydraulics

Pilot Plumbing, Mobile Hydraulics

Pilot Plumbing, Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

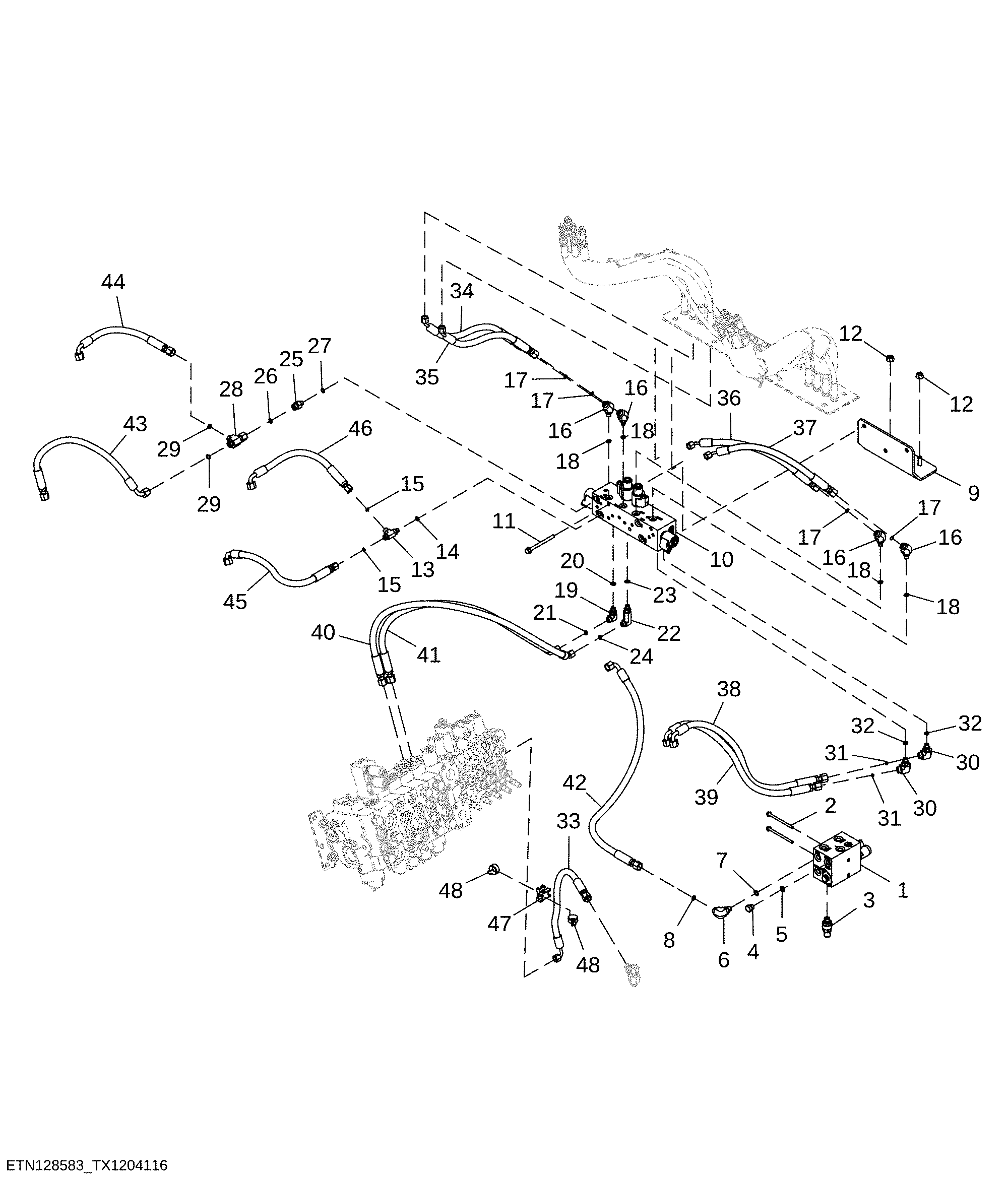

Pilot Plumbing, Mobile Hydraulics

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT411393	1	Manifold	Shut Off Valve Components on Separate Page
2	R189128	2	Screw	-
3	RE581543	1	Pressure Sensor	69 Bar
4	64H1004	1	Drain Plug	-
5	R26448	1	O-Ring	-
6	38H3004	1	Adapter Fitting	-
7	R26448	1	O-Ring	-
8	T77613	1	O-Ring	-
9	AT446586	1	Bracket	Pilot Diverter
10	AT411382	1	Hydraulic Pressure Valve	Pilot Diverter Manifold Components on Separate Page
11	19M7970	3	Screw	M8 X 100
12	14M7296	2	Flange Nut	M10
13	38H1022	1	Tee Fitting	-
14	R28782	1	O-Ring	-
15	T77814	2	O-Ring	-
16	38H1564	4	Elbow Fitting	-
17	T77613	4	O-Ring	-
18	R28782	4	O-Ring	-
19	38H1003	1	Elbow Fitting	-
20	R28782	1	O-Ring	-
21	T77814	1	O-Ring	-
22	38H3462	1	Elbow Fitting	-
23	R28782	1	O-Ring	-
24	T77814	1	O-Ring	-
25	38H3309	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	R28782	1	O-Ring	-
28	38H5105	1	Tee Fitting	-
29	T77613	2	O-Ring	-
30	38H3435	2	Adapter Fitting	-
31	T77613	2	O-Ring	-
32	R28782	2	O-Ring	-
33	AT413537	1	Hydraulic Hose	Hydraulic Pilot Control Valve
34	AT449724	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
35	AT449724	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
36	AT449725	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
37	AT449725	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
38	AT449726	1	Hydraulic Hose	From Main Control Valve
39	AT449726	1	Hydraulic Hose	From Main Control Valve
40	AT449729	1	Hydraulic Hose	Solenoid Hydraulic Valve to Hydraulic Pilot Control Valve
41	AT449735	1	Hydraulic Hose	Solenoid Hydraulic Valve to Hydraulic Pilot Control Valve
42	AT413514	1	Hydraulic Hose	Hydraulic Pilot Control Valve to SAW Valve
43	AT449730	1	Hydraulic Hose	From Main Control Valve, ORDER AT413525
43	AT413525	1	Hydraulic Hose	-
44	AT449734	1	Hydraulic Hose	Solenoid Hydraulic Valve
45	AT449733	1	Hydraulic Hose	From Main Control Valve
46	AT449732	1	Hydraulic Hose	From Main Control Valve
47	AN209168	1	Swivel	-
48	H224073	2	Tie Band	-
