Pilot Plumbing, Circle Saw with Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT411384	1	Manifold	Circle Saw, Mobile Hydraulics, Pilot Shutoff Components on Separate Page
2	R189128	2	Screw	-
3	RE581543	1	Pressure Sensor	69 Bar
4	38H3023	1	Tee Fitting	-
5	R26448	1	O-Ring	-
6	T77613	2	O-Ring	-
7	38H3160	1	Adapter Fitting	-
8	T77613	1	O-Ring	-
9	R26448	1	O-Ring	-
10	AT446586	1	Bracket	Pilot Diverter
11	14M7296	2	Flange Nut	M10
12	AT411382	1	Hydraulic Pressure Valve	Pilot Diverter Manifold Components on Separate Page
13	19M7970	3	Screw	M8 X 100
14	38H3462	1	Elbow Fitting	-
15	R28782	1	O-Ring	-
16	T77814	1	O-Ring	-
17	38H1159	2	Adapter Fitting	-
18	T77814	2	O-Ring	-
19	R28782	2	O-Ring	-
20	38H1564	4	Elbow Fitting	-
21	T77613	4	O-Ring	-
22	R28782	4	O-Ring	-
23	38H1003	1	Elbow Fitting	-
24	R28782	1	O-Ring	-
25	T77814	1	O-Ring	-
26	38H3435	2	Adapter Fitting	-
27	T77613	2	O-Ring	-
28	R28782	2	O-Ring	-
29	AT449725	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
30	AT413537	1	Hydraulic Hose	Hydraulic Pilot Control Valve
31	AT449724	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
32	AT449724	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
33	AT449725	1	Hydraulic Hose	Solenoid Hydraulic Valve Hose to Hydraulic Hose Hydraulic Control Lines
34	AT449726	1	Hydraulic Hose	From Main Control Valve
35	AT449726	1	Hydraulic Hose	From Main Control Valve
36	AT449729	1	Hydraulic Hose	Solenoid Hydraulic Valve to Hydraulic Pilot Control Valve
37	AT449735	1	Hydraulic Hose	Solenoid Hydraulic Valve to Hydraulic Pilot Control Valve
38	AT413514	1	Hydraulic Hose	Hydraulic Pilot Control Valve to SAW Valve
39	AT449778	1	Hydraulic Hose	From Main Control Valve
40	AT449731	1	Hydraulic Hose	From Main Control Valve
41	38H3004	1	Adapter Fitting	-
42	R26448	1	O-Ring	-
43	T77613	1	O-Ring	-
44	AT463973	1	Hydraulic Hose	Hydraulic Pilot Control Valve to SAW Valve
45	T76719	1	Clamp	-
46	38H1093	2	Elbow Fitting	-
47	T77814	2	O-Ring	-
48	AT423103	1	Hydraulic Hose	Pilot Shutoff to Pass Rotary Manifold
49	38H3161	1	Adapter Fitting	-
50	T77857	1	O-Ring	-
51	R26375	1	O-Ring	-

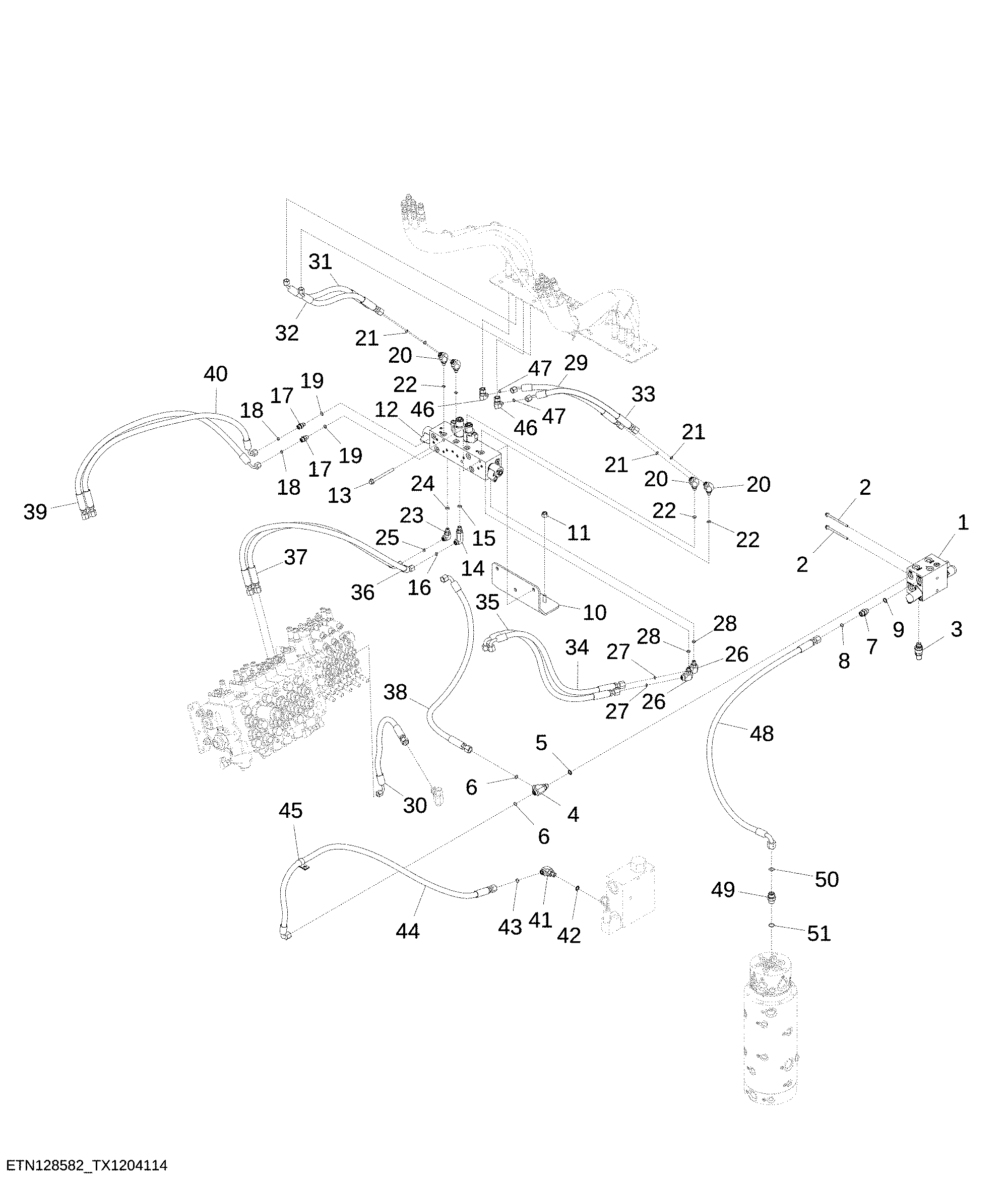

Pilot Plumbing, Circle Saw with Mobile Hydraulics
