Открытый узел

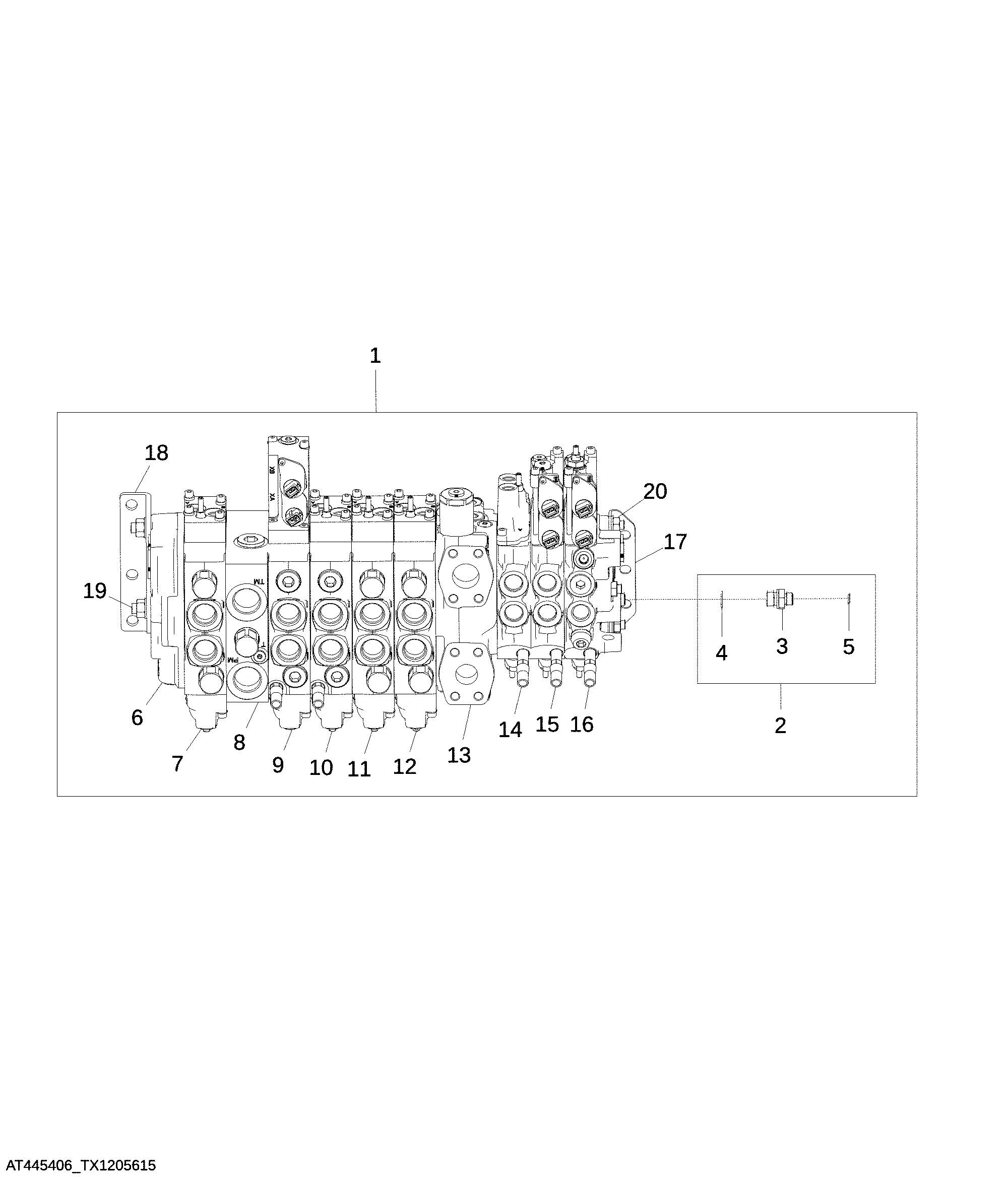

Main Control Valve Components, 8 Section, Delimber

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT514446	1	Control Valve	SUB FOR AT445406, INCLUDES F437598
2	AT522654	1	Fitting	-
3	T452855	1	Adapter Fitting	-
4	T452866	1	O-Ring	-
5	T77814	1	O-Ring	-
6	AT425762	1	Valve	Outlet Valve Section Components on Separate Page
7	AT425761	1	Valve	Swing Valve Section Components on Separate Page, NLA; ORDER AT529074
7	AT521763	1	Hyd Actuated Control Valve	Swing Valve Section Components on Separate Page, NLA; ORDER AT529074
7	AT529074	1	Hyd Actuated Control Valve	Swing Valve Section Components on Separate Page
8	AT449429	1	Valve	Separator Valve Section Components on Separate Page
9	AT425758	1	Valve	Saw Valve Section Components on Separate Page
9	AT521761	1	Hyd Actuated Control Valve	Saw Valve Section Components on Separate Page
10	AT463618	1	Hyd Actuated Control Valve	Grapple Clamp Valve Section Components on Separate Page
11	AT449428	1	Hyd Actuated Control Valve	Boom Valve Section Components on Separate Page, NLA; ORDER AT521762
11	AT521762	1	Hyd Actuated Control Valve	Boom Valve Section Components on Separate Page
12	AT449427	1	Hyd Actuated Control Valve	Jib Valve Section Components on Separate Page
12	AT521760	1	Hyd Actuated Control Valve	Jib Valve Section Components on Separate Page
13	AT449426	1	Valve	Middle Inlet Components on Separate Page
13	AT515272	1	Hyd Actuated Control Valve	Middle Inlet Components on Separate Page
14	AT463619	1	Valve	Grapple Rotate Valve Section Components on Separate Page
15	AT464003	1	Hyd Actuated Control Valve	Stabilizer Valve Section Components on Separate Page
16	AT418629	1	Hyd Actuated Control Valve	Knife Valve Section Components on Separate Page
17	AT350322	1	Bracket	Mounting Bracket Kit Includes Washers, Nuts and Bracket For 3 L90 Sections
18	T237314	1	Nut	Mounting Bracket Kit Includes Washers, Nuts and Bracket For 5 Slim Sections
19	AT522649	1	Tie Rod Assembly	LGTH = 379 mm, Tie Rod Kit For 5 Slim Sections Includes Three Rods
20	F437598	1	Bolt	LGTH = 186 mm, 3 Section Tie Rod Kit Includes Three Rods

Main Control Valve Components, 8 Section, Delimber

Нет текстового описания
