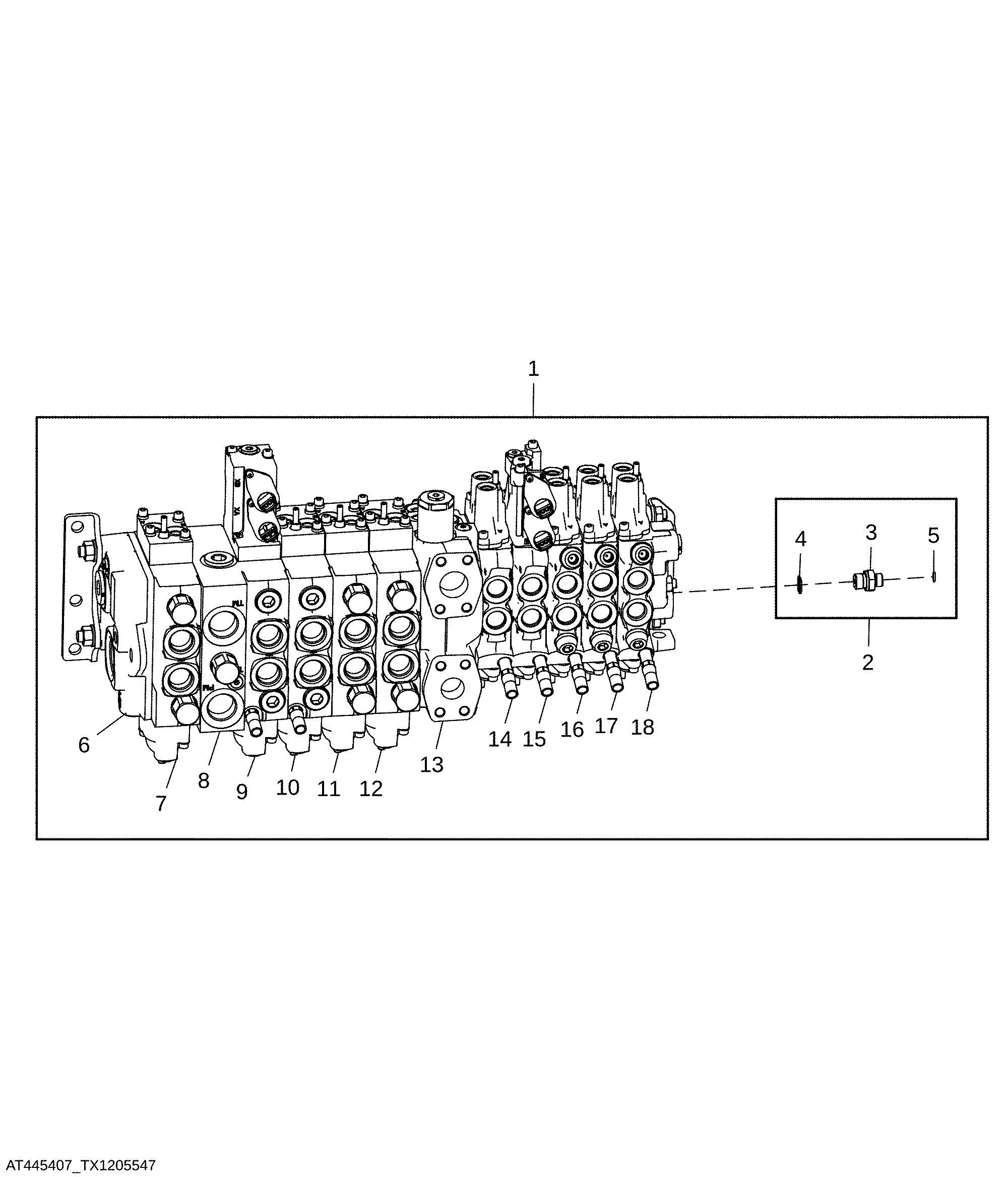

Main Control Valve, 10 Section, Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT514448	1	Control Valve	Line Fill, SUB FOR AT445407 AND AT476598; INCLUDES F437598
1	F437598	1	Bolt	-
1	-	1	Part 1	ORDER AT445407
2	AT522654	1	Fitting	-
3	T452855	1	Adapter Fitting	-
4	T452866	1	O-Ring	-
5	T77814	1	O-Ring	-
6	AT425762	1	Valve	Outlet Components Listed On Separate Page
7	AT425761	1	Valve	Swing Components Listed on Separate Page
7	AT521763	1	Hyd Actuated Control Valve	Swing Components Listed on Separate Page, NLA; ORDER AT529074
7	AT529074	1	Hyd Actuated Control Valve	Swing Components Listed on Separate Page
8	AT449429	1	Valve	Separator Components Listed On Separate Page
9	AT425758	1	Valve	Grapple Saw Components Listed On Separate Page
9	AT521761	1	Hyd Actuated Control Valve	Grapple Saw Components Listed On Separate Page
10	AT463618	1	Hyd Actuated Control Valve	Grapple Clamp Components Listed On Separate Page
11	AT449428	1	Hyd Actuated Control Valve	Boom Components Listed On Separate Page
12	AT449427	1	Hyd Actuated Control Valve	Jib Components Listed On Separate Page
12	AT521760	1	Hyd Actuated Control Valve	Jib Components Listed On Separate Page
13	AT449426	1	Valve	Middle Inlet Components Listed On Separate Page
13	AT515272	1	Hyd Actuated Control Valve	Middle Inlet Components Listed On Separate Page
14	AT463619	1	Valve	Grapple Rotate Components Listed On Separate Page, USE WITH AT476598
15	AT464003	1	Hyd Actuated Control Valve	Stabilizers Components Listed On Separate Page, USE WITH AT476598
16	AT425754	1	Valve	Travel Components Listed On Separate Page
17	AT478206	1	Valve	Travel Components Listed On Separate Page, USE WITH AT476598
17	AT522752	1	Hyd Actuated Control Valve	Travel Components Listed On Separate Page
17	AT425753	1	Valve	Travel Components Listed On Separate Page, USE WITH AT445407
18	AT478208	1	Valve	Steer Components Listed On Separate Page, USE WITH AT476598
18	AT425764	1	Valve	Steer Components Listed On Separate Page, USE WITH AT445407

Main Control Valve, 10 Section, Mobile Hydraulics
