Открытый узел

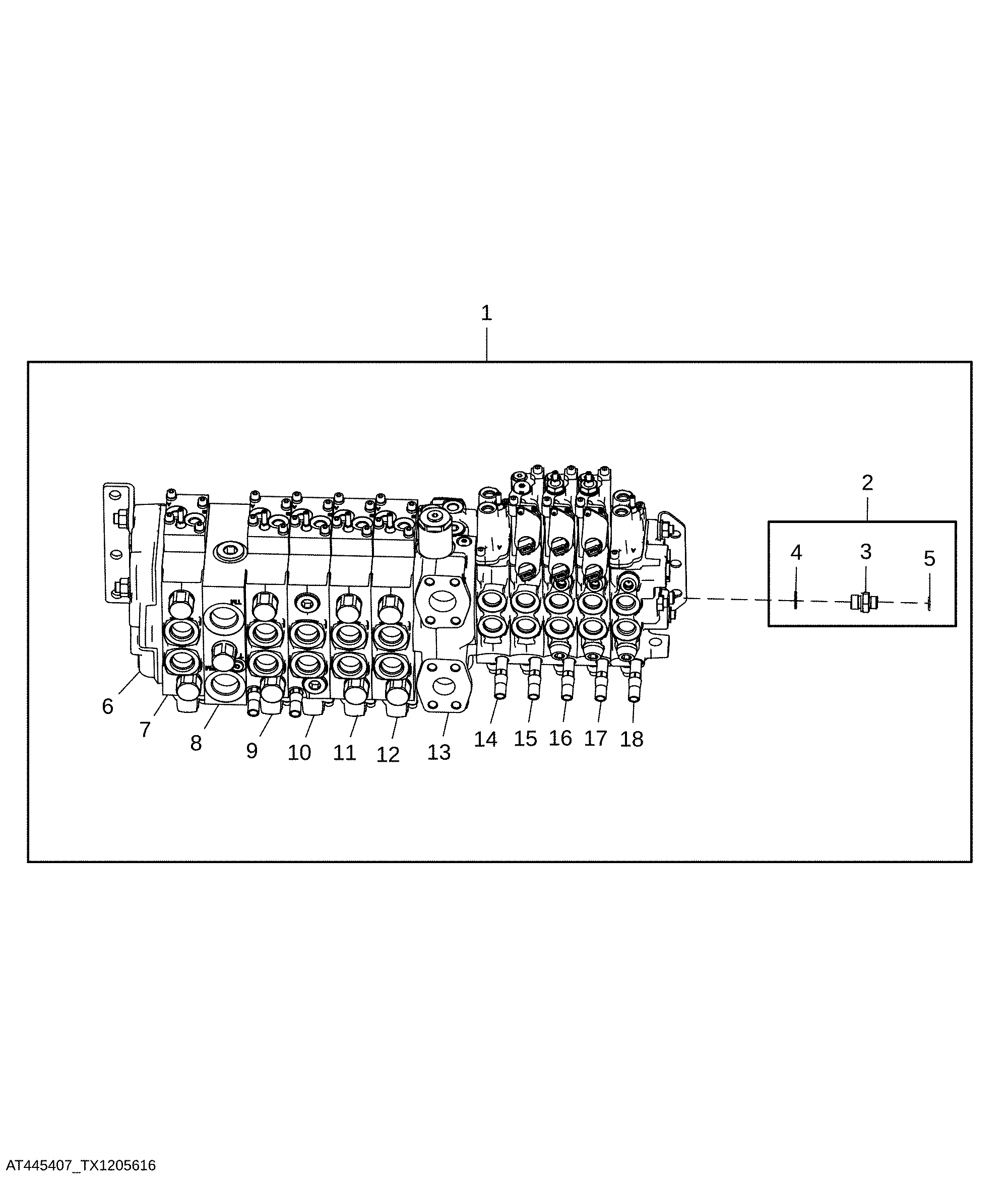

Main Control Valve, 10 Section, Circle Saw with Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT514449	1	Control Valve	Line Fill, SUB FOR AT445407 AND AT476599
1	-	1	Part 1	ORDER AT445407, (2) 38H3160, (2) 38H3212, AT427515, (2) F030957, F038875, F436180, (4) R26448, (4) T77613 AND T237320
2	AT522654	1	Fitting	-
3	T452855	1	Adapter Fitting	-
4	T452866	1	O-Ring	-
5	T77814	1	O-Ring	-
6	AT425762	1	Valve	Outlet Components Listed On Separate Page
7	AT425761	1	Valve	Swing Components Listed on Separate Page
7	AT521763	1	Hyd Actuated Control Valve	Swing Components Listed on Separate Page, NLA; ORDER AT529074
7	AT529074	1	Hyd Actuated Control Valve	Swing Components Listed on Separate Page
8	AT449429	1	Valve	Separator Components Listed On Separate Page
9	AT478207	1	Valve	Travel Components Listed On Separate Page, USE WITH AT476599 AND AT514449
9	AT425758	1	Valve	Saw Control Components Listed On Separate Page, USE WITH AT445407
10	AT463618	1	Hyd Actuated Control Valve	Grapple Clamp Components Listed On Separate Page
11	AT449428	1	Hyd Actuated Control Valve	Boom Components Listed On Separate Page
11	AT521762	1	Hyd Actuated Control Valve	Boom Components Listed On Separate Page
12	AT449427	1	Hyd Actuated Control Valve	Jib Components Listed On Separate Page
12	AT521760	1	Hyd Actuated Control Valve	Jib Components Listed On Separate Page
13	AT449426	1	Valve	Middle Inlet Components Listed On Separate Page
13	AT515272	1	Hyd Actuated Control Valve	Middle Inlet Components Listed On Separate Page
14	AT463619	1	Valve	Grapple Rotate Components Listed On Separate Page, USE WITH AT476599 AND AT514449
15	AT464003	1	Hyd Actuated Control Valve	Stabilizers Components Listed On Separate Page, USE WITH AT476599 AND AT514449
16	AT425754	1	Valve	Knife Control Components Listed On Separate Page, USE WITH AT445407
16	AT425764	1	Valve	Circle Saw, Advance/Retreat Components Listed On Separate Page, USE WITH AT476599
16	AT522666	1	Valve	Circle Saw, Advance/Retreat Components Listed On Separate Page
17	AT425753	1	Valve	Buck Board Components Listed On Separate Page
18	AT478208	1	Valve	Steer Components Listed On Separate Page, USE WITH AT476599 AND AT514449
18	AT425764	1	Valve	Circle Saw, Advance/Retreat Components Listed On Separate Page, USE WITH AT445407

Main Control Valve, 10 Section, Circle Saw with Mobile Hydraulics

Нет текстового описания
