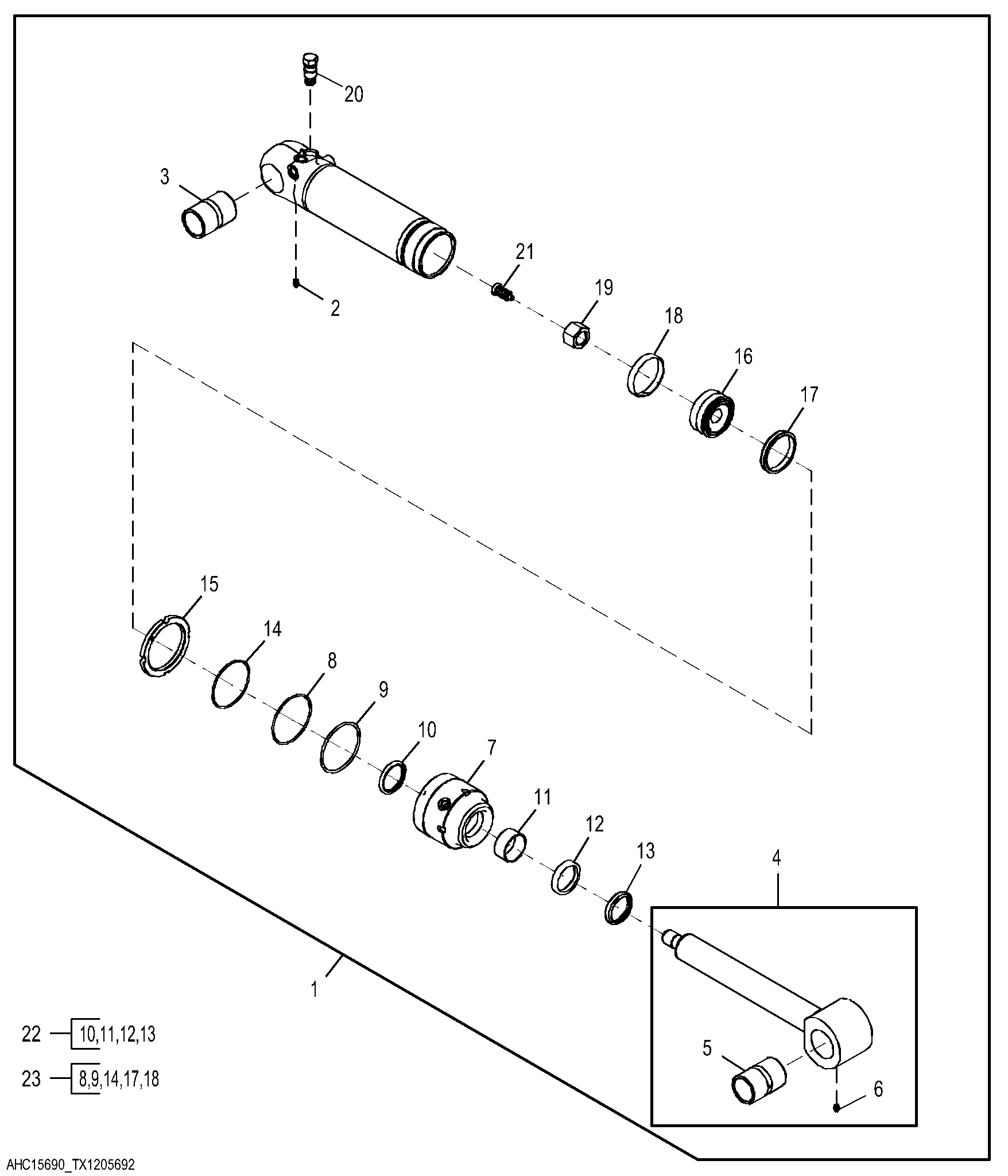

Hydraulic Cylinder Components, 4552 Grapple (52 in)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AHC21065	1	Hydraulic Cylinder	-
1	AHC15690	1	Hydraulic Cylinder	ORDER AHC21065
2	JD7798	1	Lubrication Fitting	-
3	HC13836	1	Bushing	-
4	AHC15686	1	Hydraulic Cylinder Rod	-
5	HC13836	1	Bushing	-
6	JD7798	1	Lubrication Fitting	-
7	HC13832	1	Hydr. Cylinder Rod Guide	-
8	H152065	1	Back-Up Ring	-
9	E49244	1	O-Ring	-
10	AH146563	1	Seal	Buffer
11	H152796	1	Wear Ring	-
12	H152205	1	Seal	-
13	AHC10932	1	Seal	Heavy Duty Wiper
14	U43360	1	O-Ring	-
15	H180430	1	Nut	-
16	H232377	1	Piston	USE WITH AHC15690
16	HC16777	1	Piston	USE WITH AHC21065
17	AHC17350	1	Seal	USE WITH AHC21065
17	RE20343	1	Seal	USE WITH AHC15690
18	R81775	1	Wear Ring	-
19	H151815	1	Nut	-
20	AHC14745	1	Hydr./Pilot Control Valve	INCLUDES AT355558
20	AT355558	1	Seal Kit	-
21	AH213394	1	Screw	-
22	AHC13362	1	Hydraulic Cylinder Kit	Rod, INCLUDES AH146559
22	AH146559	1	Seal	-
23	AHC19978	1	Hydraulic Cylinder Kit	Bore, USE WITH AHC21065; INCLUDES H210686, R81862, R83577, R91731 AND U42703
23	AHC19515	1	Hydraulic Cylinder Kit	Bore, USE WITH AHC15690; INCLUDES H210686, R81862, R83577, R91731 AND U42703; SUB FOR AH212101
23	H210686	1	O-Ring	-
23	R81862	1	Back-Up Ring	-
23	R83577	1	O-Ring	-
23	R91731	1	Ring	-
23	U42703	1	O-Ring	-

Hydraulic Cylinder Components, 4552 Grapple (52 in)
