Открытый узел

Ground Saw Plumbing, Mobile Hydraulics, Lower Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H3005	3	Adapter Fitting	-
2	R26375	3	O-Ring	-
3	T77857	3	O-Ring	-
4	38H3037	1	Elbow Fitting	-
5	R29936	1	O-Ring	-
6	T76938	1	O-Ring	-
7	38H3163	2	Adapter Fitting	-
8	T77858	2	O-Ring	-
9	U12547	2	O-Ring	-
10	AT413474	1	Hydraulic Hose	To Rotary Manifold
11	AT413474	1	Hydraulic Hose	To Rotary Manifold
12	AT413475	1	Hydraulic Hose	To Rotary Manifold
13	AT413475	1	Hydraulic Hose	To Rotary Manifold
14	38H5219	2	Union Fitting	-
15	T77858	4	O-Ring	-
16	24H1263	2	Washer	1-1/4" X 2" X 0.060"
17	38H5094	2	Nut	1-3/16"
18	38H1418	2	Fitting	-
19	38H5073	3	Adapter Fitting	-
20	T77857	6	O-Ring	-
21	24M7396	3	Washer	21 X 34 X 3 mm
22	38H5092	3	Nut	13/16"
23	38H5120	3	Fitting	-
24	T376281	1	Bracket	-
25	19M7788	2	Screw	M12 X 25
26	38H5220	1	Adapter Fitting	-
27	T76938	2	O-Ring	-
28	24H1520	1	Washer	1-15/32" X 2" X 0.105"
29	38H5095	1	Nut	1-7/16"
30	38H1419	1	Fitting	-
31	AT413553	1	Hydraulic Hose	To Rotary Manifold
32	T200233	2	Hose Clamp	-
33	T200237	1	Plate	SUB FOR 811989400
34	24M7106	2	Washer	10 X 18 X 2.500 mm
35	19M8183	2	Cap Screw	M10 X 90
36	AT459563	1	Hydraulic Hose	To Rotary Manifold
37	T206940	1	Clamp	-
38	T256668	1	Adjusting Strap	-
39	T238029	1	Adjusting Strap	-

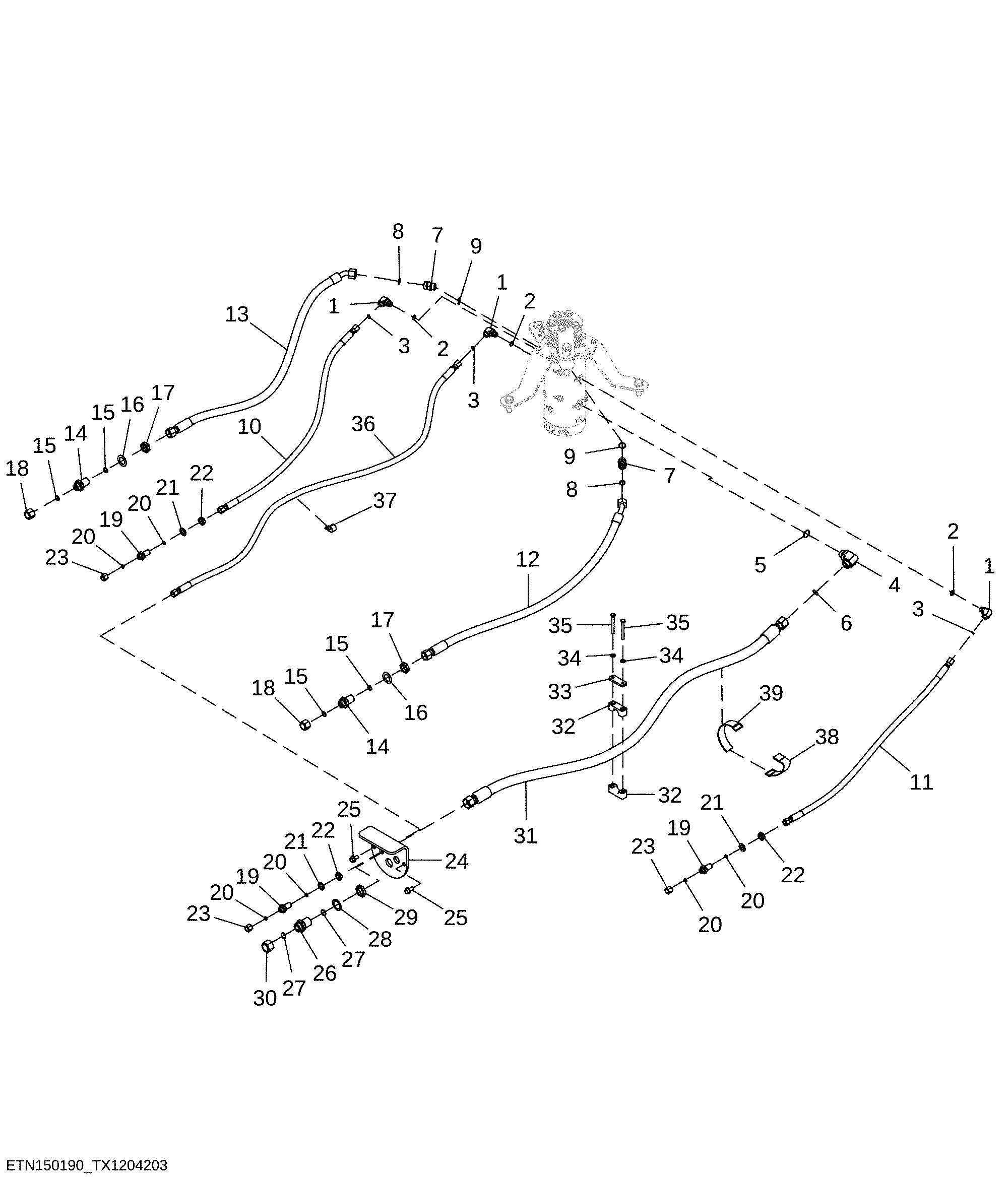

Ground Saw Plumbing, Mobile Hydraulics, Lower Frame
