Console Controls, Mobile Hydraulics (381571 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT513447	1	Control Console	-
2	T196077	8	Nut	-
3	T148409	2	Nut	-
4	T148411	2	Nut	-
5	T233661	1	Label	HVAC Controls
6	AT195301	1	Switch	Starter
7	AT195302	1	Key	-
8	AT467544	1	Toggle/Rocker Switch	Work Light Switch
9	AT467545	1	Toggle/Rocker Switch	A/C Switch
10	AT467543	1	Toggle/Rocker Switch	Throttle Hold Mode (OFF - ON - AUTO)
11	AT467551	1	Toggle/Rocker Switch	Assembly Stabilizer Control
12	AT467547	1	Toggle/Rocker Switch	Washer
13	AT467546	1	Toggle/Rocker Switch	Wiper
14	AT467549	2	Toggle/Rocker Switch	Stabilizer Switch, LH
15	AT467548	2	Toggle/Rocker Switch	Stabilizer Switch, RH
16	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch
17	RE46742	1	Control	Temperature
18	L76804	1	Knob	-
18	L76805	1	Insert	-
18	AL76568	3	Knob	INCLUDES L78497, L76805, L76804
18	L78497	1	Insert	-
19	19M7786	4	Screw	M10 X 30
20	19M7775	5	Screw	M6 X 16
21	T233671	1	Bulkhead Wiring Harness	-
22	24M7296	2	Washer	10.500 X 30 X 2.500 mm
23	24M7139	2	Washer	6.400 X 18 X 1.600 mm
24	GY20126	2	Socket Outlet	-
25	M115279	2	Plug	-
26	-	1	Part 29	MAKE FROM T59938, CTL 690 mm (2.26ft)
27	T157172	1	Label	Key Start
28	-	2	Part 31	MAKE FROM T58056, CTL 366 mm (1.2ft)
29	T209627	1	Clamp	-
30	R44165	2	Lock Nut	-
31	T218622	1	Label	Hand Throttle
32	AT340550	1	Potentiometer	Engine Speed
33	AT312606	1	Sensor	-
34	R39554	1	Switch	Push Button Start Switch
35	T55501	1	Cap	-
36	14M7397	1	Lock Nut	M6
37	T226427	1	Washer	-
38	R78035	1	Push Nut	-
39	AT467552	1	Toggle/Rocker Switch	Assembly Auto Retract Enable Circle Saw
40	AT419212	1	Cab Wiring Harness	Mobile Hydraulics
41	57M10868	1	Elec. Connector Housing	X116, 8 Pin Receptacle
41	R78066	3	Elec. Connector Terminal	-
41	R78069	5	Elec. Connector Cavity Plug	-
41	57M7680	1	Elec. Connector Terminal	-
42	57M9032	1	Elec. Connector Housing	X117, 8 Socket Plug
42	R78065	2	Elec. Connector Terminal	-
42	R78069	6	Elec. Connector Cavity Plug	-
42	57M8011	1	Elec.Connect Locking Device	-
43	M111583	1	Plug	-
44	T355668	1	Panel	-
45	-	1	Part 54	MAKE FROM T59938, CTL 82.3 mm (0.27ft)
46	AT519622	1	Fuse Box	Components On Separate Page
46	AT481946	1	Fuse Box	Components On Separate Page, ORDER AT519622
47	AT451691	2	Bracket	-
48	19M7862	4	Screw	M6 X 20
49	AT325667	1	Knob	-
50	AT467554	1	Toggle/Rocker Switch	Alarm Cancel Switch
51	H77698	1	Tie Band	-
52	R44302	7	Tie Band	-
53	19M8553	4	Screw	M6 X 16
54	AT471493	1	Switch	HVAC Controls
55	R44342	1	Nut	-
56	24H1441	1	Washer	1-1/64" X 1-1/2" X 0.048"
57	H77698	6	Tie Band	-
58	T186793	1	Label	Gray Circle
59	T332844	1	Label	Left Hand (LH) Joystick Button Configuration
60	T332843	1	Label	Right Hand (RH) Joystick Delimber, Circle Saw
61	T428608X00	1	Label	Right Hand (RH) Joystick Mobile Hydraulics, Circle Saw
62	AT508609	1	Cab Wiring Harness	Components On Separate Page
63	-	1	Part 73	MAKE FROM T58056, CTL 366 mm (1.2ft)

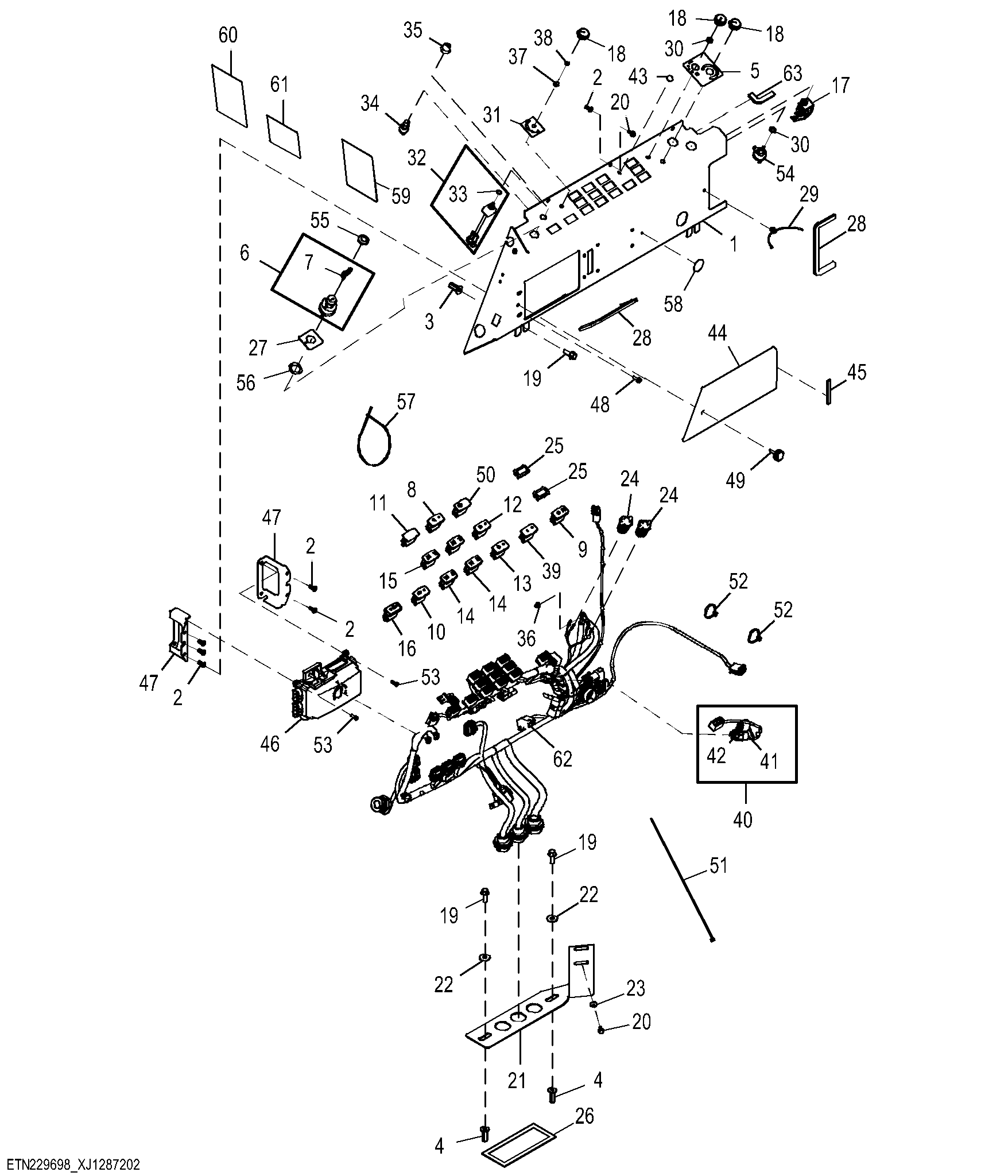

Console Controls, Mobile Hydraulics (381571 - )
