Открытый узел

Console Controls, Mobile Hydraulics ( - 381570)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T196077	8	Nut	-
2	T148409	2	Nut	-
3	T148411	2	Nut	-
4	T233661	1	Label	HVAC Controls
5	T352565	1	Control Console	-
6	AT195301	1	Switch	Starter
7	AT195302	1	Key	-
8	AT467544	1	Toggle/Rocker Switch	Work Light Switch, SUB FOR AT303862
9	AT467545	1	Toggle/Rocker Switch	Air Conditioning (A/C) Switch, SUB FOR AT303865
10	AT467543	1	Toggle/Rocker Switch	Switch, Throttle Hold Mode (OFF - ON - AUTO), SUB FOR AT302732
11	AT467551	1	Toggle/Rocker Switch	Stabilizer Control, SUB FOR AT440387
12	AT467547	1	Toggle/Rocker Switch	Washer, SUB FOR AT347136
13	AT467546	1	Toggle/Rocker Switch	Wiper, SUB FOR AT347133
14	AT467549	2	Toggle/Rocker Switch	Stabilizer Switch, LH, SUB FOR AT347141
15	AT467548	2	Toggle/Rocker Switch	Stabilizer Switch, RH, SUB FOR AT347140
16	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch
17	RE46742	1	Control	Temperature
18	AL76568	3	Knob	-
19	19M7786	4	Screw	M10 X 30
20	19M7775	5	Screw	M6 X 16
21	T233671	1	Bulkhead Wiring Harness	-
22	24M7296	2	Washer	10.500 X 30 X 2.500 mm
23	24M7139	2	Washer	6.400 X 18 X 1.600 mm
24	GY20126	2	Socket Outlet	-
25	M115279	2	Plug	-
26	-	1	Part 26	Foam Electrical Bulkhead Seal, MAKE FROM T59938; CTL 690 mm (2.26 ft)
27	T157172	1	Label	Key Start
28	-	2	Part 28	Edging, Sealing Trim, MAKE FROM T58056; CTL 366 mm (1.20 ft)
29	T209627	1	Clamp	-
30	R44165	2	Lock Nut	-
31	T218622	1	Label	Engine Control
32	AT340550	1	Potentiometer	Engine Speed
33	R39554	1	Switch	Horn
34	T55501	1	Cap	Horn
35	14M7397	1	Lock Nut	M6
36	T226430	1	Tube	Bracket
37	T226427	1	Washer	-
38	R78035	1	Push Nut	-
39	AT467553	1	Toggle/Rocker Switch	Mobile Hydraulic Enable
40	T186793	1	Label	Gray Circle
41	AT419212	1	Cab Wiring Harness	Mobile Hydraulics
42	57M7631	1	Elec. Connector Housing	8 Pin Receptacle
43	57M8010	1	Electrical Connector Assy	8 Socket Plug
44	M111583	1	Plug	-
45	T332845	1	Label	Mobile Hydraulics
46	T332844	1	Label	LH Joystick Button Configuration
47	T355668	1	Panel	-
48	-	1	Part 48	MAKE FROM T59938; CTL 82.3 mm (0.27 ft)
49	AT434082	1	Fuse Box	Components On Separate Page, ORDER AT519622
49	AT481946	1	Fuse Box	Components On Separate Page, ORDER AT519622
49	AT519622	1	Fuse Box	Components On Separate Page
50	AT451691	2	Bracket	-
51	19M7862	4	Screw	M6 X 20
52	AT325667	1	Knob	-
53	AT467554	1	Toggle/Rocker Switch	Alarm Cancel Switch, SUB FOR AT347142
54	H77698	6	Tie Band	-
55	R44302	3	Tie Band	-
56	19M8553	4	Screw	M6 X 16
57	AT471493	1	Switch	HVAC Controls, SUB FOR RE43497
58	AT469365	1	Cab Wiring Harness	Components On Separate Page
58	AT483624	1	Cab Wiring Harness	Components On Separate Page
59	R44342	1	Nut	-
60	24H1441	1	Washer	1-1/64" X 1-1/2" X 0.048"

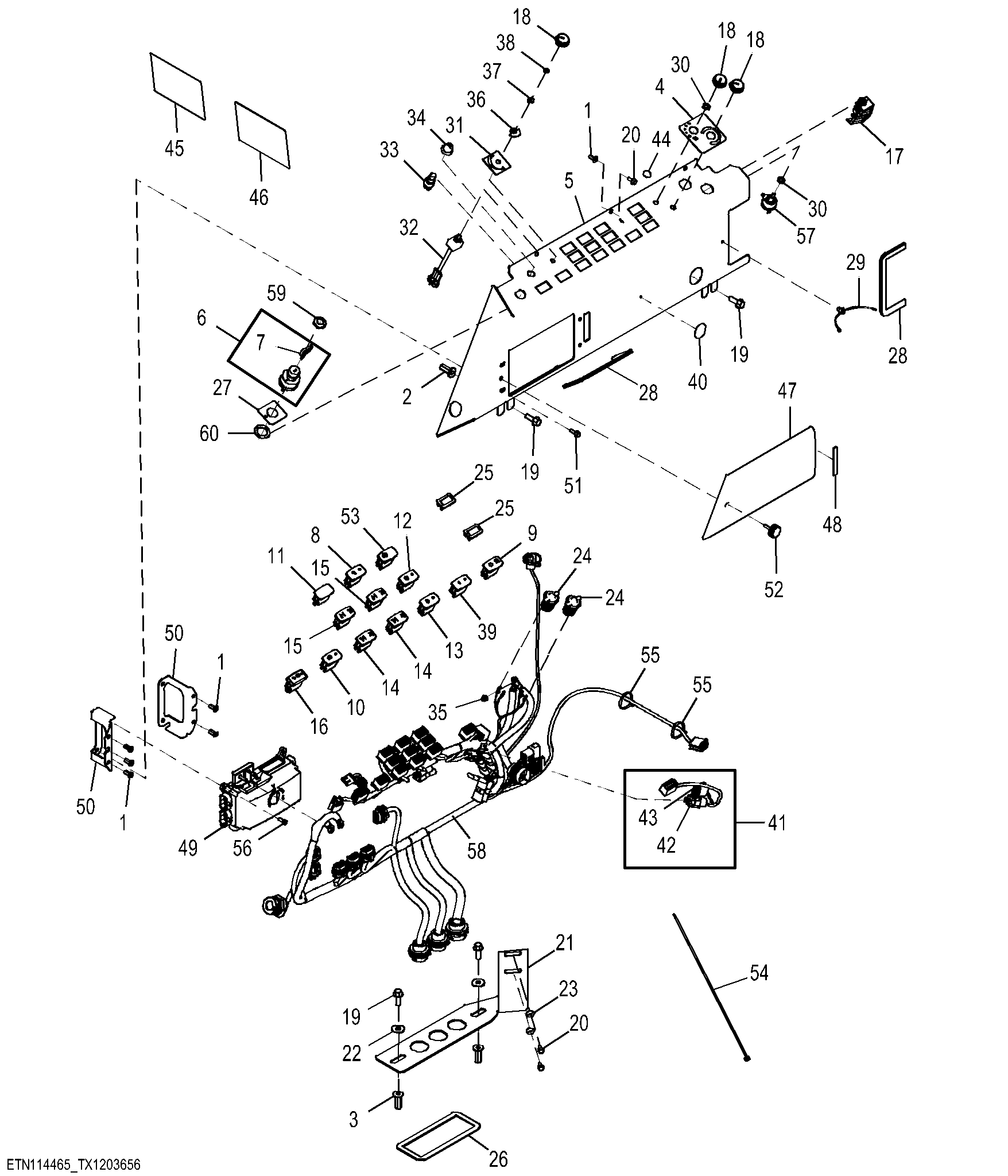

Console Controls, Mobile Hydraulics ( - 381570)
