Открытый узел

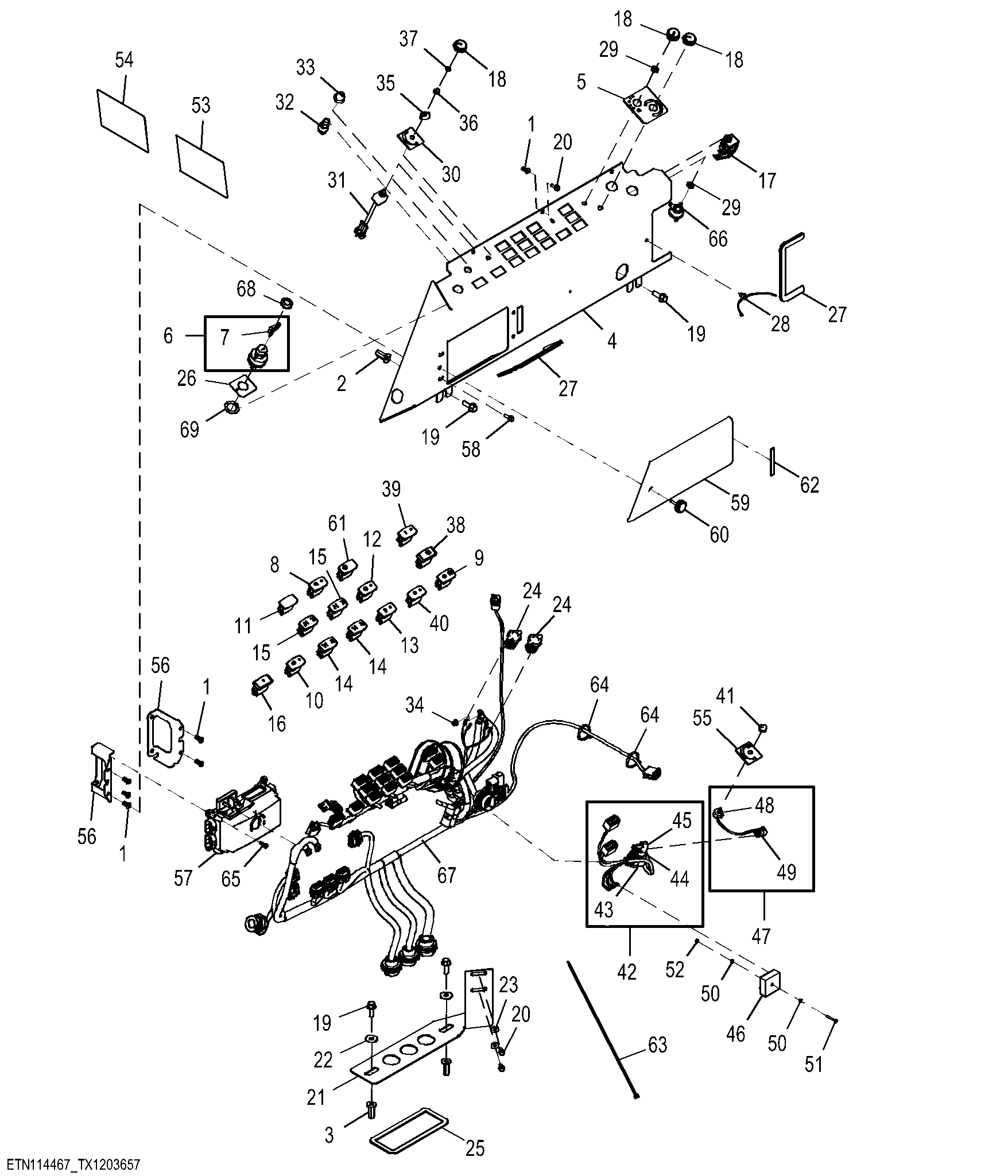

Console Controls, Circle Saw with Mobile Hydraulics ( - 381570)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T196077	8	Nut	-
2	T148409	2	Nut	-
3	T148411	2	Nut	-
4	T352565	1	Control Console	-
5	T233661	1	Label	HVAC Controls
6	AT195301	1	Switch	Starter
7	AT195302	1	Key	-
8	AT467544	1	Toggle/Rocker Switch	Work Light Switch, SUB FOR AT303862
9	AT467545	1	Toggle/Rocker Switch	A/C Switch, SUB FOR AT303865
10	AT467543	1	Toggle/Rocker Switch	Switch, Throttle Hold Mode (OFF - ON - AUTO), SUB FOR AT302732
11	AT467551	1	Toggle/Rocker Switch	Assembly Stabilizer Control, SUB FOR AT440387
12	AT467547	1	Toggle/Rocker Switch	Washer, SUB FOR AT347136
13	AT467546	1	Toggle/Rocker Switch	Wiper, SUB FOR AT347133
14	AT467549	2	Toggle/Rocker Switch	Stabilizer Switch, LH, SUB FOR AT347141
15	AT467548	2	Toggle/Rocker Switch	Stabilizer Switch, RH, SUB FOR AT347140
16	AT347137	1	Toggle/Rocker Switch	Pilot Enable
17	RE46742	1	Control	Temperature
18	AL76568	3	Knob	-
19	19M7786	4	Screw	M10 X 30
20	19M7775	5	Screw	M6 X 16
21	T233671	1	Bulkhead Wiring Harness	-
22	24M7296	2	Washer	10.500 X 30 X 2.500 mm
23	24M7139	2	Washer	6.400 X 18 X 1.600 mm
24	GY20126	2	Socket Outlet	-
25	-	1	Part 25	MAKE FROM T59938, CTL 690 mm(2.26ft)
26	T157172	1	Label	Key Start
27	-	2	Part 27	MAKE FROM T58056, CTL 366 mm(1.20ft)
28	T209627	1	Clamp	-
29	R44165	2	Lock Nut	-
30	T218622	1	Label	Hand Throttle
31	AT340550	1	Potentiometer	Engine Speed
32	R39554	1	Switch	Horn
33	T55501	1	Cap	Horn Switch
34	14M7397	1	Lock Nut	M6
35	T226430	1	Tube	-
36	T226427	1	Washer	-
37	R78035	1	Push Nut	-
38	AT467550	1	Toggle/Rocker Switch	Assembly Circle Saw Enable, SUB FOR AT350611
39	AT467552	1	Toggle/Rocker Switch	Assembly Auto Retract Enable Circle Saw, SUB FOR AT440388
40	AT467553	1	Toggle/Rocker Switch	Mobile Hydraulic Enable, SUB FOR AT440389
41	F121878	1	Grip	-
42	AT427726	1	Cab Wiring Harness	-
43	57M7631	1	Elec. Connector Housing	8 Pin Receptacle
44	57M8010	1	Electrical Connector Assy	8 Socket Plug
45	57M8020	1	Elec. Connector Housing	3 Pin Receptacle
46	AT419103	1	Relay Module	12 V
47	AT427650	1	Rheostat	15 Ohms
48	T242110	1	Rheostat	-
49	57M8018	1	Electrical Connector Assy	3 Socket Plug
50	24M7117	2	Washer	4.300 X 9 X 0.800 mm
51	19M7715	1	Cap Screw	M4 X 30
52	14M7100	1	Nut	M4
53	T354254	1	Label	LH Joystick Button Configuration
54	T332845	1	Label	Mobile Hydraulics, Window
55	T332840	1	Label	Circle Saw Advance
56	AT451691	2	Bracket	-
57	AT434082	1	Fuse Box	Components On Separate Page, ORDER AT481946
57	AT481946	1	Fuse Box	Components On Separate Page, ORDER AT519622
57	AT519622	1	Fuse Box	Components On Separate Page
58	19M7862	4	Screw	M6 X 20
59	T355668	1	Panel	-
60	AT325667	1	Knob	-
61	AT467554	1	Toggle/Rocker Switch	Alarm Cancel Switch, SUB FOR AT347142
62	-	1	Part 64	MAKE FROM T59938, CTL 82.3 mm (0.27 ft)
63	H77698	6	Tie Band	-
64	R44302	3	Tie Band	-
65	19M8553	4	Screw	M6 X 16
66	AT471493	1	Switch	HVAC Controls, SUB FOR RE43497
67	AT483624	1	Cab Wiring Harness	Components On Separate Page, SUB FOR AT469365
68	R44342	1	Nut	-
69	24H1441	1	Washer	1-1/64" X 1-1/2" X 0.048"

Console Controls, Circle Saw with Mobile Hydraulics ( - 381570)

Нет текстового описания
