Открытый узел

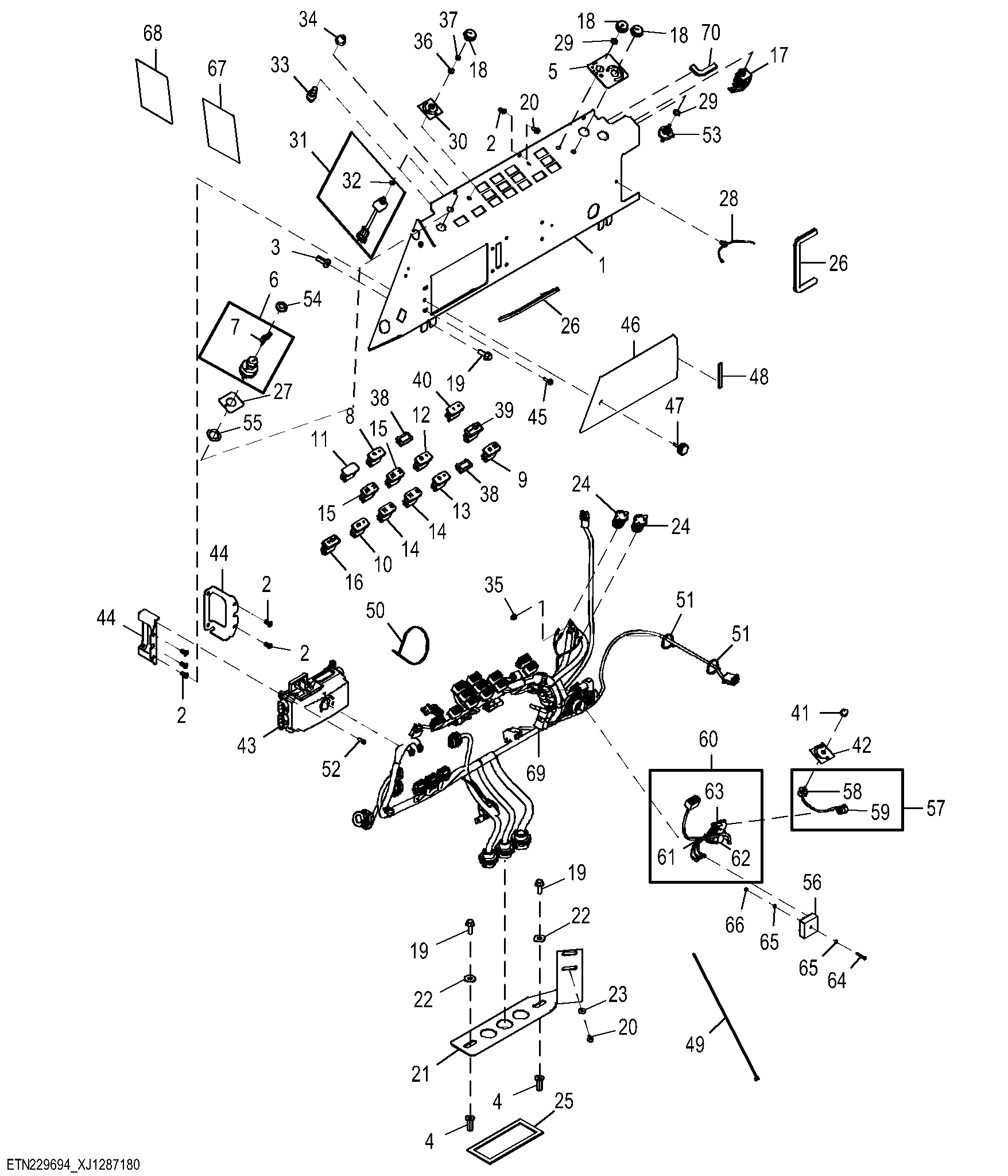

Console Controls, Circle Saw (381571 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT513447	1	Control Console	-
2	T196077	8	Nut	-
3	T148409	2	Nut	-
4	T148411	2	Nut	-
5	T233661	1	Label	HVAC Controls
6	AT195301	1	Switch	Starter
7	AT195302	1	Key	-
8	AT467544	1	Toggle/Rocker Switch	Work Light Switch
9	AT467545	1	Toggle/Rocker Switch	A/C Switch
10	AT467543	1	Toggle/Rocker Switch	Throttle Hold Mode (OFF - ON - AUTO)
11	AT467551	1	Toggle/Rocker Switch	Assembly Stabilizer Control
12	AT467547	1	Toggle/Rocker Switch	Washer
13	AT467546	1	Toggle/Rocker Switch	Wiper
14	AT467549	2	Toggle/Rocker Switch	Stabilizer Switch, LH
15	AT467548	2	Toggle/Rocker Switch	Stabilizer Switch, RH
16	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch
17	RE46742	1	Control	Temperature
18	AL76568	3	Knob	INCLUDES L78497, L76805, L76804
18	L78497	1	Insert	-
18	L76805	1	Insert	-
18	L76804	1	Knob	-
19	19M7786	4	Screw	M10 X 30
20	19M7775	5	Screw	M6 X 16
21	T233671	1	Bulkhead Wiring Harness	-
22	24M7296	2	Washer	10.500 X 30 X 2.500 mm
23	24M7139	2	Washer	6.400 X 18 X 1.600 mm
24	GY20126	2	Socket Outlet	-
25	-	1	Part 28	MAKE FROM T59938, CTL 690 mm (2.26ft)
26	-	2	Part 29	MAKE FROM T58056, CTL 366 mm (1.2ft)
27	T157172	1	Label	Key Start
28	T209627	1	Clamp	-
29	R44165	2	Lock Nut	-
30	T218622	1	Label	Hand Throttle
31	AT340550	1	Potentiometer	Engine Speed
32	AT312606	1	Sensor	-
33	R39554	1	Switch	Push Button Start Switch
34	T55501	1	Cap	-
35	14M7397	1	Lock Nut	M6
36	T226427	1	Washer	-
37	R78035	1	Push Nut	-
38	M115279	2	Plug	-
39	AT467550	1	Toggle/Rocker Switch	Assembly Circle Saw Enable
40	AT467552	1	Toggle/Rocker Switch	Assembly Auto Retract Enable Circle Saw
41	F121878	1	Grip	-
42	T332840	1	Label	Circle Saw Advance Control
43	AT481946	1	Fuse Box	Components On Separate Page, ORDER AT519622
43	AT519622	1	Fuse Box	Components On Separate Page
44	AT451691	2	Bracket	-
45	19M7862	4	Screw	M6 X 20
46	T355668	1	Panel	-
47	AT325667	1	Knob	-
48	-	1	Part 52	MAKE FROM T59938, CTL 82.3 mm (0.27ft)
49	H77698	1	Tie Band	-
50	H77698	3	Tie Band	-
51	R44302	5	Tie Band	-
52	19M8553	4	Screw	M6 X 16
53	AT471493	1	Switch	HVAC Controls
54	R44342	1	Nut	-
55	24H1441	1	Washer	1-1/64" X 1-1/2" X 0.048"
56	AT419103	1	Relay Module	Timer
57	AT427650	1	Rheostat	15 Ohms, Saw Speed
58	T242110	1	Rheostat	3 Socket Plug
59	57M8018	1	Electrical Connector Assy	Harvester Harness
60	AT423118	1	Cab Wiring Harness	Circle Saw Cab Harness
61	57M9032	1	Elec. Connector Housing	X117, 8 Socket Plug
61	R78065	4	Elec. Connector Terminal	-
61	R78069	4	Elec. Connector Cavity Plug	-
61	57M8011	1	Elec.Connect Locking Device	-
62	57M10868	1	Elec. Connector Housing	X116, 8 Pin Receptacle
62	R78066	7	Elec. Connector Terminal	-
62	R78069	1	Elec. Connector Cavity Plug	-
62	57M7680	1	Elec. Connector Terminal	-
63	R78066	2	Elec. Connector Terminal	-
63	57M7676	1	Elec. Connector Terminal	-
63	R78069	1	Elec. Connector Cavity Plug	-
63	57M8020	1	Elec. Connector Housing	X112, 3 Pin Receptacle
64	19M7715	1	Cap Screw	M4 X 30
65	24M7117	2	Washer	4.300 X 9 X 0.800 mm
66	14M7100	1	Nut	M4
67	T332844	1	Label	Left Hand (LH) Joystick Button Configuration
68	T332843	1	Label	Right Hand (RH) Joystick Delimber, Circle Saw
69	AT508609	1	Cab Wiring Harness	Components On Separate Page
70	-	1	Part 83	MAKE FROM T58056, CTL 366 mm (1.2ft)

Console Controls, Circle Saw (381571 - )
