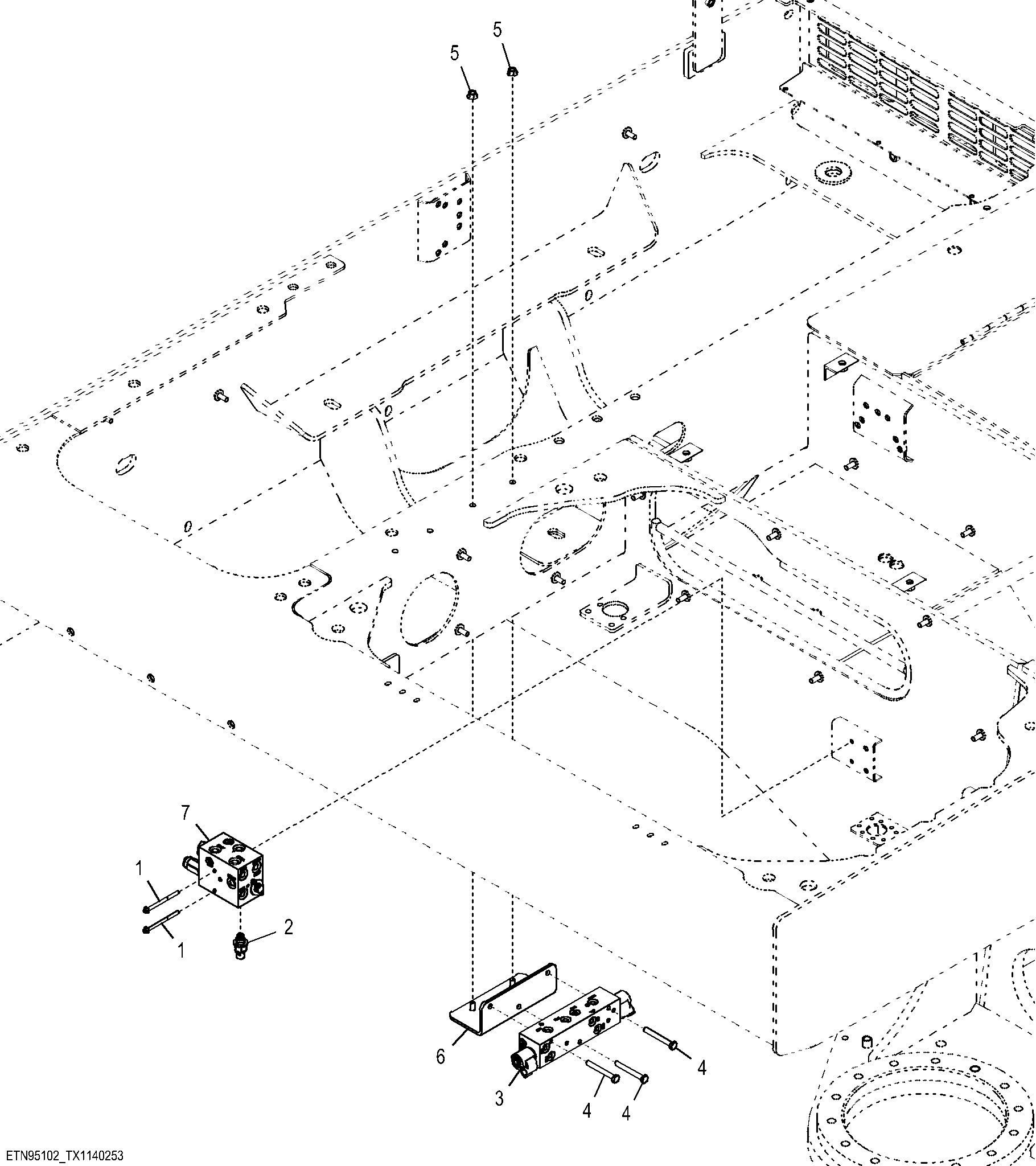

Small Hydraulic Valves, (Mobile Hydraulics) (254106 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R189128	2	Screw	Pilot Diverter
2	RE277647	1	Pressure Sensor	-
3	AT411382	1	Hydraulic Pressure Valve	Pilot Diverter Manifold, INCLUDES (2) AH209116, (2) AN400849, (2) AT333812, (2) AT427428, (2) AT427432, (2) H229535, (2) HXE21691 AND (2) N223292
3	AT333812	2	Solenoid Valve Coil	Not Illustrated
3	AT427428	2	Hydr./Pilot Control Valve	Not Illustrated
3	AT427432	2	Seal Kit	Not Illustrated
3	N223292	2	Nut	Coil Not Illustrated
3	AH209116	2	Seal Kit	Not Illustrated
3	AN400849	2	Solenoid Hydraulic Valve	Not Illustrated
3	H229535	2	Orifice	Not Illustrated
3	HXE21691	2	Drain Plug	Not Illustrated
4	19M7913	3	Screw	M8 X 90
5	14M7296	2	Flange Nut	M10
6	AT423115	1	Bracket	-
7	AT411393	1	Manifold	Pilot Shutoff, INCLUDES (4) T204128, (2) AT224873, AN279605, AT426518, KV25678, RE315755 AND T347713
7	AN279605	1	Seal Kit	Pressure Reducing Valve Not Illustrated
7	AT224873	2	Seal Kit	Not Illustrated
7	AT426518	1	Hydraulic Pressure Valve	Reducing Not Illustrated
7	KV25678	1	Solenoid Valve	Not Illustrated
7	RE315755	1	Plug	Cavity Plug For Solenoid Valve Not Illustrated
7	T204128	4	Screw	Not Illustrated
7	T347713	1	Orifice	Not Illustrated

Small Hydraulic Valves, (Mobile Hydraulics) (254106 - )

Нет текстового описания
