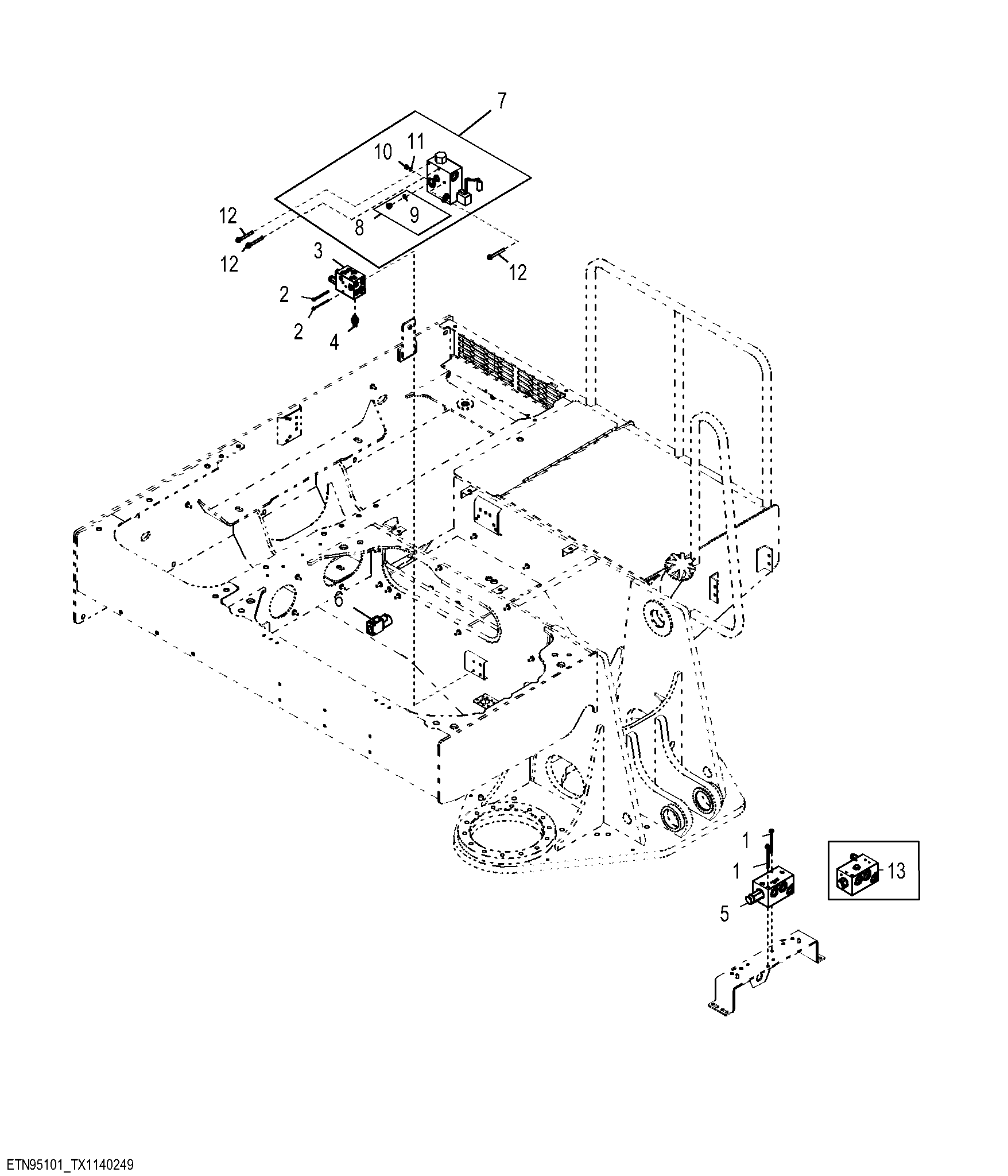

Small Hydraulic Valves,Circle Saw (254106 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8006	2	Screw	M8 X 120
2	R189128	2	Screw	-
3	T204128	4	Screw	-
3	T347713	1	Orifice	Disc, 0.109 ID, .557 OD
3	RE315755	1	Plug	For Solenoid Valve
3	KV25678	1	Solenoid Valve	-
3	AT426518	1	Hydraulic Pressure Valve	Pressure Reducing Valve
3	AT224873	2	Seal Kit	-
3	AN279605	1	Seal Kit	Pressure Reducing Valve
3	AT411393	1	Manifold	Pilot Shutoff
4	RE277647	1	Pressure Sensor	-
5	AT457429	1	Control Valve	Hydraulic Diverter, ALSO ORDER AT463922, AT459066, AT458807, AT458806, AT457937
5	AT442052	1	Hydr./Pilot Control Valve	-
5	AT442583	1	Seal Kit	-
6	AT302919	1	Solenoid Valve	-
6	AT333815	1	Solenoid Valve Coil	-
6	T181306	1	Nut	-
6	AT224864	1	Seal Kit	-
6	AT413566	1	Manifold	Delimber Manifold
7	F125848	1	Valve	-
8	AT112025	1	Drain Plug	Includes O-Ring
9	R47150	1	O-Ring	-
10	AT49216	1	Fitting Plug	Detent
11	T70177	1	O-Ring	-
12	19M7811	3	Screw	M10 X 90
13	AT385155	1	Control Valve	Hydraulic Diverter, NLA; ORDER AT457429
13	AT380906	1	Hydr./Pilot Control Valve	-
13	AT380908	1	Hydr./Pilot Control Valve	-
13	AT381101	1	Seal Kit	-
13	AT381102	1	Seal Kit	-
13	T279144	1	Orifice	-

Small Hydraulic Valves,Circle Saw (254106 - )
