Main Control Valve, 14 Pass Manifold (Circle Saw With Mobile Hydraulics) (254106 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT411390	1	Valve	-
2	19M7819	2	Screw	M12 X 90
3	19M7810	2	Screw	M10 X 80
4	24M7613	8	Washer	13.500 X 57 X 5 mm
5	AN206439	4	Isolator	-
6	R70663	2	Washer	-
7	A31867	2	Lock Nut	-
8	T105740	2	Washer	-
9	A51212	2	Lock Nut	-
10	AT425761	1	Valve	Swing Components Listed On Separate Page
11	AT425760	1	Valve	Separator Components Listed On Separate Page
12	AT425758	1	Valve	Travel Components Listed On Separate Page
13	AT425751	1	Valve	Grapple Clamp Components Listed On Separate Page
14	AT425752	1	Valve	Stick Components Listed On Separate Page
15	AT425755	1	Valve	Boom Components Listed On Separate Page
16	AT425756	1	Valve	Middle Inlet Components Listed On Separate Page
17	AT425757	1	Valve	Stabilizers Components Listed On Separate Page
18	AT425759	1	Valve	Grapple Rotate Components Listed On Separate Page
19	AT425754	1	Valve	Circle Saw, Advance/Retreat Components Listed On Separate Page
20	AT425753	1	Valve	Buck Board Components Listed On Separate Page
21	AT425764	1	Valve	Steer Components Listed On Separate Page
22	AT425762	1	Valve	Outlet Components Listed On Separate Page
23	T237314	1	Nut	Kit
24	AT427242	1	Tie Rod Assembly	Includes 3 Quantity of Tie Rod Assembly, Tie Rod Kit

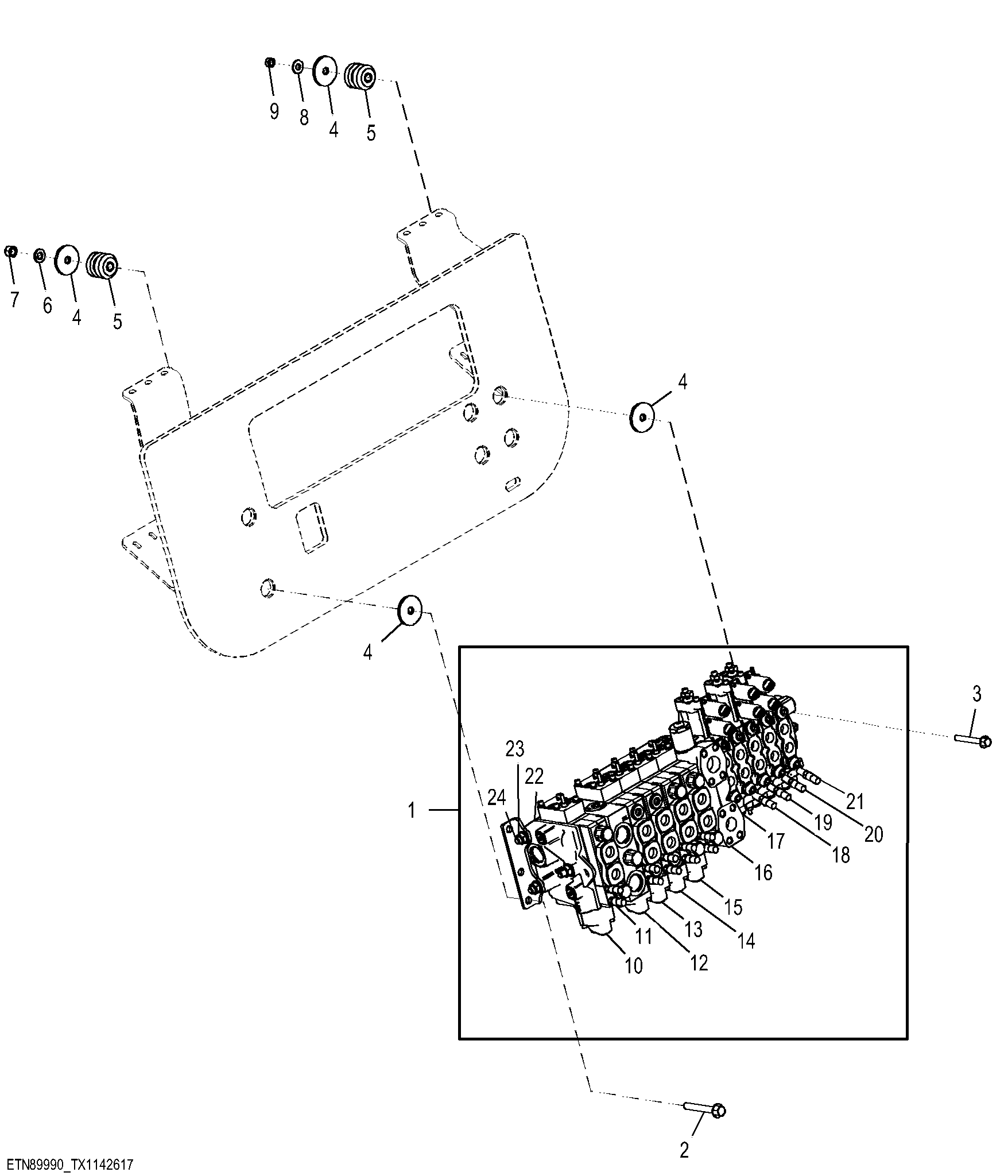

Main Control Valve, 14 Pass Manifold (Circle Saw With Mobile Hydraulics) (254106 - )
