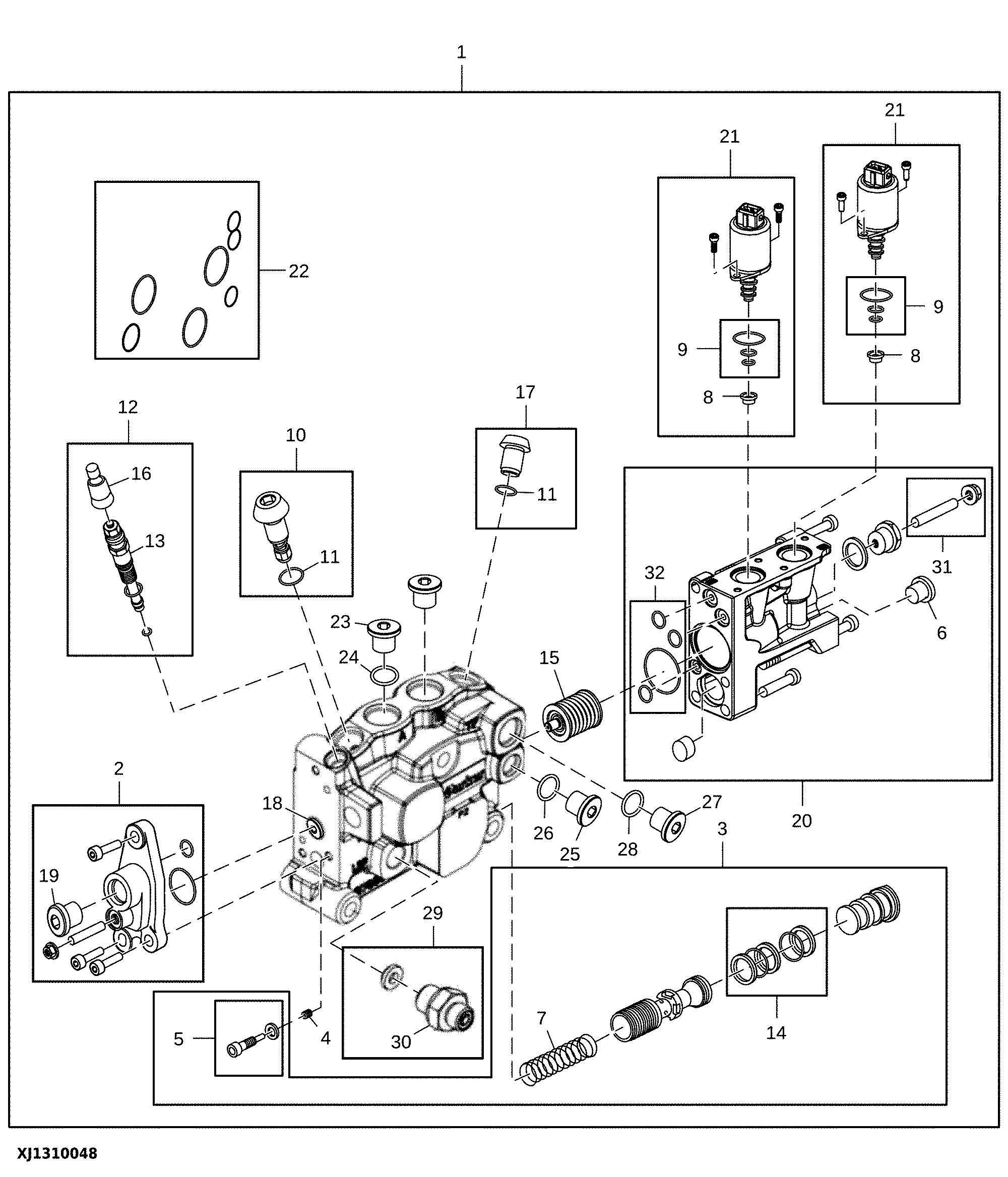

Knife Valve Section, 8 Section, Delimber (254106 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT418629	1	Hyd Actuated Control Valve	Knife Section
2	AT350299	1	Cap	-
2	AT425021	1	Seal Kit	EC2, A Side
3	AT350315	1	Compensator	Blue
3	F433696	1	Compensator	Green
4	AT425025	1	Hydraulic Restrictor	0.8 mm
5	AT425026	1	Plug Kit	-
6	AT384748	1	Plug Kit	-
7	AT464576	1	Spring Kit	-
8	AT425289	1	Hydraulic Restrictor	0.8 mm
8	AT424626	1	Hydraulic Restrictor	1.5 mm
9	AT424625	1	Seal Kit	-
10	AT427240	1	Hydraulic Pressure Valve	175 Bar, Port Relief Valve
11	AT425028	2	Seal Kit	-
12	F030954	1	Pressure Relief Valve	-
13	F433698	1	Seal Kit	-
14	F030955	1	Seal Kit	-
15	F034252	1	Spring	-
16	T237331	1	Seal Kit	-
17	T331049	1	Plug	-
18	T331052	1	Valve Spool	-
19	AT49216	1	Fitting Plug	-
20	AT425022	1	Cap Kit	EC2, B Side
21	AT427241	2	Elec.Proportional Valve	PS25, 12VDC, INCLUDES AT424626
22	T237327	1	Seal	Intersection Seal Kit
23	64H1019	1	Drain Plug	-
24	R26906	1	O-Ring	-
25	64H1017	1	Drain Plug	-
26	R26448	1	O-Ring	-
27	64H1018	1	Drain Plug	-
28	R26375	1	O-Ring	-
29	AT522653	1	Fitting Kit	-
30	AT522654	1	Fitting	INCLUDES T452855, T452866 AND T77814
30	T452855	1	Adapter Fitting	-
30	T452866	1	O-Ring	-
30	T77814	1	O-Ring	-
31	T237315	1	Socket Head Screw	-
32	T237330	1	Seal Kit	B Side

Knife Valve Section, 8 Section, Delimber (254106 - )
