Открытый узел

Console Controls / Switches, Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T196077	9	Nut	-
2	T148409	2	Nut	-
3	T148411	2	Nut	-
4	T319160	1	Control Console	Side
5	T233661	1	Label	HVAC Controls
6	T248477	1	Plate	Cover
7	T232121	1	Plate	Cover
8	AT195301	1	Switch	-
9	AT195302	1	Key	-
10	AT303862	1	Toggle/Rocker Switch	Work Light, SUB FOR AT389129
11	AT303865	1	Toggle/Rocker Switch	A/C Switch, SUB FOR AT389128
12	AT302732	1	Toggle/Rocker Switch	Switch, Throttle Hold Mode (OFF - ON - AUTO), SUB FOR AT389207
13	AT440387	1	Toggle/Rocker Switch	Stabilizer Control, SUB FOR AT420740
14	AT347136	1	Toggle/Rocker Switch	Washer Switch, SUB FOR AT389159
15	AT347133	1	Toggle/Rocker Switch	Wiper Switch, SUB FOR AT389160
16	AT347141	2	Toggle/Rocker Switch	Stabilizer Switch, LH, SUB FOR AT389156
17	AT347140	2	Toggle/Rocker Switch	Stabilizer Switch, RH, SUB FOR AT389157
18	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch, SUB FOR AT389161
19	RE46742	1	Control	-
20	F003901	1	Washer	-
21	14H934	1	Nut	7/16"
22	RE43497	1	Switch	HVAC Controls
23	AL76568	3	Knob	-
24	T59423	3	Grommet	-
25	24M7138	16	Washer	5.300 X 15 X 1 mm
26	19M8834	8	Cap Screw	M5 X 45
27	28H1921	8	Bushing	0.269" X 0.405" X 1"
28	14M7375	8	Flange Nut	M5
29	19M7775	9	Screw	M6 X 16
30	21M7344	2	Screw	M6 X 25
31	19M7786	4	Screw	M10 X 30
32	T233671	1	Bulkhead Wiring Harness	-
33	24M7296	2	Washer	10.500 X 30 X 2.500 mm
34	24M7139	2	Washer	6.400 X 18 X 1.600 mm
35	GY20126	2	Socket Outlet	-
36	M115279	2	Plug	-
37	T332841	1	Label	Fuse Panel
38	T332842	1	Label	Relay
39	-	1	Part 39	Foam Electrical Bulkhead Seal, CTL 690 mm, MF T59938
40	T157172	1	Label	Key Start
41	-	1	Part 41	Edging, Sealing Trim, CTL 366 mm, MF T58056
42	T209627	1	Clamp	-
43	E46066	2	Nut	-
44	T218622	1	Label	Throttle Control
45	AT340550	1	Potentiometer	Engine Speed Gold
46	R39554	1	Switch	Horn
47	T55501	1	Cap	Horn
48	14M7397	1	Lock Nut	M6
49	T226430	1	Tube	Bracket
50	T226427	1	Washer	-
51	R78035	1	Push Nut	-
52	AT440389	1	Toggle/Rocker Switch	Mobile Hydraulics, Enable Switch, SUB FOR AT420405
53	T186793	1	Label	Gray Circle
54	AT419212	1	Cab Wiring Harness	Mobile Hydraulics
55	57M7631	1	Elec. Connector Housing	8 Pin Receptacle
56	57M8010	1	Electrical Connector Assy	8 Socket Plug
57	M111583	1	Plug	-
58	T332845	1	Label	Mobile Hydraulics
59	R44302	1	Tie Band	-
60	H77698	6	Tie Band	-
61	H77698	3	Tie Band	-
62	T332844	1	Label	-

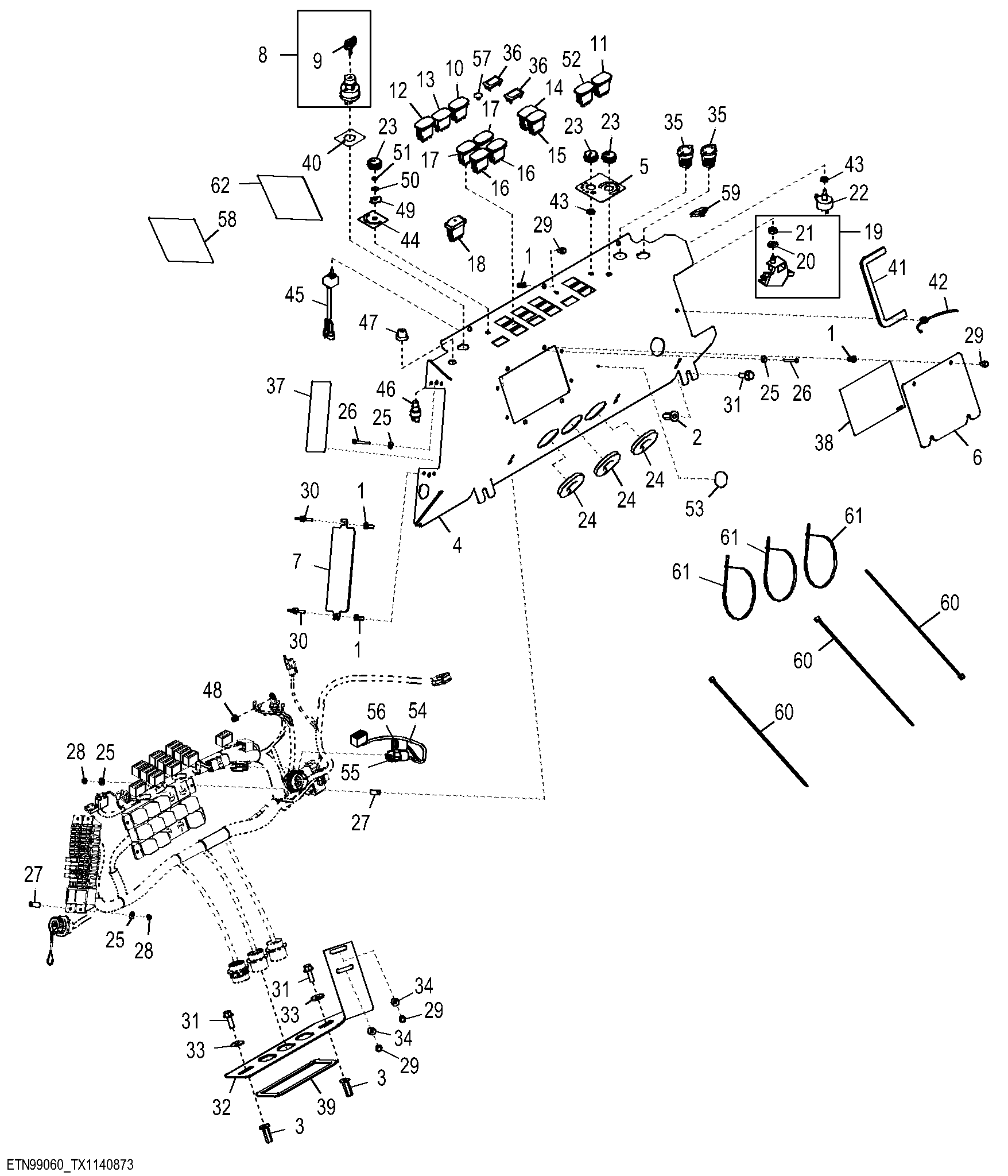

Console Controls / Switches, Mobile Hydraulics
